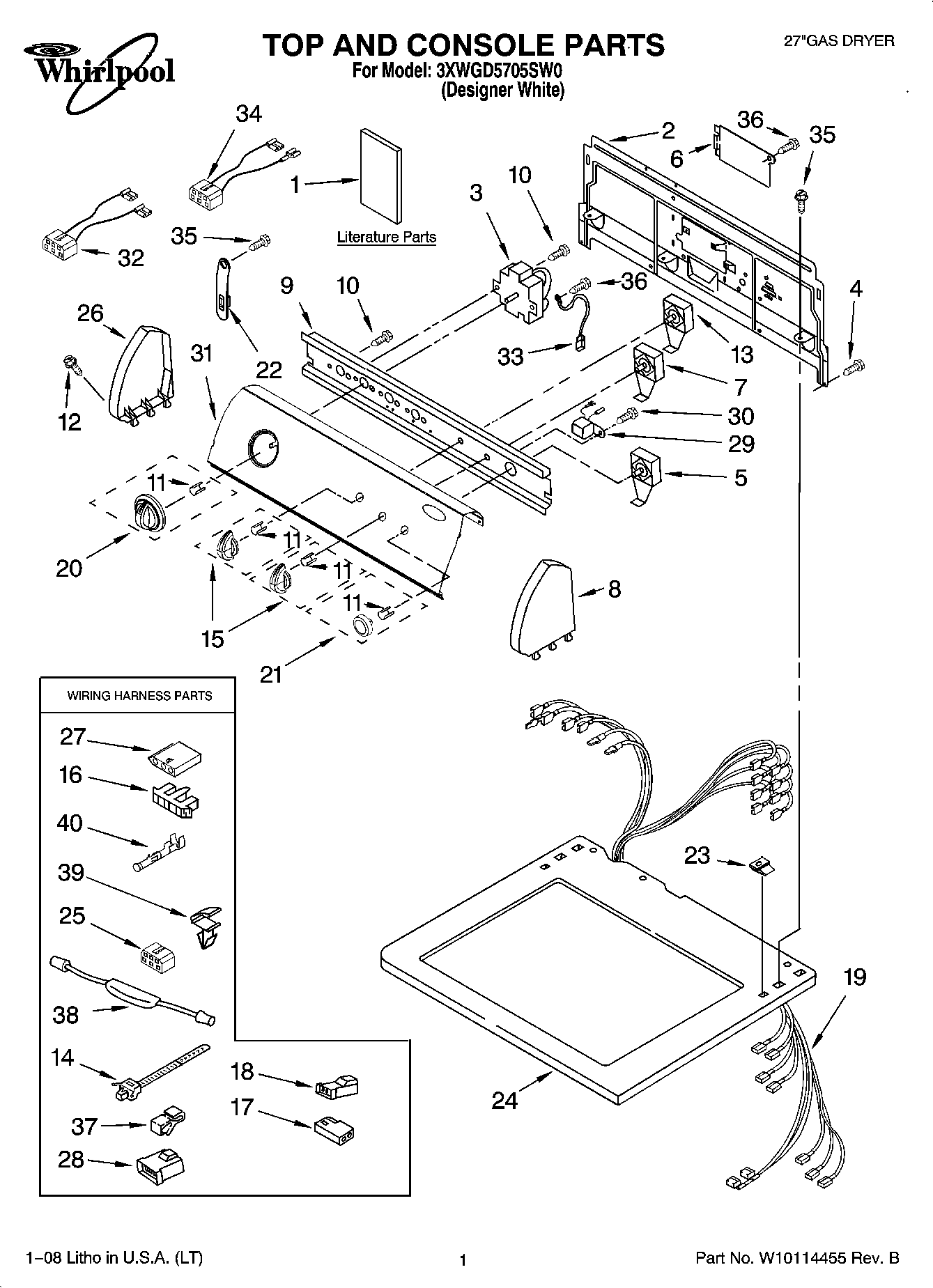

3XWGD5705SW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Guide, Use & Care
1	WPL 677818
1	Wiring Diagram
1	Instructions, Installation
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	285909 Whirlpool Rear Panel
3	WPW10116281 Whirlpool Timer
4	WP693995 Whirlpool Screw
5	WPW10112633 Whirlpool Relay Parts
6	WPW10119283 Whirlpool Terminal Cover
7	W10168170 Whirlpool Switch
8	W10820038 Whirlpool Endcap
9	Bracket, Control
11	WP8536939 Whirlpool Spring Clip
12	WP388326 Whirlpool Screw
13	WP3399639 Whirlpool Switch
14	WP3391018 Whirlpool Wire Tie
15	Knob, Control (3)
16	Connector, Timer
17	Receptacle, Latching (2-Way) (Uses Terminal 94614)
18	WP3403499 Whirlpool Connector
19	Harness, Wiring
20	TIMER KNOB ASSEMBLY
21	WPW10034790 Whirlpool Knob
22	WP8568314 Whirlpool Strap
23	WP357213 Whirlpool Hinge Stopper
24	Top
25	Block, Disconnect
27	3936144 Whirlpool Connector
28	WP3403498 Whirlpool Connector
29	Buzzer, Mini
30	WP90767 Whirlpool Screw
31	Panel, Control
32	Wire, Jumper Assembly
33	Wire, Ground
34	Wire, Jumper (Guard On/Off)
35	WP488729 Whirlpool Refrigerator Door Screw
36	303776 Whirlpool Dishwasher Screw
37	W10113937 Whirlpool Clamp
38	279872 Whirlpool Resistor
39	WP3394427 Whirlpool Clip
40	WP94614 Whirlpool Terminal
