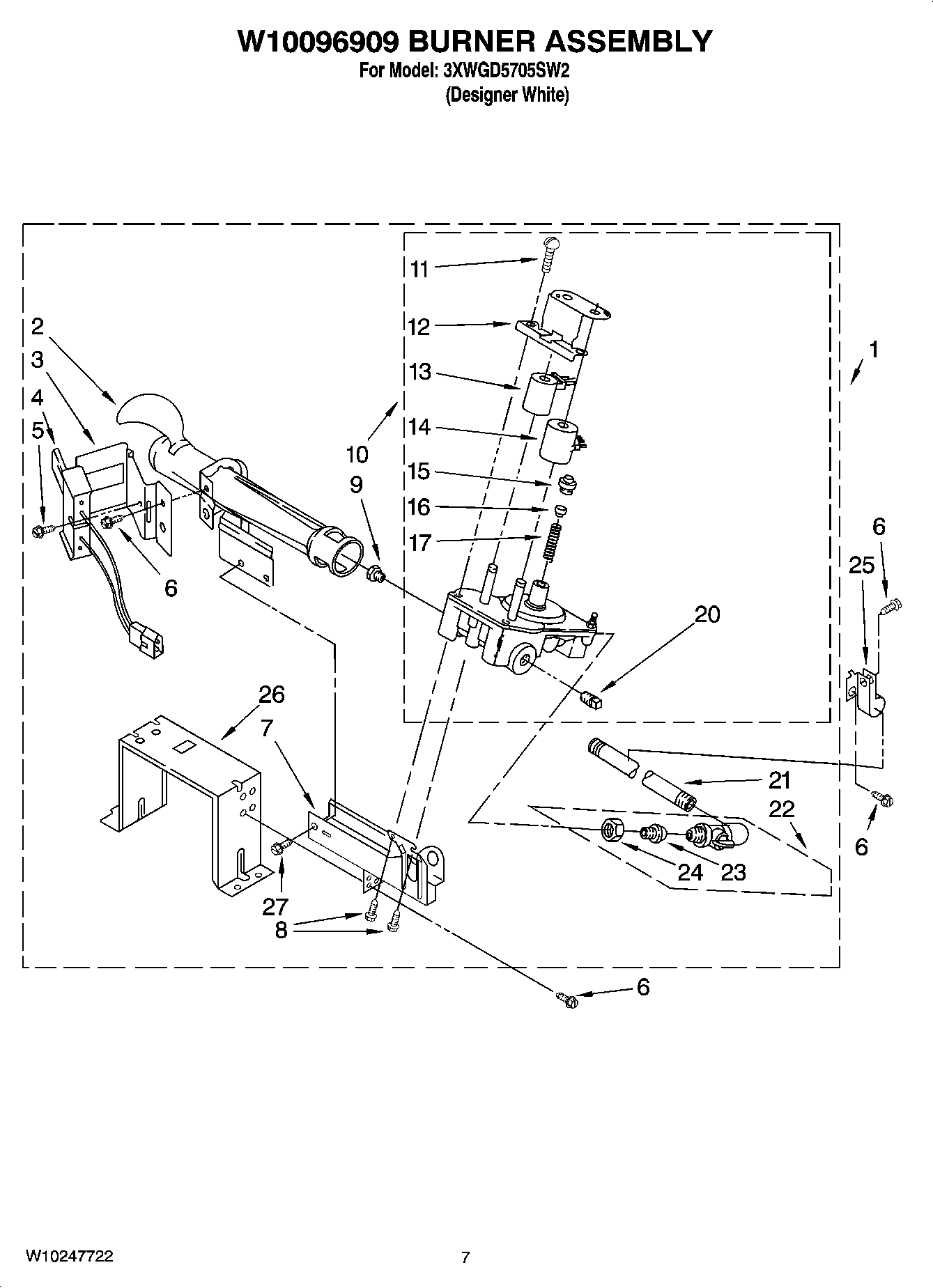

3XWGD5705SW2 04 – W10096909 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Following Parts Not Illustrated
	8212450A Whirlpool Dryer Rack Assembly
	4392067 Whirlpool Dryer Repair Kit
	W10402145 Whirlpool LP Gas Connection
	W11224254 Whirlpool Test Kit
	ACCESSORY PARTS
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
1	W10096909 Whirlpool Gas Burner
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	Screw, 10-16 x 1/2
7	Base, Burner
8	WP693995 Whirlpool Screw
9	ORIFICE, BURNER TYPE 1
10	WP8281918 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
13	WP307930 Whirlpool Coil Valve
14	WPY307931 Whirlpool Valve Coil
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
20	W10295523 Whirlpool Plug
21	W10097610 Whirlpool Pipe
22	697441 Whirlpool Valve
23	3393767 Whirlpool Pipe
24	Nut, Compression
25	3387561 Whirlpool Clamp
26	Bracket, Support
27	Screw, 10-16 x 1/2
