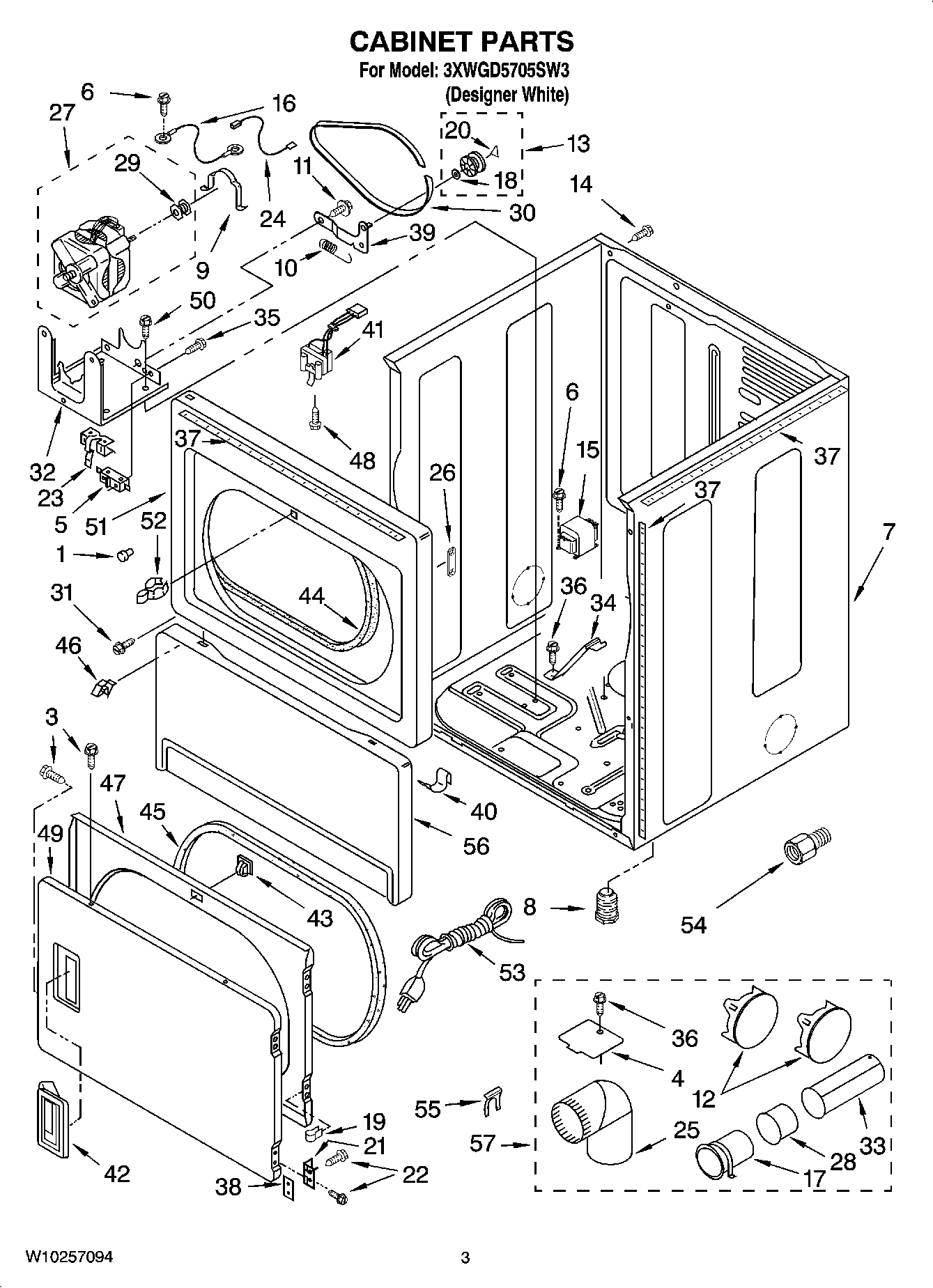

3XWGD5705SW3 02 – CABINET PARTS

3XWGD5705SW3 02 – CABINET PARTS

Written by

in

3XWGD5705SW3 02 – CABINET PARTS

Products

Position	Product
1	693152 Whirlpool Bumper
3	WP694091 Whirlpool Screw
4	WPW10354249 Whirlpool Cover
5	WP8318457 Whirlpool Switch Plug
6	W11676450 Whirlpool Screw
7	W11417441 Whirlpool Cabinet
8	49621 Whirlpool Leveling Feet
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	279640 Whirlpool Dryer Idler Pulley Kit
14	W10850756 Whirlpool Screw
15	W10851673 Whirlpool Transformer
16	Wire, Ground
17	WP8563747 Whirlpool Exhaust Pipe
18	WPW10121334 Whirlpool Washer
19	Nut, “U“ (4)
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	W11175815 Whirlpool Hinge
22	WP488627 Whirlpool Refrigerator Screw
23	WP8066120 Whirlpool Lever Assembly
24	Wire, Belt Switch
25	WPW10416072 Whirlpool Elbow
26	W10191265 Whirlpool Plug
27	W10416573 Whirlpool Drive Motor
28	WPW10331278 Whirlpool Exhaust Pipe
29	3402548 Whirlpool Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10891954 Whirlpool Screw
32	WP3387118 Whirlpool Base Assembly
33	WP8563749 Whirlpool Exhaust Pipe
34	W10181903 Whirlpool Bracket
35	3400934 Whirlpool Screw
36	WP693995 Whirlpool Screw
37	Seal, Foam
38	WP3390902 Whirlpool Clip
39	W10837240 Whirlpool Dryer Idler Pulley
40	WP297092 Whirlpool Clip
41	SWITCH-DOOR DRYER
42	3389522 Whirlpool Handle
43	279570 Whirlpool Dryer Door Latch Kit
44	WP3387242 Whirlpool Seal
45	WP3390735 Whirlpool Door Seal
46	WP3388229 Whirlpool Dryer Spring Clip
47	280083 Whirlpool Rear Door
48	WP3395530 Whirlpool Screw
49	W11663440 Whirlpool Door
50	SCREW
51	PANEL, FRONT (WHITE)
53	Cord, Power
54	WP8316063 Whirlpool Adapter
55	W11712577 Whirlpool Clip
56	WP3406797 Whirlpool Toe Panel
56	Optional Parts Not Included
57	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
