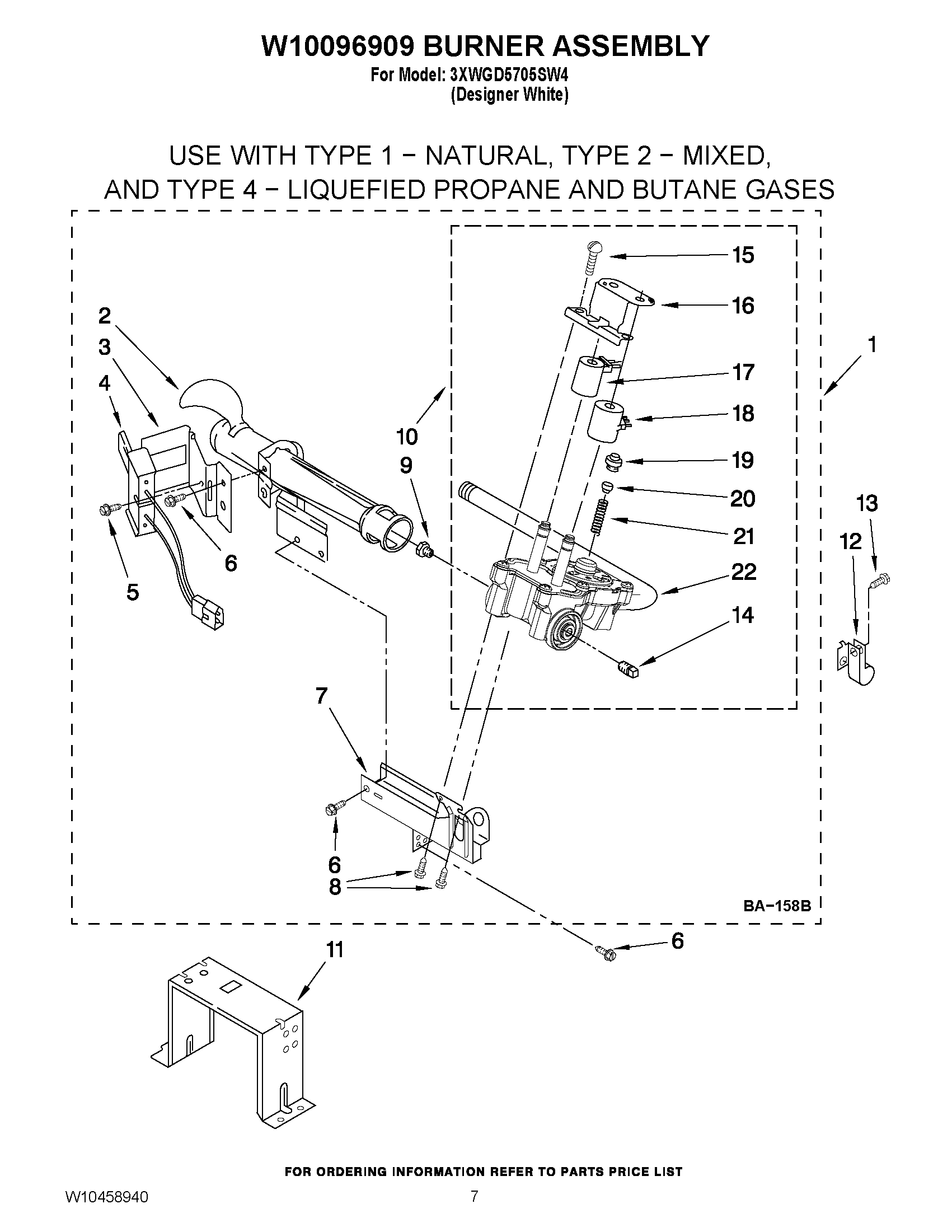

3XWGD5705SW4 04 – W10096909 BURNER ASSEMBLY

3XWGD5705SW4 04 – W10096909 BURNER ASSEMBLY

Written by

in

3XWGD5705SW4 04 – W10096909 BURNER ASSEMBLY

Products

PositionProduct
NIW10571757 Whirlpool Dryer LP Gas Conversion Kit
1W10096909 Whirlpool Gas Burner
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6Screw, 10-16 x 1/2
7Base, Burner
8WP693995 Whirlpool Screw
9ORIFICE, BURNER TYPE 1
10WP8281918 Whirlpool Gas Valve
11Bracket, Support
123978776 Whirlpool Bracket
13WP488729 Whirlpool Refrigerator Door Screw
14W10295523 Whirlpool Plug
15694421 Whirlpool Screw Assembly
16694538 Whirlpool Bracket
17WP307930 Whirlpool Coil Valve
18WPY307931 Whirlpool Valve Coil
19WP694424 Whirlpool Limiter
20WP694423 Whirlpool Regulator
21WP694422 Whirlpool Spring
22W10097610 Whirlpool Pipe
