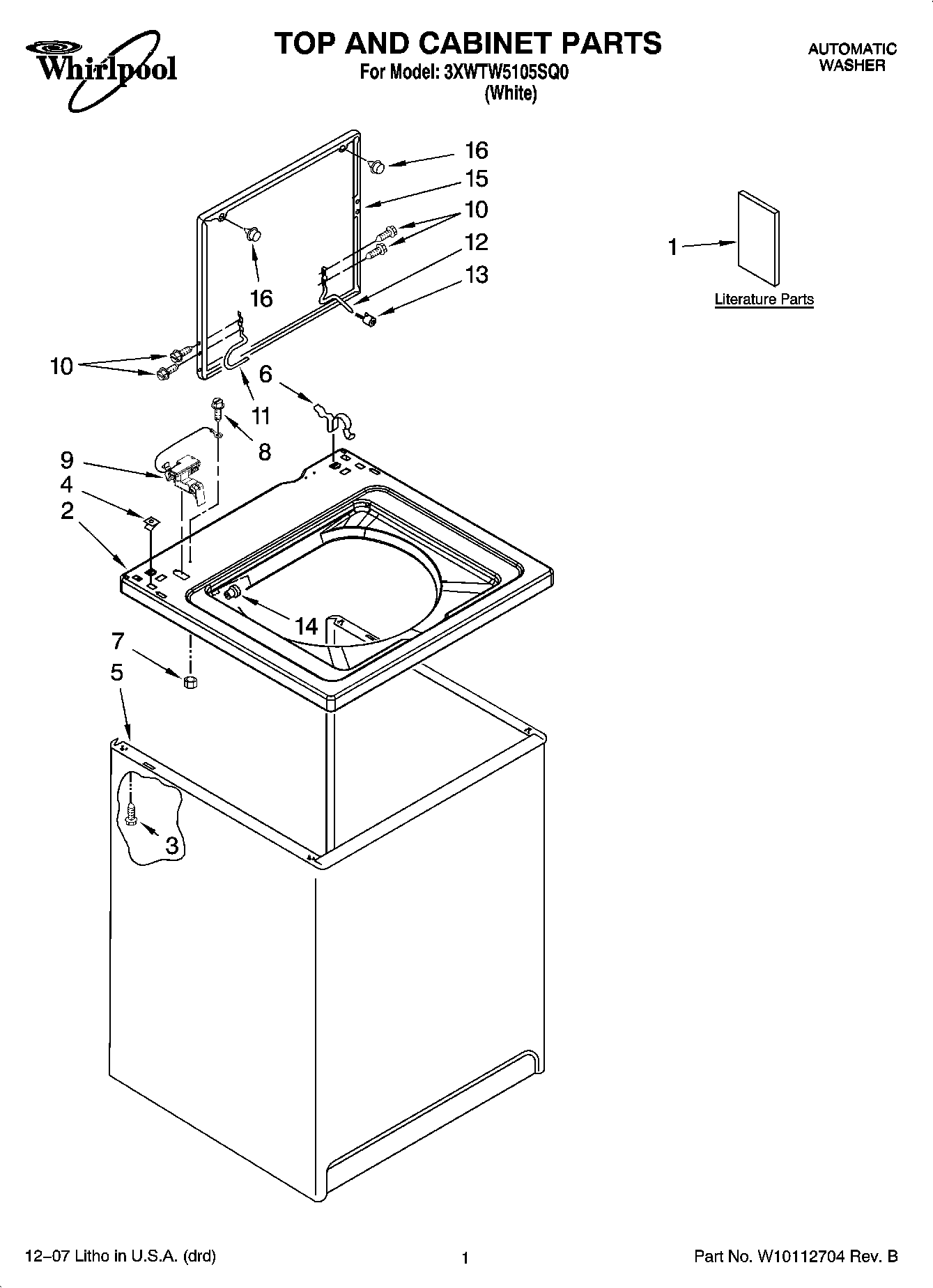

3XWTW5105SQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Wiring Diagram
1Installation Instructions
2Top
3WP3390631 Whirlpool Screw
4WP357213 Whirlpool Hinge Stopper
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
7W10080180 Whirlpool Nut
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10SCREW
118318088 Whirlpool Hinge Assembly
12WP54583 Whirlpool Hinge
13Bumper, Lid Hinge
14WP21258 Whirlpool Washer Lid Hinge Bearing
15Lid
16WP9724509 Whirlpool Bumper
