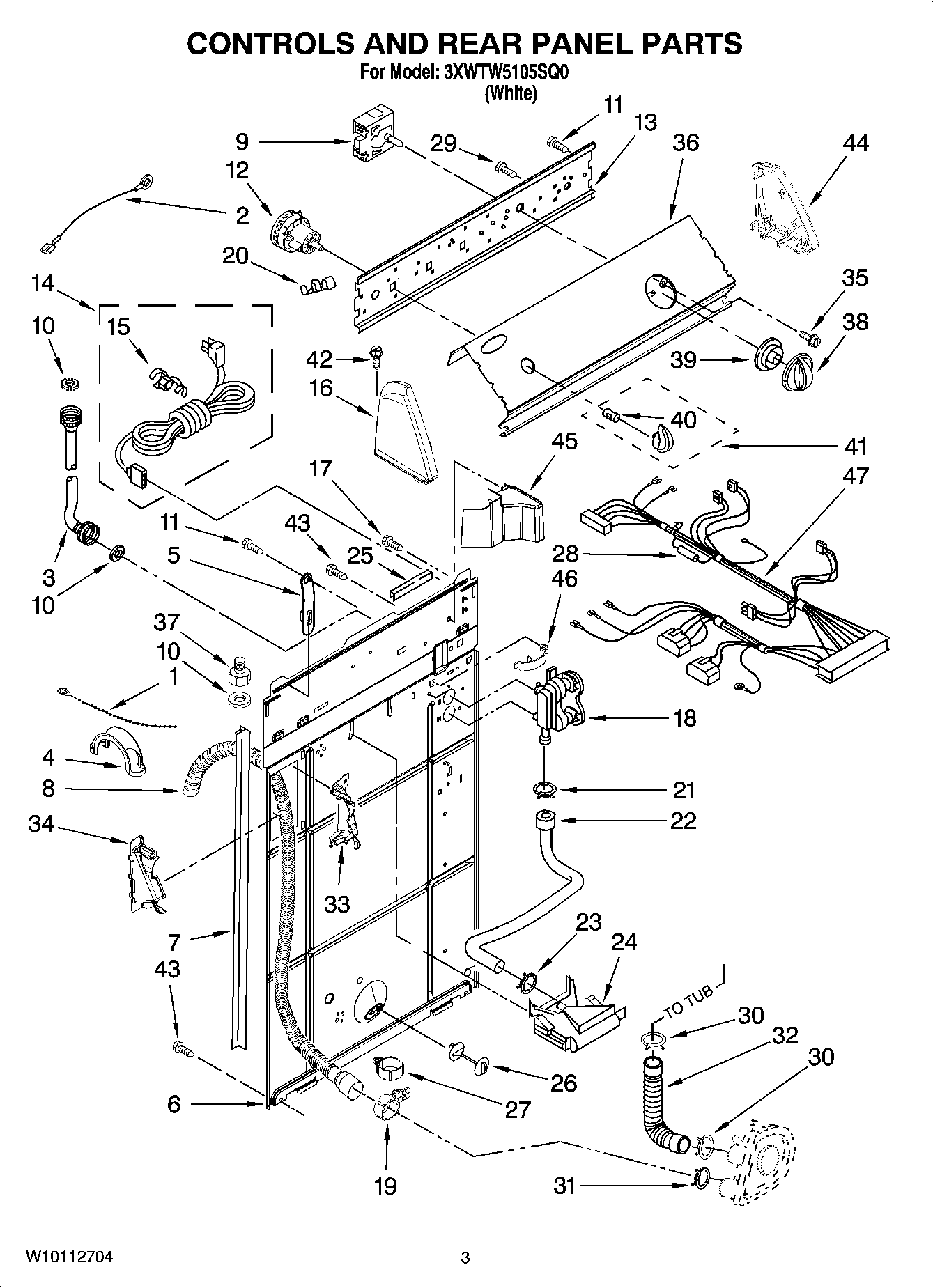

3XWTW5105SQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WPW10339879 Whirlpool Wire Tie
2	Wire, Ground
3	WPW10615831 Whirlpool Fill Hose
3	WPW10615809 Whirlpool Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WPW10163650 Whirlpool Timer
10	WP16123 Whirlpool Washer
11	WP90767 Whirlpool Screw
12	W10339228 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	W10111545 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3360397 Whirlpool Valve
19	8541668 Whirlpool Washer Clamp
20	W10113937 Whirlpool Clamp
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	WPW10111181 Whirlpool Fuse Assembly
29	3400073 Whirlpool Screw
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
34	WPW10096921 Whirlpool Hose
35	WP3400818 Whirlpool Screw
36	Panel, Console
37	WP3357397 Whirlpool Adapter
38	Knob, Timer
39	WP8566018 Whirlpool Dial Assembly
40	WP8536939 Whirlpool Spring Clip
41	Knob, Control
42	WP388326 Whirlpool Screw
43	WP3390631 Whirlpool Screw
44	W10820038 Whirlpool Endcap
45	Sh
46	Clip, Harness
47	Harness, Wiring (For Detail See Pages 9 & 10)
