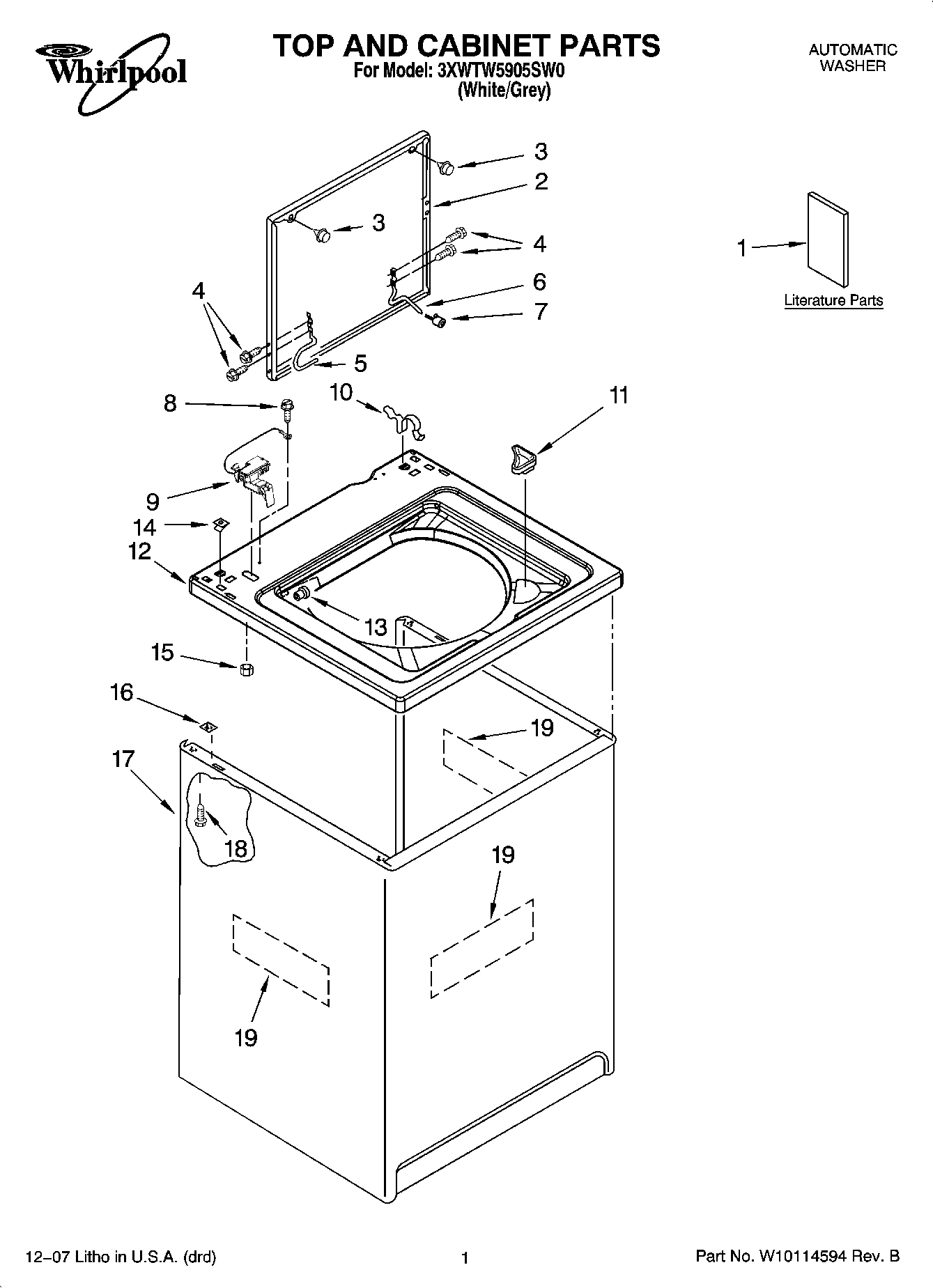

3XWTW5905SW0 01 – TOP AND CABINET PARTS

3XWTW5905SW0 01 – TOP AND CABINET PARTS

Written by

in

3XWTW5905SW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Wiring Diagram
1Use & Care Guide
1Installation Instructions
2Lid
3WP9724509 Whirlpool Bumper
4SCREW
58318088 Whirlpool Hinge Assembly
6WP54583 Whirlpool Hinge
7Bumper, Lid Hinge
8WP3351614 Whirlpool Screw
9WP8318084 Whirlpool Washer Lid Switch Assembly
10WP62780 Whirlpool Cabinet Clip
11WP3362952 Whirlpool Bezel
12Top (White)
13WP21258 Whirlpool Washer Lid Hinge Bearing
14WP357213 Whirlpool Hinge Stopper
15W10080180 Whirlpool Nut
16WP62750 Whirlpool Spacer
1763424 Whirlpool Cabinet Assembly
18WP3390631 Whirlpool Screw
19Cabinet – Sound Damper
