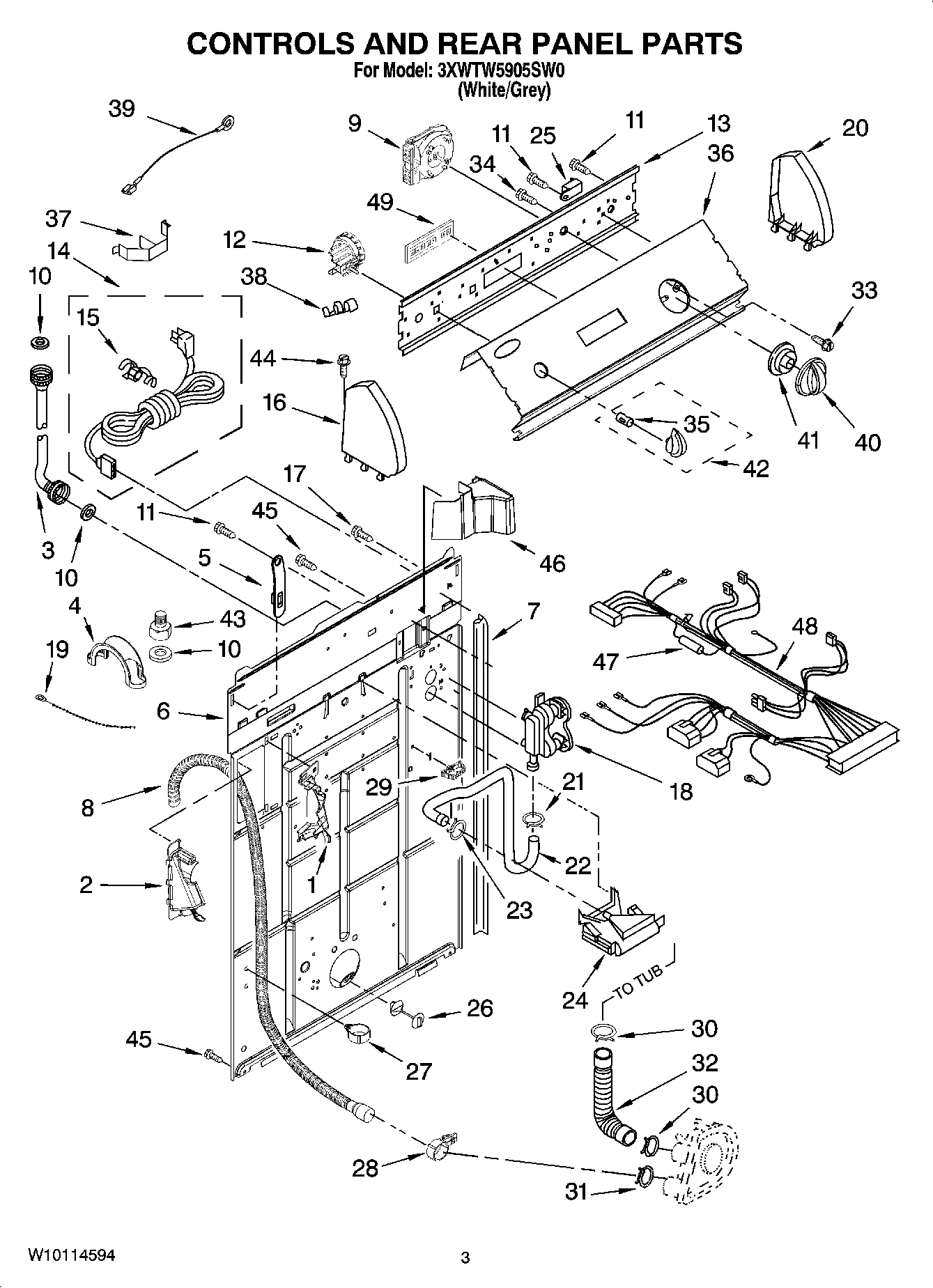

3XWTW5905SW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
2	WPW10096921 Whirlpool Hose
3	WPW10615809 Whirlpool Fill Hose
3	WPW10615831 Whirlpool Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WPW10222216 Whirlpool Timer
10	WP16123 Whirlpool Washer
11	WP90767 Whirlpool Screw
12	W10339250 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	W10111545 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3360397 Whirlpool Valve
19	WPW10339879 Whirlpool Wire Tie
20	W10820038 Whirlpool Endcap
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	3952439 Whirlpool Buzzer
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
29	Clip, Harness
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	WP3400818 Whirlpool Screw
34	3400073 Whirlpool Screw
35	WP8536939 Whirlpool Spring Clip
36	Panel, Console
37	Clip, Harness & Pressure Hose
38	W10113937 Whirlpool Clamp
39	Wire, Ground
40	Knob, Timer
41	WP8566018 Whirlpool Dial Assembly
42	Knob, Control (3)
43	WP3357397 Whirlpool Adapter
44	WP388326 Whirlpool Screw
45	WP3390631 Whirlpool Screw
46	Sh
47	WPW10111181 Whirlpool Fuse Assembly
48	Harness, Wiring (For Detail See Pages 9 & 10)
49	Switch, Clean Touch (7 Pad)
