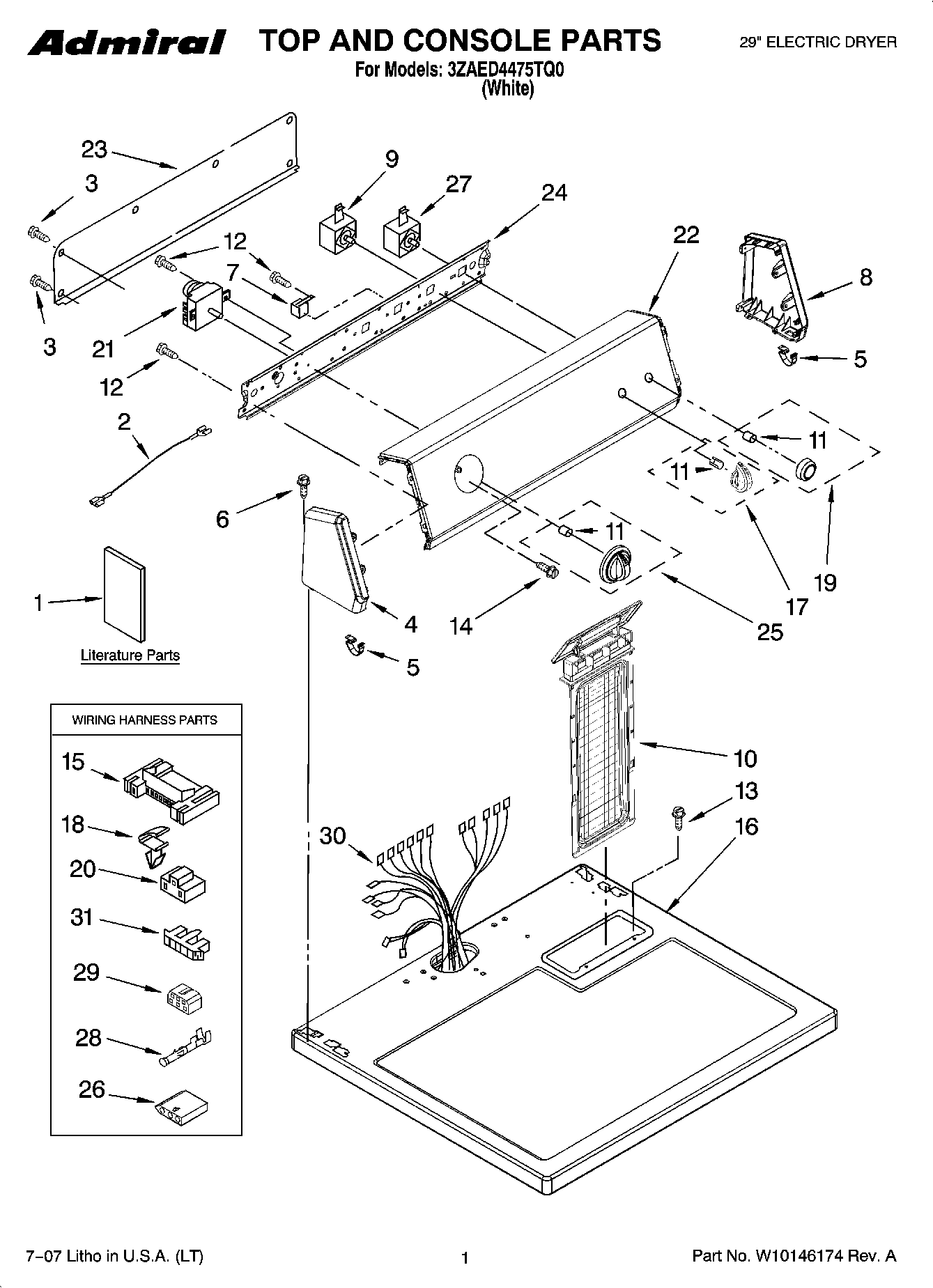

3ZAED4475TQ0 01 – TOP AND CONSOLE PARTS

3ZAED4475TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

3ZAED4475TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10127419
1MAY W10127418
1MAY W10119073
2Wire, Jumper (Black)
3Screw
4Cap, End (L.H.) (White)
5MAY 8312709
6Screw, Console
7MAY 3952439
8Cap, End (R.H.) (White)
9Switch, Temperature
10Screen, Lint (White)
11CLIP, SPRING
12MAY 8533971
13SCREW
14MAY 8533951
15CONNECTOR (MOTOR)
16MAY 8559800
17Knob, Control (1) (White)
18CLIP, HARNESS
19Knob, Push-To-Start (White)
20Connector (PTS) Relay
21MAY W10119072
22MAY W10118292
23MAY 8274261
24Bracket-Control
25Timer Knob Assembly (White)
26MAY 3936144
27MAY W10112633
28Terminal
29Connector
30MAY 8529855
31Connector-Timer
