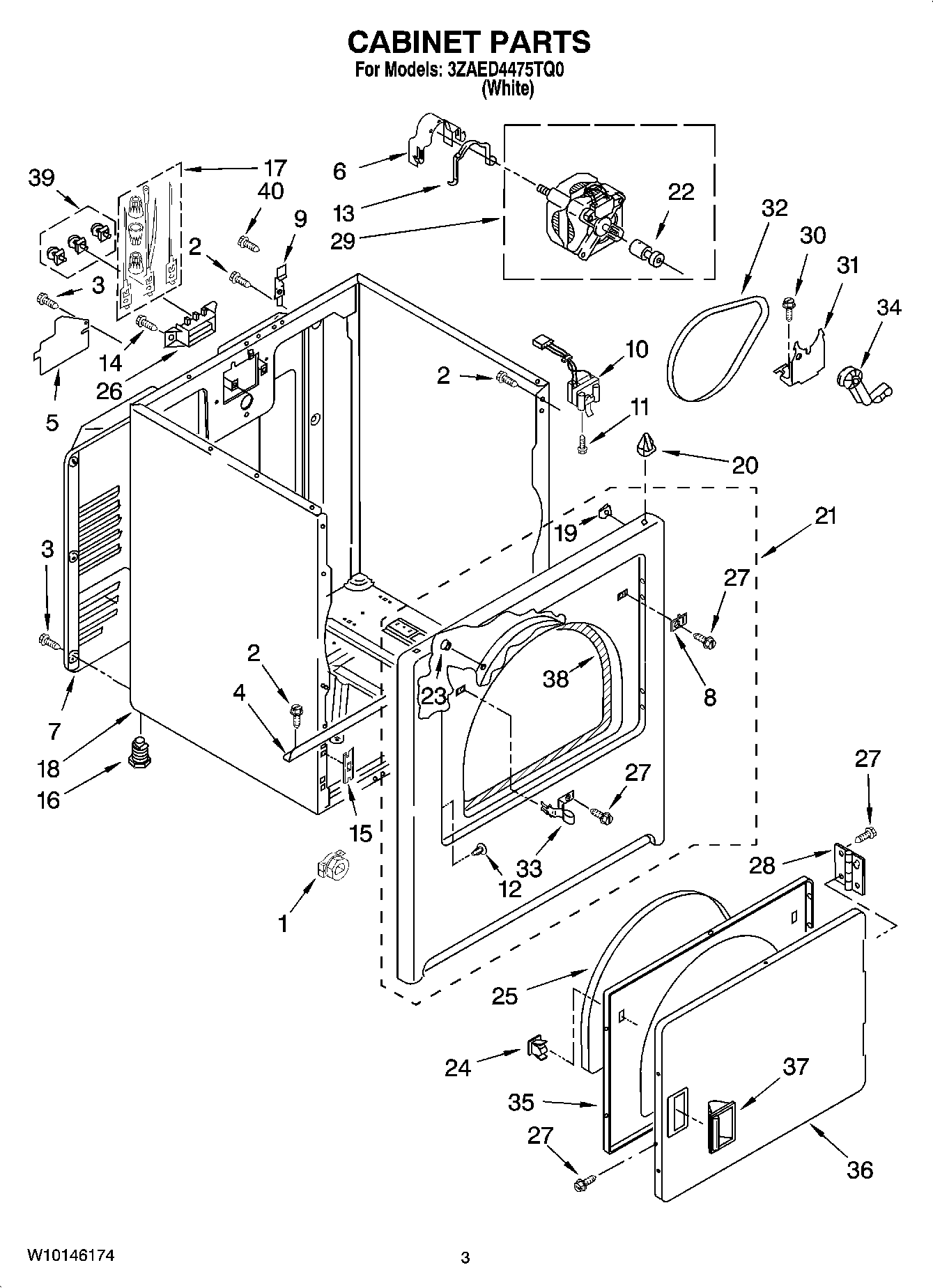

3ZAED4475TQ0 02 – CABINET PARTS

Products

Position	Product
1	Clip, Strain Relief
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	PLUG-STRIKE
9	Hinge, Top
10	Switch, Door
11	SCREW
12	PLUG, HINGE HOLES
13	MAY 660658
14	SCREW, 10-16 X 1/2
15	MAY 3394083
16	MAY 279810
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	Panel, Front (White)
22	MAY 685018
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
26	MAY 3397659
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	Motor Assembly, 60 Hz.
30	BOLT
31	MAY 348780
32	MAY 8066065
33	Strike, Door
34	IDLER ASSEMBLY
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	MAY 279393
40	Screw, 8-18 x 5/8 (External Ground)
