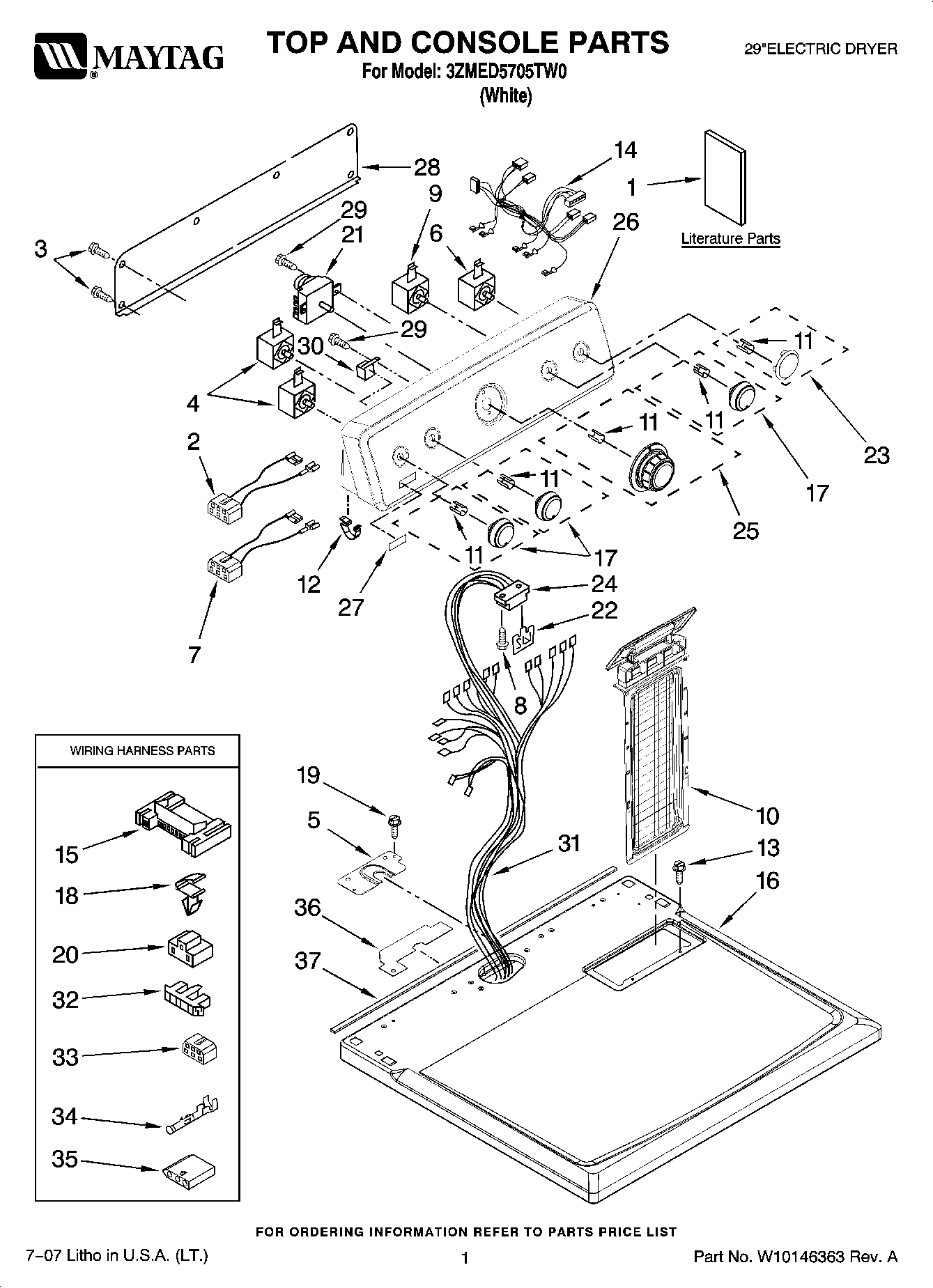

3ZMED5705TW0 01 – TOP AND CONSOLE PARTS

3ZMED5705TW0 01 – TOP AND CONSOLE PARTS

Written by

in

3ZMED5705TW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10119075
1	MAY W10127416
2	MAY W10124166
3	Screw
4	MAY 3405156
5	MAY 8565981
6	MAY W10119074
7	MAY W10166561
8	SCREW
9	Switch, Temperature
10	Screen, Lint
11	CLIP, SPRING
12	MAY 8312709
13	SCREW
14	MAY W10110861
15	CONNECTOR (MOTOR)
16	MAY W10112597
17	Knob, Control (3)
18	CLIP, HARNESS
19	Screw, 8-18 x 3/4
20	Connector (PTS) Relay
21	MAY 3406282
22	MAY 8558178
23	MAY W10110037
24	MAY 3391885
25	Knob, Timer
26	MAY W10118293
27	MAY W10112569
28	Panel, Rear
29	MAY 8533971
30	MAY 3952439
31	MAY W10119076
32	Connector-Timer
33	Connector
34	Terminal
35	MAY 3936144
37	MAY W10118608
