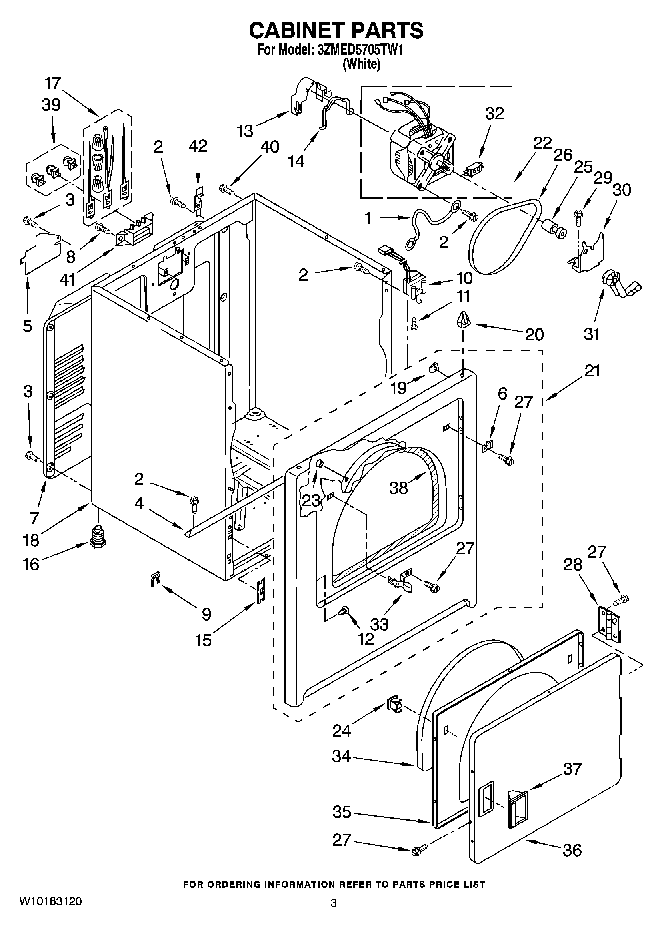

3ZMED5705TW1 02 – CABINET PARTS

Products

Position	Product
1	Wire, Ground
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	PLUG-STRIKE
7	MAY 3396805
8	SCREW, 10-16 X 1/2
9	Clip, Strain Relief
10	MAY 3406109
11	SCREW
12	PLUG, HINGE HOLES
13	Clamp, Motor (With Shield)
14	MAY 660658
15	MAY 3394083
16	MAY 279810
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	Panel, Front (White)
22	PULLEY, 50 HZ.
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 685018
26	MAY 8066065
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	BOLT
30	MAY 348780
31	IDLER ASSEMBLY
32	Switch, Motor
33	Strike, Door
34	MAY 3405246
35	Door, Rear
36	DOOR FRONT
37	Handle, Door
38	MAY 3406129
39	MAY 279393
40	Screw, 8-18 x 5/8 (External Ground)
41	MAY 3397659
42	Hinge, Top
