40462051D 03 – BODY

40462051D 03 – BODY

Written by

in

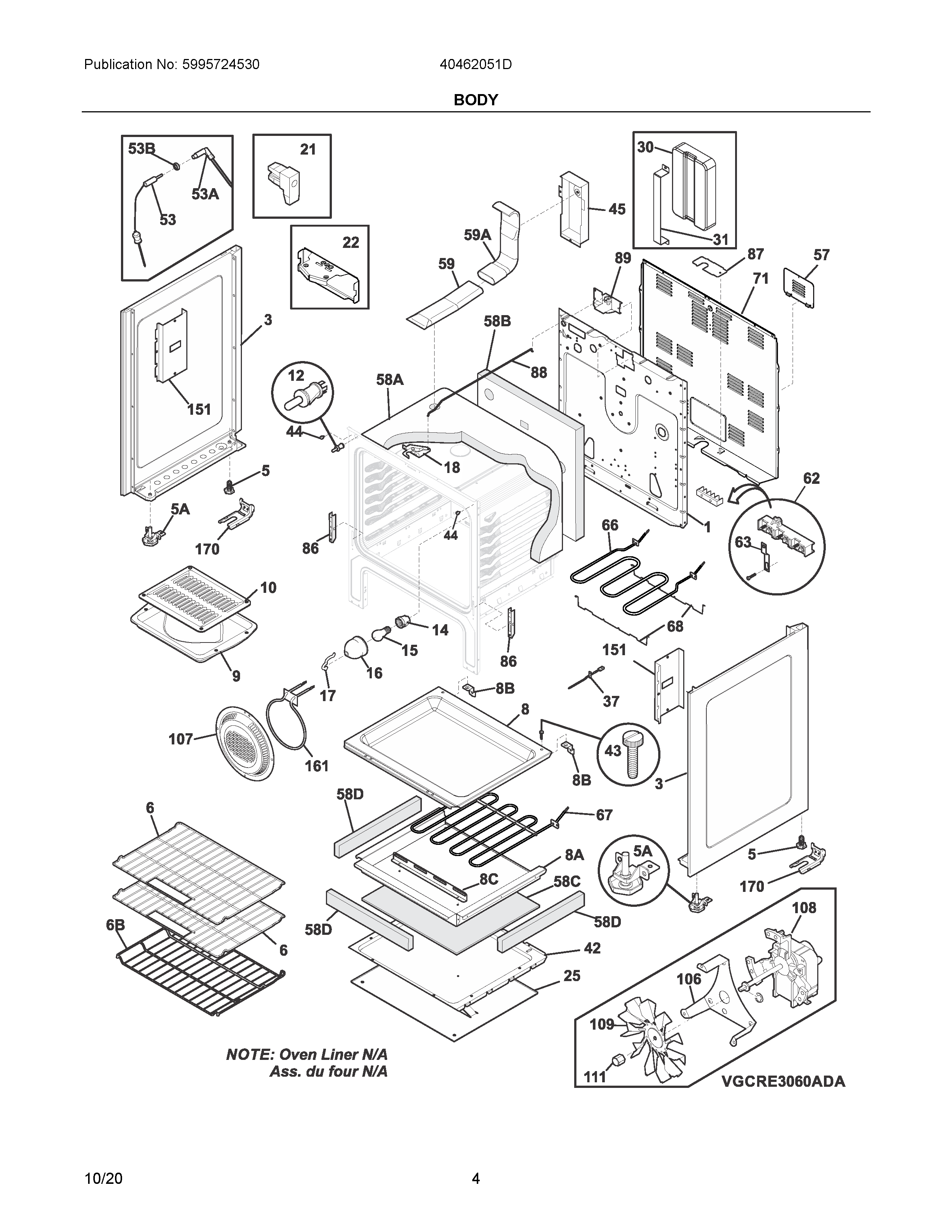

40462051D 03 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NIB316116000 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIA316001017 Frigidaire Screw
NI316279600 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NI316418901 Frigidaire Oven Screw
NI5304522012 Frigidaire Harness
NIA316247300 Frigidaire Oven Catalyst
NI316021105 Frigidaire Oven Screw
NIBA316534100 Frigidaire Oven Washer
NIB316205500 Frigidaire Oven Nut
NIC316542203 Frigidaire Insulator
NI5303289910 Frigidaire Oven Screw
1316401806 Frigidaire Panel
3A316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6B316496205 Frigidaire Oven Rack
6316496201 Frigidaire Oven Rack
8C316505801 Frigidaire Oven Support
8WCI 316505601
8A316505701 Frigidaire Oven Base
8B316506000 Frigidaire Oven Bracket
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445500 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
25316406200 Frigidaire Oven Shield
30COUNTERWEIGHT, CONCRETE BLOCK
31BRACKET, CONCRETE BLOCK
37316490000 Frigidaire Oven Range Temperature Sensor
42316400701 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
45316234100 Frigidaire Oven Shield
53A316536904 Frigidaire Receptacle
535304503737 Frigidaire Black Meat Temperature Probe
53B316247700 Frigidaire Oven Nut
57316283600 Frigidaire Oven Cover
58A316406604 Frigidaire Insulation
58D316509700 Frigidaire Insulation
58C316509600 Frigidaire Insulation
58B316406503 Frigidaire Insulation
59A316208304 Frigidaire Oven Tube
59316208401 Frigidaire Oven Vent Tube
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66BROIL ELEMENT
67316505500 Frigidaire Oven Element
68316404002 Frigidaire Support Assembly
71316283204 Frigidaire Oven Shield
86316580700 Frigidaire Door Hinge Receptacle
87316081200 Frigidaire Oven Bracket
88316203500 Frigidaire Oven Rod
89MOTOR
106316404100 Frigidaire Oven Bracket
107316026701 Frigidaire Oven Cover Assembly
108316256100 Frigidaire Oven Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
151316404601 Frigidaire Oven Shield
1615304518014 Frigidaire Oven Element
