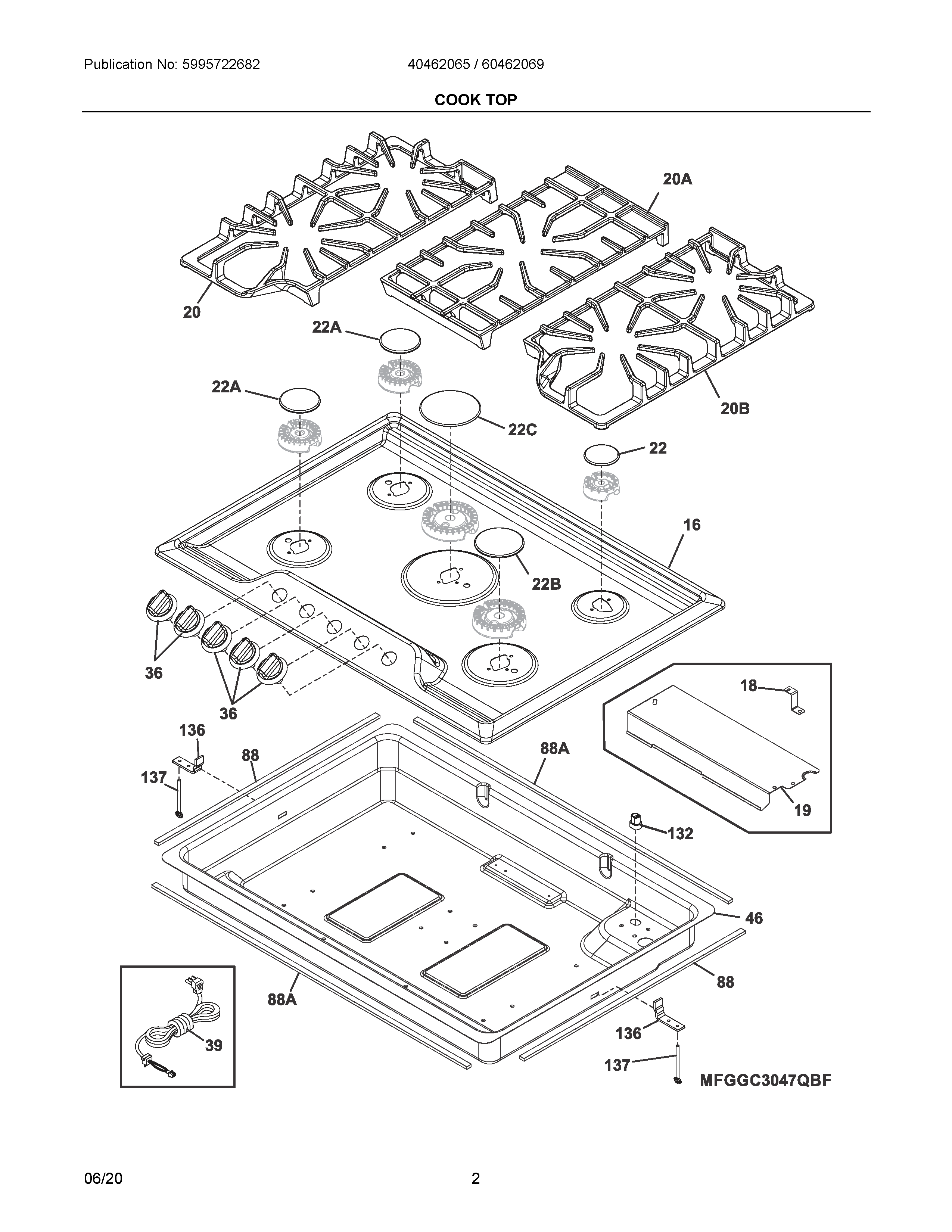

40462065A 02 – COOK TOP

40462065A 02 – COOK TOP

Written by

in

40462065A 02 – COOK TOP

Products

PositionProduct
NIA305452800 Frigidaire Screw
NI305338601 Frigidaire Screw
16WCI 5304525241
18BRACKET
19SHIELD, HEAT
20B5304499394 Frigidaire Oven Grate
20A5304499393 Frigidaire Oven Grate
205304499392 Frigidaire Oven Grate
22C5304508468 Frigidaire Oven Cap
22A5304508442 Frigidaire Oven Surface Burner Cap
22B5304508443 Frigidaire Oven Surface Burner Cap
22CAP
365304499336 Frigidaire Oven Knob
39305574902 Frigidaire Power Cord
465304499395 Frigidaire Burner Box
88GASKET, MAINTOP, FOAM TAPE, SIDE
88AGASKET, MAINTOP, FOAM TAPE, FRONT/REAR
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
