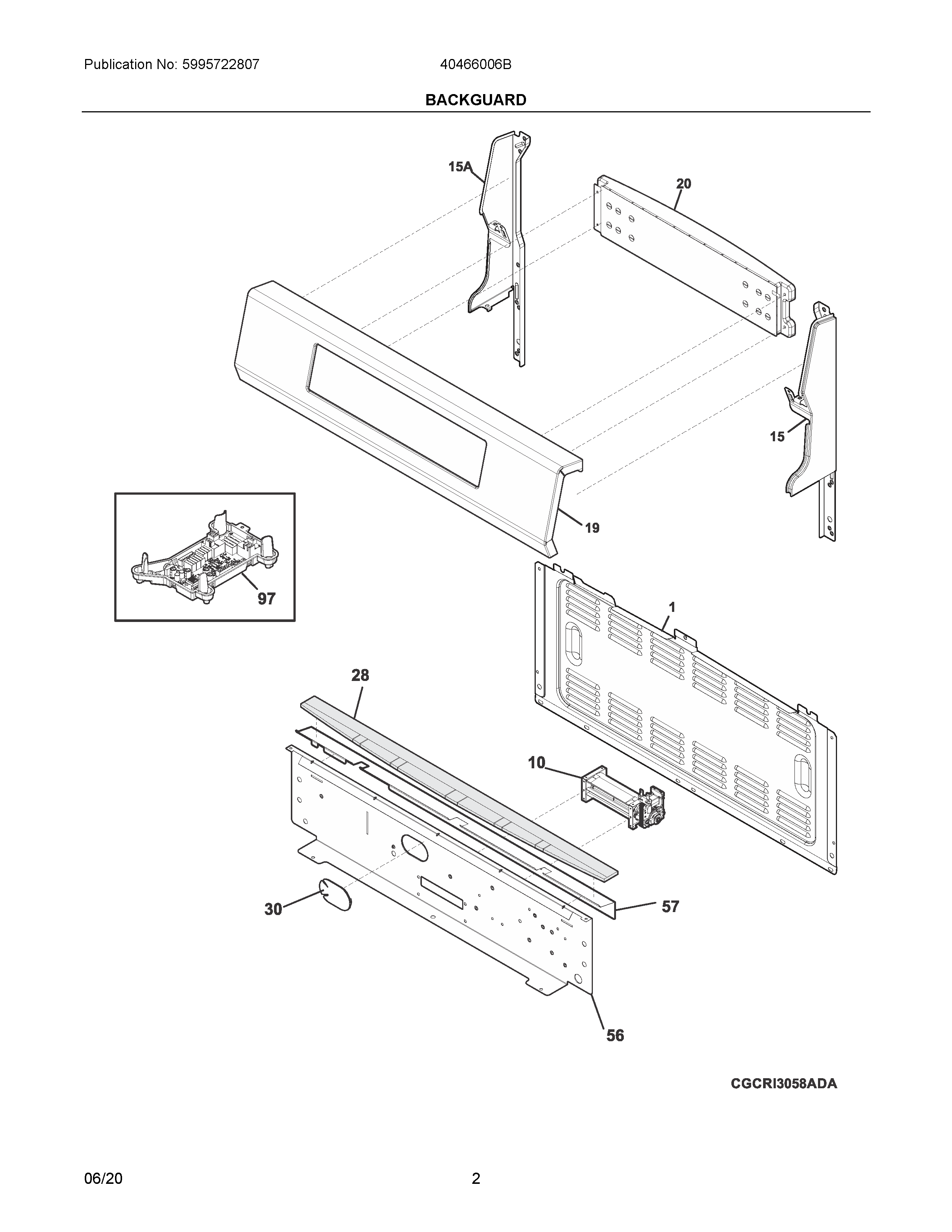

40466006B 02 – BACKGUARD

40466006B 02 – BACKGUARD

Written by

in

40466006B 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304522699 Frigidaire Harness
NI5304519440 Frigidaire Harness
NI5304522701 Frigidaire Harness
NIA318165800 Frigidaire Oven Door Glass Spacer with Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
1316281802 Frigidaire Oven Shield
25304521812 Frigidaire Board Generator
105304511092 Frigidaire Fan Assembly
15A5304493646 Frigidaire Oven Cap
155304493644 Frigidaire Oven Cap
195304524904 Frigidaire Control Panel
205304524987 Frigidaire Control Assembly
28316528700 Frigidaire Insulation Assembly
30316577600 Frigidaire Plug
56SHIELD, BACKGUARD, WHITE, INNER
57808950203 Frigidaire Shield
975304516862 Frigidaire Oven Board
