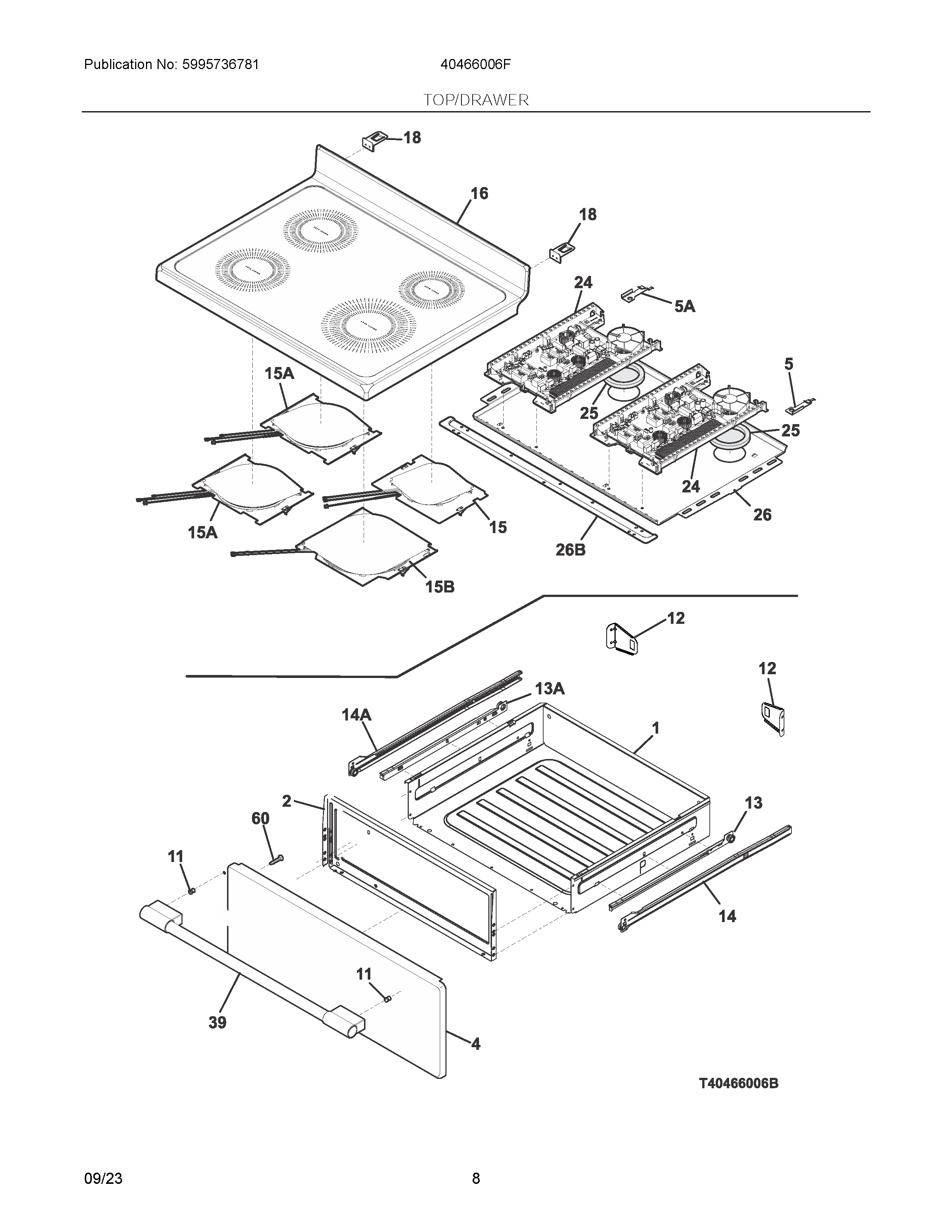

40466006F 04 – TOP/DRAWER

40466006F 04 – TOP/DRAWER

Written by

in

40466006F 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304517540 Frigidaire Harness
NI5304524911 Frigidaire Harness
NI316001017 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304516892 Frigidaire Panel
5ABRACKET, COOKTOP, LH REAR
5BRACKET, COOKTOP, RH REAR
115304494420 Frigidaire Oven Nut
125304517906 Frigidaire Oven Bracket
13A5304517903 Frigidaire Oven Glide Drawer
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15A387404870 Frigidaire Range Element Assembly
15387404760 Frigidaire Range Element Assembly
15B387761249 Frigidaire Range Element Assembly
165304511258 Frigidaire Smoothtop Assembly
18316580800 Frigidaire Hinge Bracket
245304521812 Frigidaire Board Generator
25316302201 Frigidaire Seal
26B316607600 Frigidaire Bracket
265304522702 Frigidaire Panel
39WCI 5304525007
605304414648 Frigidaire Oven Screw
