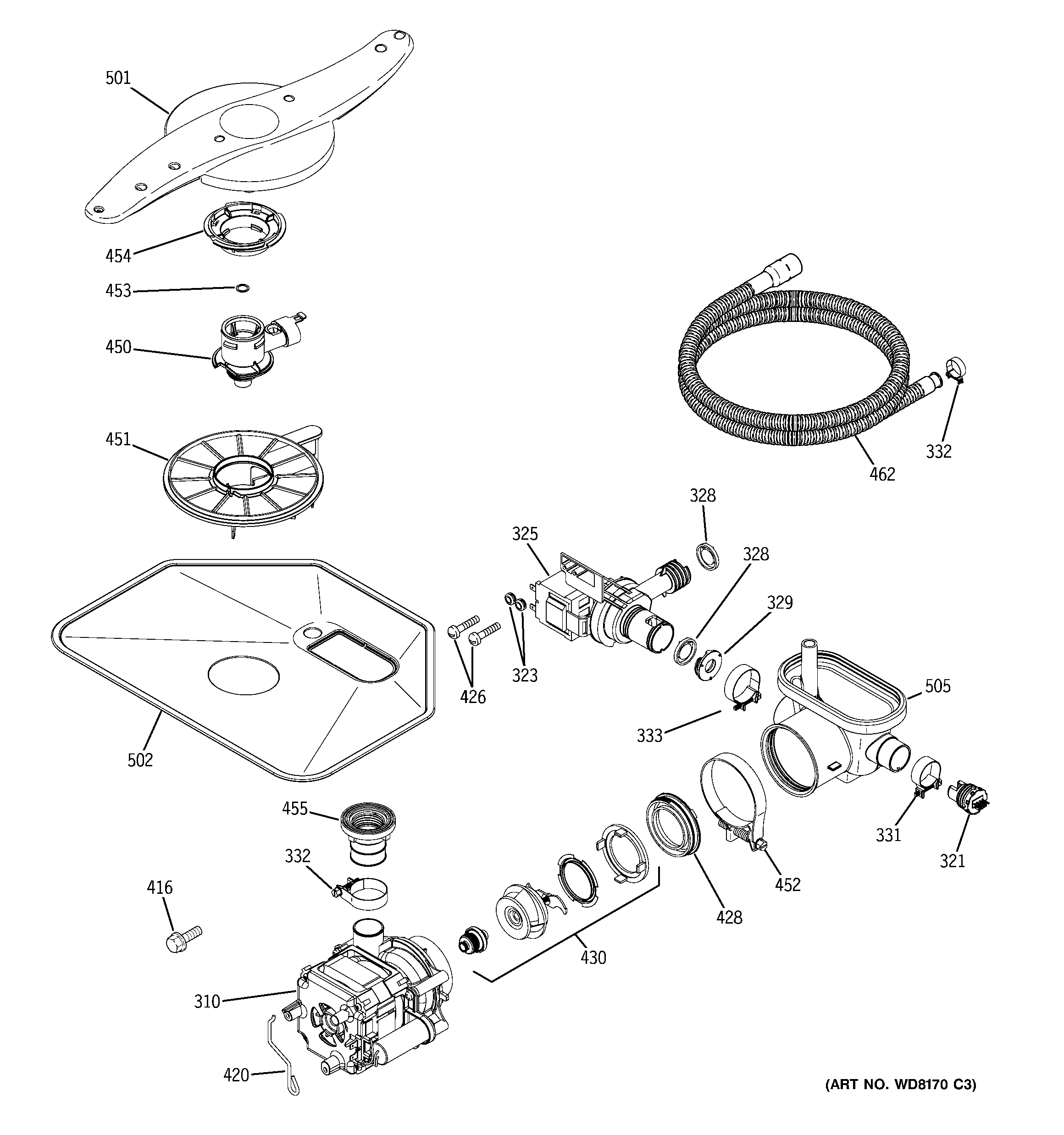

4071520 MOTOR-PUMP MECHANISM

4071520 MOTOR-PUMP MECHANISM

Written by

in

4071520 MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10053 GE Dishwasher Pump and Motor Assembly
321GEN WD21X10272
323WD01X10269 GE Dishwasher Grommet
325WD26X10025 GE Dishwasher Drain Pump and Motor Mechanism Assembly
329GEN WD01X10176
331WD01X10104 GE Dishwasher Hose Clamp
332WD01X10103 GE Dishwasher Clamp
333WD01X10105 GE Dishwasher Clamp
416WD02X10141 GE Dishwasher Screw 10-32 TT Hex
420GEN WD01X10297
426WD02X10093 GE Dishwasher Screw 10-18 X 5/8
428WD12X10060 GE Dishwasher Suction Ring
430WD19X10038 GE Dishwasher Impeller Kit
450GEN WD18X10009
451WD12X10109 GE Dishwasher Fine Filter Assembly
452WD1X1392 GE Dishwasher Sump Clamp
453GEN WD01X10107
454WD12X10061 GE Arm Retainer Nut
455WD18X10010 GE Dishwasher Pump Connector Assembly
462WD24X10045 GE Dishwasher Drain Tube Assembly
501ARM SPRAY LOW ASM
502GEN WD22X10041
505WD18X10008 GE Dishwasher Sump Inlet
