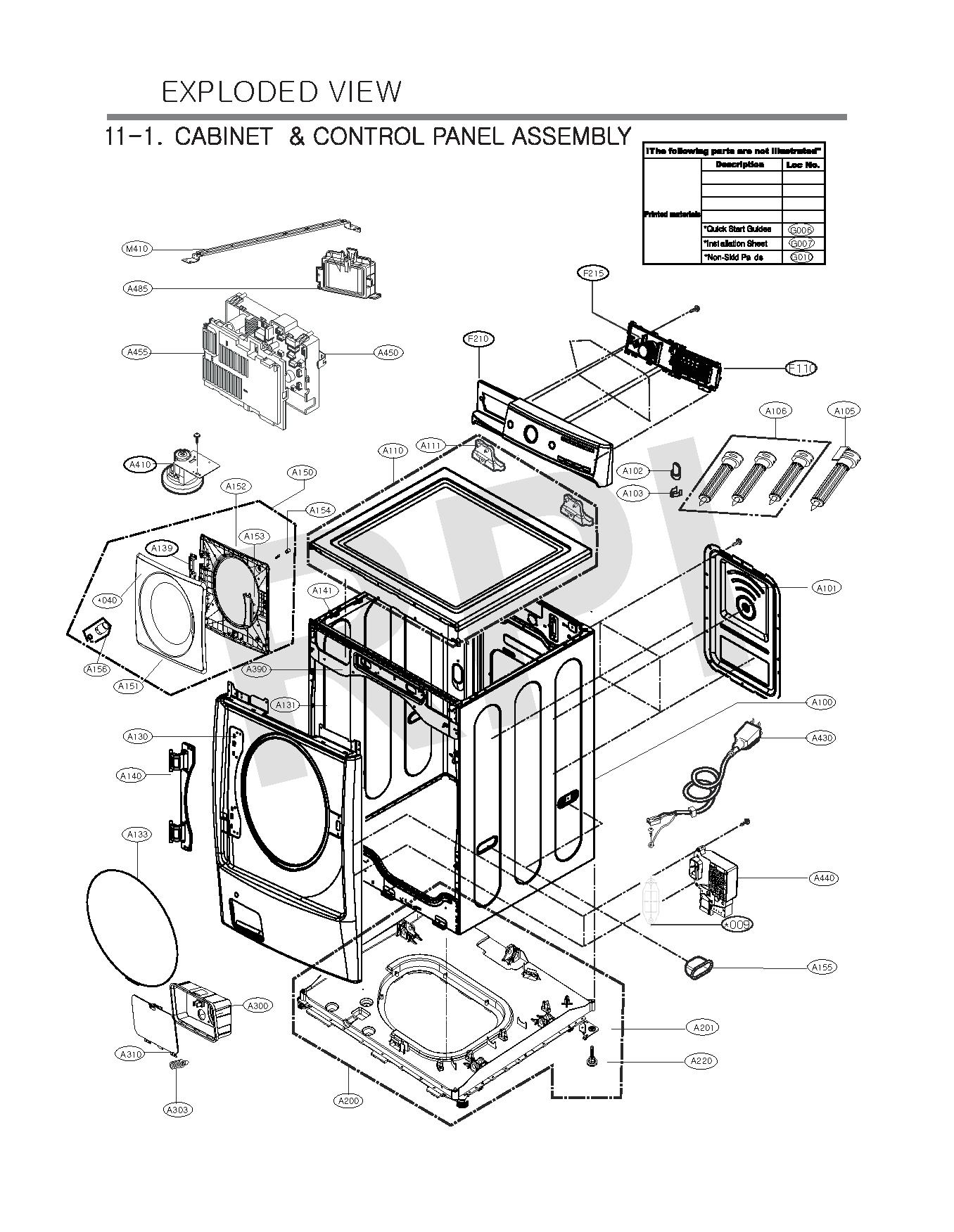

PositionProduct
A1114810ER3021A BRACKET-HINGE
A100ABJ73607411 LG Cabinet Assembly
A4553550ER1032A LG Protective Cover
A4106601ER1006G LG Washer Pressure Switch Water Level Sensor
A3035006EN3015A LG Washer Drain Hose Cap
A2014810ER3006A LG Base Bracket
A141AEJ33026401 LG Holder Assembly
A133ACA56078801 LG Washer Front Boot Seal Gasket Clamp Assembly
A106FAA31690705 LG Washer Bolt Assembly
A110AGU73748201 LG Top Plate Assembly
A130MCK67460201 LG Cabinet Cover
A1553650FA3488M LG Handle
A105FAA31690703 LG Washer Long Bolt
A1034930ER3014A LG Holder
A1024830ER3001A LG Bushing
A1013550ER1028A LG Back Cover
*040MCK67499701 LG Front Cover
*009MEG41552101 LG Holder
F210AGL74159112 LG Control Panel Assembly
A310MBL65460901 LG Cover Cap
M4103210ER1318A LG Frame Body
G010AGM73171801 LG Washer Non-Skid Pad
G007MHK61888720 LG Installation Sheet
A154MFG62579002 LG Locker Hook
A153MEB62874601 LG Handle
A152MDQ63438501 LG Inner Door Frame
A151MDQ63438301 LG Outer Door Frame
A150ADC74068401 LG Door Assembly
A140AEH72914601 LG Hinge Assembly
A139MAZ61923801 LG Hinge Bracket
F2154941ER3005F LG Assembly Knob
A156AGM73610701 LG Washing Machine Magnetic Door Plunger
A200AAN73931902 LG Cabinet Base Assembly
A220AFC72755401 LG Washer Leveling Leg Assembly
G006MHK40625554 LG Operation Sheet
F110EBR76376105 LG PCB Display Assembly
A485EAM60991315 LG Washer Machine Noise Filter Assembly
A450CSP30101413 LG Service PCB Assembly
A440EBF61315802 LG Washer Lid Lock Switch Assembly
A430EAD40521449 LG Washer Power Cord Assembly
A390ADV74166901 LG Frame Assembly
A300MBN62563201 LG Case Assembly
A131AEJ33026601 LG Holder Assembly
