Products

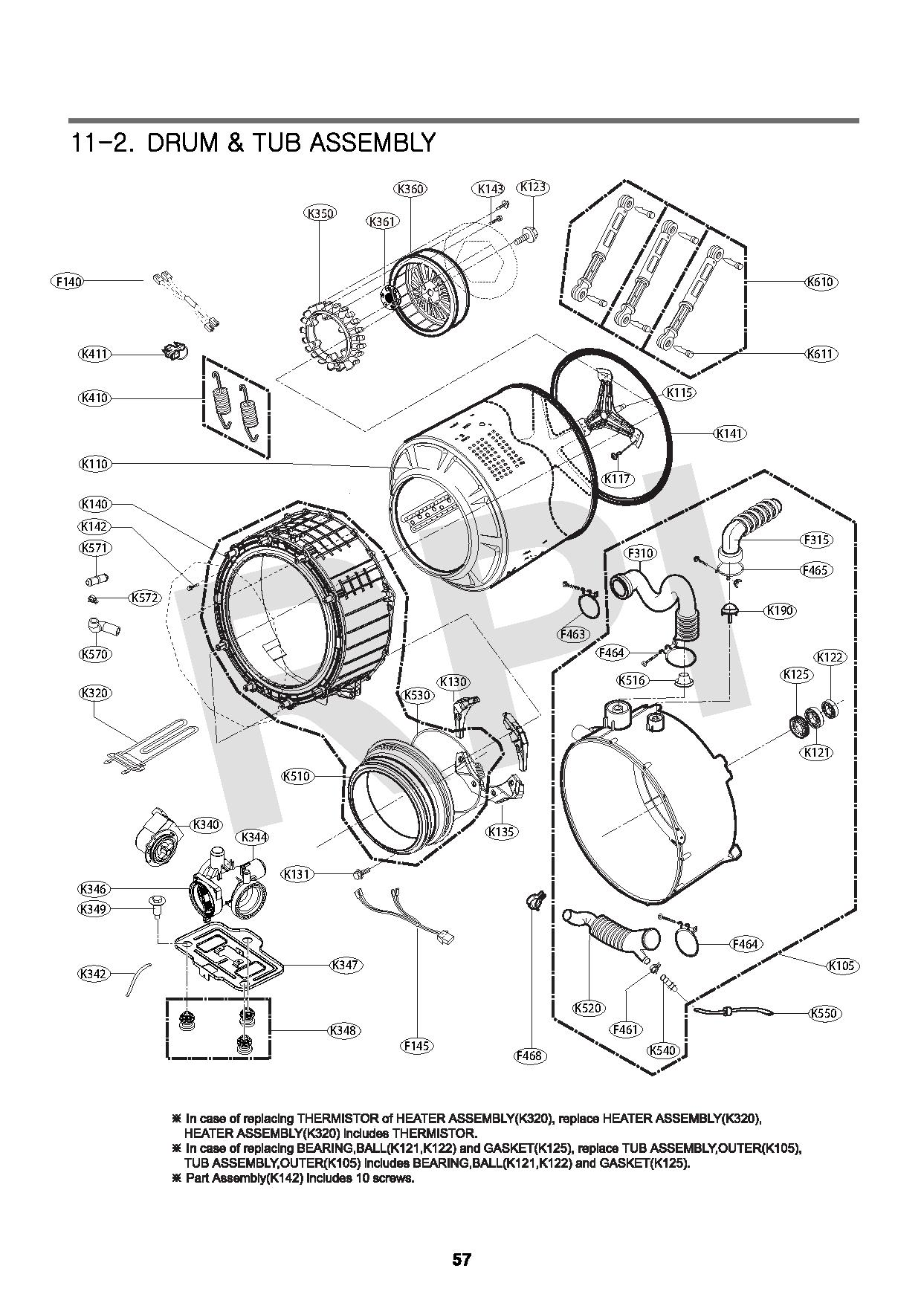

PositionProduct
K6114774EN3002A LG Hinge
K361MBF62845201 LG Rotor Bushing
K360AHL72914401 LG Washer Rotor Assembly
K350STATOR ASSY
K349Bolt,Common
K348MCQ41502701 LG Damper
K347Bracket,Pump
K346AGM75389901 LG Parts Assembly
K3443108ER1001B LG Washer Pump Housing
K3425214EN4002B LG Washer Connector Hose Drain Pump
K410MHY62964802 LG Washer Suspension Hinge Spring
K4114930EN3004A LG Washer Holder Retainer
K510MDS47123619 LG Gasket
K610ACV72909503 LG Washer Damper Shock Absorber Assembly
K5724861FR3068C LG Clamp
K571MCD54512102 LG Hose Connector
K5705214FR4058Y LG Washer Tub to Pump Hose
K550MEJ62305104 LG Inlet Hose
K540MBR62061501 LG Air Chamber
K5304861ER2001J LG Washer Door Boot Spring Clamp Assembly
K520BELLOWS ASSY
K516MEA63450901 LG Water Guide
K3404681EA2001T LG Washer Drain Pump and Motor
K320AEG33121501 LG Washer Heater Assembly
K190FLOAT ASSY
K115MHW62141203 LG Spider
K110AJQ73674408 LG Inner Tub Drum Assembly
K105Tub Assembly,Outer
F4684861EN3003D LG Clamp Assembly
F4654860EN3001D LG Tub Clamp
F4644860EN3001E LG Tub Clamp
F3154738ER2002A LG Washer Drain Bellows
F3104738ER1004B LG Washer Fill Hose Bellows
F145EAD62116002 LG Single Harness
K1174000FR4031C LG Screw Customized
K1214280EN4001G LG Washer Rear Tub Bearing
K1224280EN4001F LG Washer Rear Tub Bearing
K143FAA30970801 LG Common Bolt
K1424011EN4003A LG Washer Bolt Assembly
K1414036ER4001F LG Washer Gasket
K140MCK67635904 LG Tub Cover
K135MAG62583001 LG Washer Balance Weight
K1311SZZER4002A LG Customized Screw
K130MAG63143001 LG Washer Balance Weight
K125MDS62058301 LG Washer Rear Tub Gasket Seal
K123FAA30970901 LG Bolt Assembly
F140EAD62061008 LG Washer Multi-Harness
