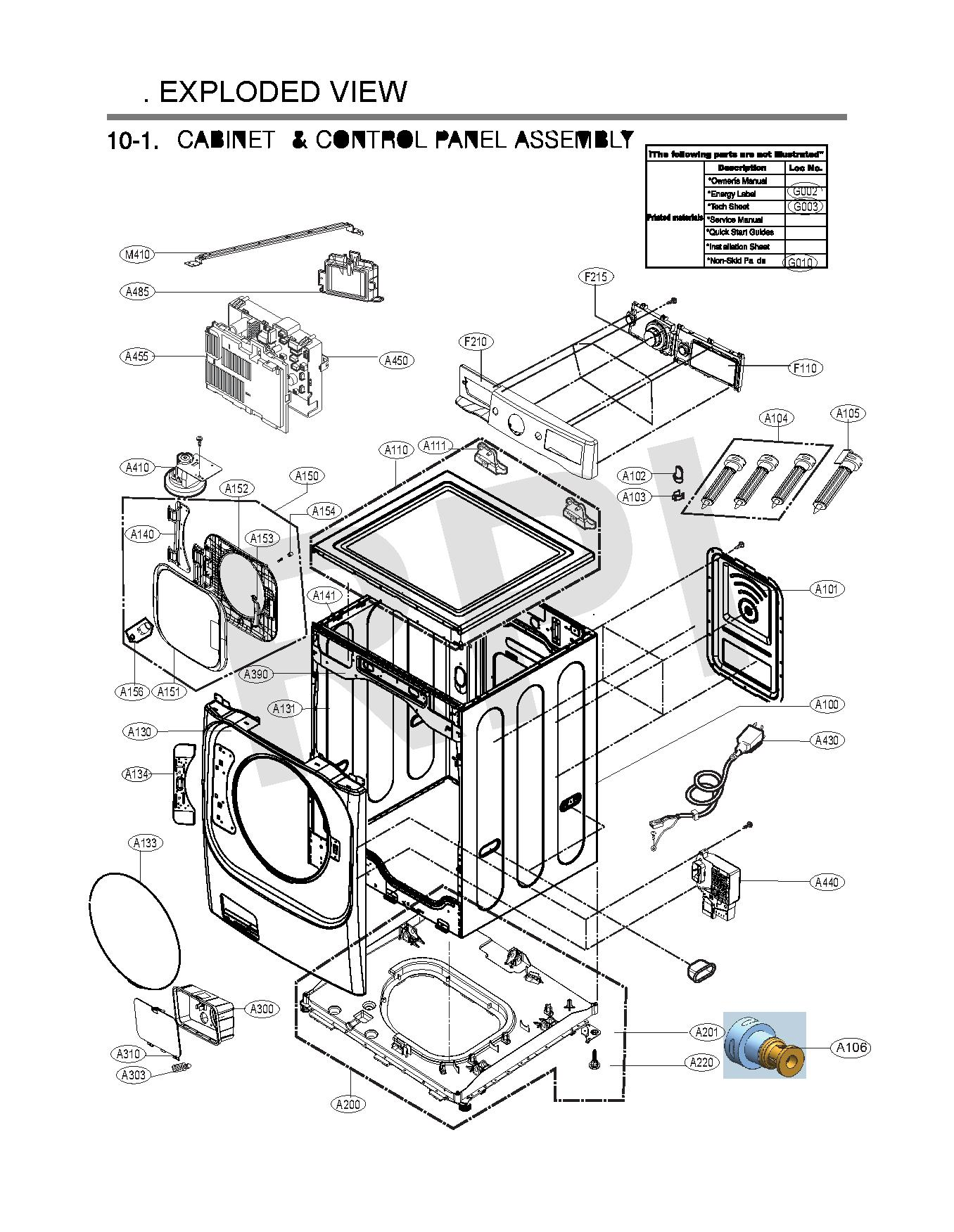

| G003 | Sheet,Service |
| A156 | AEJ74840001 LG Washer Holder Assembly |
| A485 | EAM60991309 LG Filter Assembly |
| A154 | MFG63099101 LG Locker Hook |
| A455 | 3550ER1032A LG Protective Cover |
| A153 | MEB61848501 LG Handle Assembly |
| A430 | EAD61246487 LG Power Cord Assembly |
| A152 | MDQ64177701 LG Door Inner Frame |
| A410 | 6601ER1006G LG Washer Pressure Switch Water Level Sensor |
| G010 | Sheet,Installation |
| A200 | AAN74468803 LG Cabinet Base Assembly |
| G002 | Label,Energy |
| F210 | AGL75013903 LG Control Panel Assembly |
| F110 | PCB Assembly,Display |
| A450 | EBR80360705 LG Main PCB Assembly |
| A390 | ADV74430502 LG Frame Assembly |
| A310 | MBL65465002 LG Cap Cover |
| A300 | Case |
| M410 | MDQ64376301 LG Body Frame |
| A151 | Frame,Door(Outer) |
| A303 | 5006EN3015A LG Washer Drain Hose Cap |
| A150 | Door Assembly |
| A104 | FAA31690701 LG Washer Transit Shipping Bolt Assembly |
| A103 | 4930EN3007A LG Holder Assembly |
| A102 | MBF62784301 LG Bush |
| A101 | 3550EN1023K LG Rear Cover |
| A100 | ABJ73888505 LG Cabinet Assembly |
| A440 | EBF61315802 LG Washer Lid Lock Switch Assembly |
| A140 | AEH72914601 LG Hinge Assembly |
| F215 | 4941ER3005F LG Assembly Knob |
| A105 | FAA30992202 LG Washer Bolt Assembly |
| A106 | FAA31690705 LG Washer Bolt Assembly |
| A220 | AFC72909305 LG Washer Leg Assembly |
| A201 | 4810ER3006A LG Base Bracket |
| A134 | MAZ61923701 LG Hinge Bracket |
| A141 | AEJ33026401 LG Holder Assembly |
| A130 | MCK62308006 LG Cabinet Cover |
| A133 | ACA56078801 LG Washer Front Boot Seal Gasket Clamp Assembly |
| A111 | MAZ63472802 LG Hinge Bracket |
| A110 | AGU73909707 LG Top Plate Assembly |
| A131 | AEJ33026601 LG Holder Assembly |
