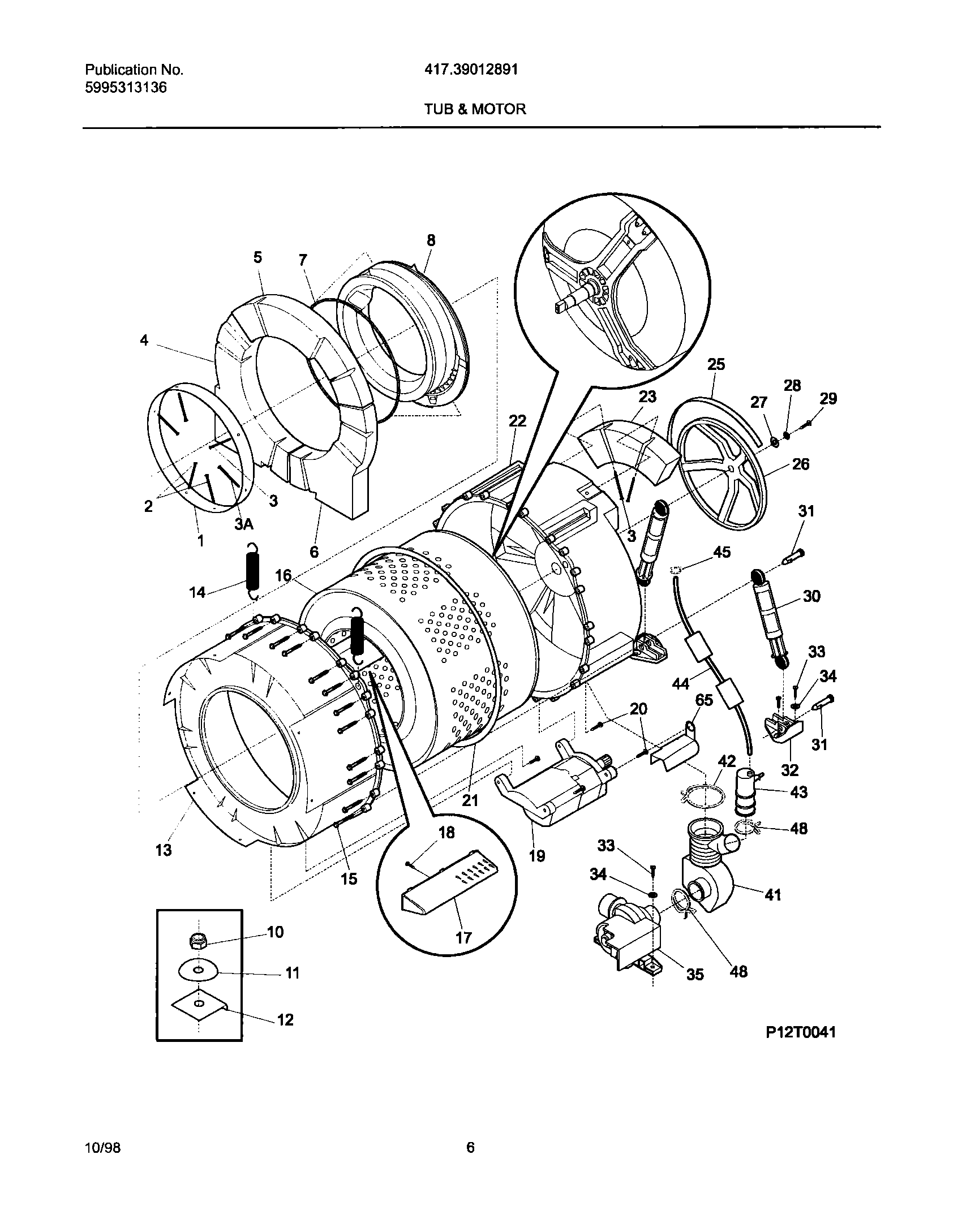

41739012891 07 – TUB & MOTOR

Products

Position	Product
NI	131592200 Frigidaire Sleeve-Upper Spring
NI	131560000 Frigidaire Lower Sleeve Spring
1	WCI 131277000
2	WCI 131303401
3	WCI 131303402
3A	WCI 131303403
4	WCI 131276500
5	WCI 131276600
6	WCI 131276400
7	131277300 Frigidaire Boot Retainer Spring
8	5303937187 Frigidaire Washer Door Gasket Seal Bellows Kit
10	Nut,hex ,1/4-20 UNC-2B ,(2)
11	131276900 Frigidaire Washer Spring
12	WCI 131276800
13	131618600 Frigidaire Front Shell TUB+O/S2
14	134144700 Frigidaire Washer Suspension Spring
15	131303900 Frigidaire Screw
16	131618500 Frigidaire Spin Tub + O/S2
17	131274600 Frigidaire Baffle
18	131302800 Frigidaire Drum Vane Screw
19	131276200 Frigidaire Washer Drive Motor
20	131303500 Frigidaire Screw
21	WCI 131275900
22	Shell,outer tub ,rear ,with bearing
23	WCI 131276700
25	134051000 Frigidaire Washer Drive Belt
26	WCI 131632500
27	Washer,0.41 x 1.50 ,0.12 thick
28	WCI 131304500
29	Screw,pulley mtg. ,m10 x 0.92 ,metric
30	5304485917 Frigidaire Washer Shock Absorber Air Stabilizer
31	131268300 Frigidaire Leveling Pin
32	Bracket,shock mtg.
33	131202300 Frigidaire Screw
34	5303304015 Frigidaire Oven Washer
35	WCI 131723500
41	131784700 Frigidaire Coin Trap Hose
42	134737300 Frigidaire Clamp
43	WCI 131277500
44	Hose,air pressure
45	131306202 Frigidaire Clamp
48	131306234 Frigidaire Clamp Pump
65	WCI 131702200
