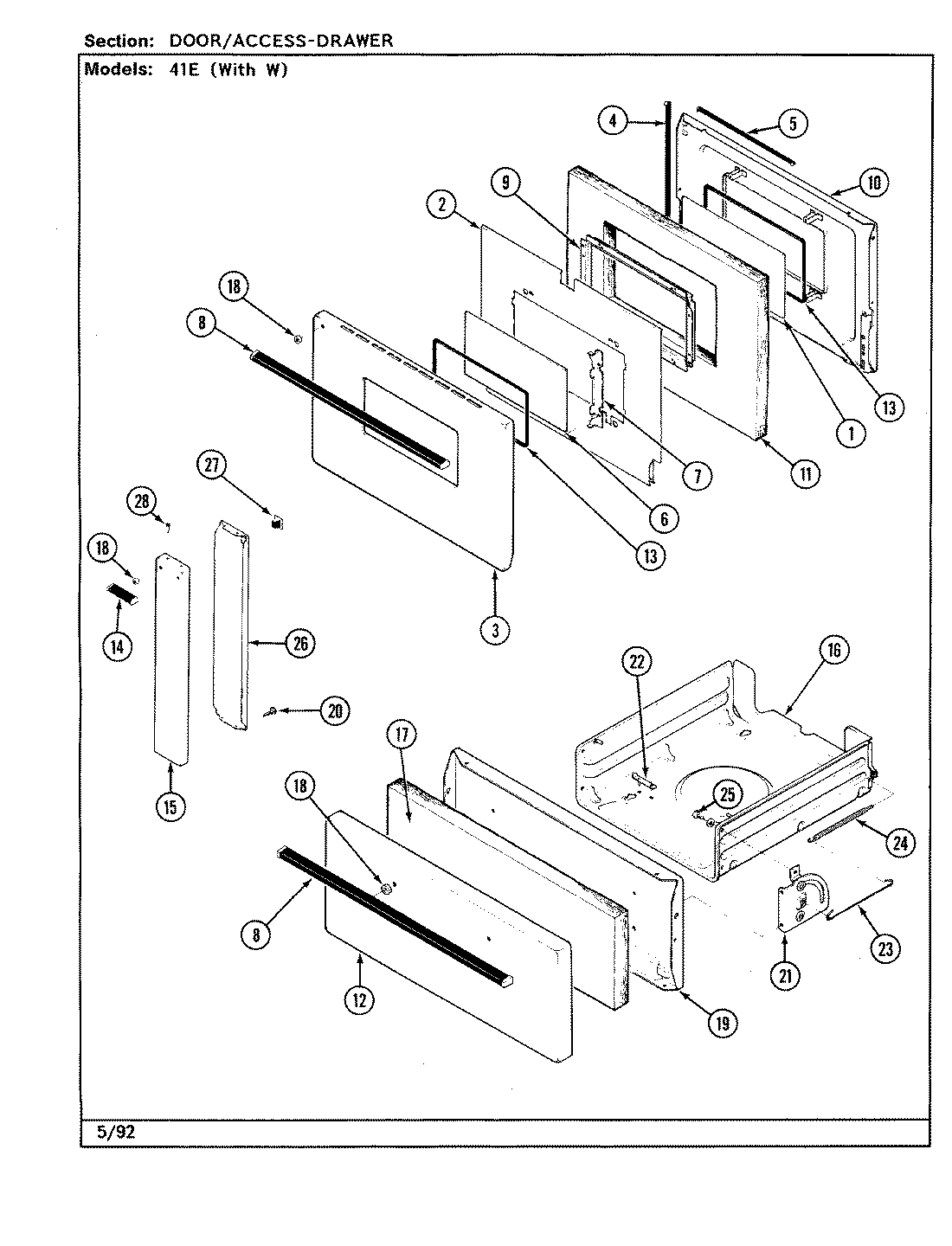

41EN-2KLW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P035-60
2	MAY 3601F094-51
3	MAY 2401F042-71
3	WP74003976 Whirlpool Screw
4	MAY 7212P003-60
5	MAY 7112P064-60
5	MAY 7212P025-60
6	MAY 7902P051-60
7	MAY 3804F050-80
8	MAY 1986238
8	MAY 7701P012-60
8	MAY 7701P030-60
8	74002481 Whirlpool Screw
8	MAY 7101P080-60
9	MAY 3603F013-80
10	MAY 7101P061-60
10	MAY 2402W165-19
10	MAY 2402W119-23
10	MAY 2402W165-23
11	MAY 7002P012-60
12	MAY 2403F011-71
13	MAY 7201P017-60
14	MAY 7701P009-60
15	MAY 2409F007-71
16	MAY 3407W004-11
17	MAY 7002P002-60
18	MAY 8010P002-60
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	MAY 2404F020-23
19	MAY 7101P058-60
20	MAY 8003P003-60
21	MAY 3418A028-34
21	MAY 3418A027-34
22	MAY 8002P001-60
23	MAY 7807P001-60
24	MAY 7803P014-60
25	MAY 7103P067-60
25	MAY 7101P114-60
26	MAY 2408F005-80
27	MAY 8002P013-60
28	MAY 7101P013-60
