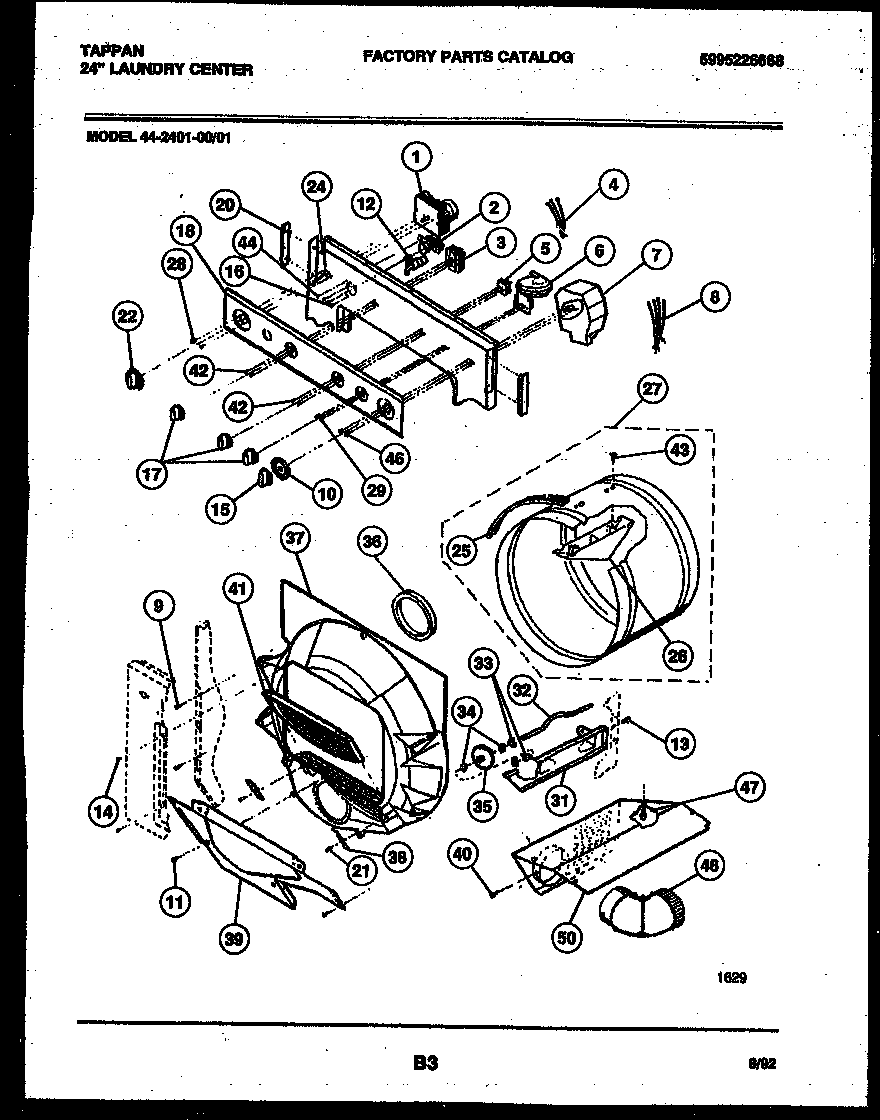

44-2401-23-01 03 – CONSOLE, CONTROL AND DRUM

Products

Position	Product
*76428	SPACER-TIMER-SHAFT
*76429	WCI 5303208455
*76429	WCI 08008454
*76429	Spacer,washer ,timer shaft
*76429	REGISTER
*76429	RESISTOR
*76429	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	WCI 3205944
2	WCI 5303209765
3	WCI 5303017895
4	WCI 5303283043
5	WCI 5308008463
6	WCI 5303283044
7	WCI 5303283045
8	WCI 5303283046
10	WCI 3204999
11	131205100 Frigidaire Screw
12	WCI 3205000
13	WCI 08011280
14	WCI 5303285467
15	WCI 3205947
17	WCI 3205948
18	TRIMPLATE
20	WCI 3205006
21	216858001 Frigidaire Refrigerator Screw
22	KNOB & DIAL ASSY
24	WCI 3205008
25	WCI 5303286418
26	BAFFLE-DRUM (3)
27	WCI 3205010
31	WCI 5303161080
31	WCI 5303161081
32	WCI 5308004076
33	SNAP RING (4)
34	WCI 08012152
35	WCI 5308004077
36	WCI 5303209445
37	WCI 5303288388
38	GUIDE (2)
39	COVER-LINT HSG
40	SCREW (2)
41	WCI 3205015
42	WCI 3161259
44	WCI 08010804
46	WCI 08001544
47	WCI 3205016
48	WCI 3205017
50	WCI 3205018
