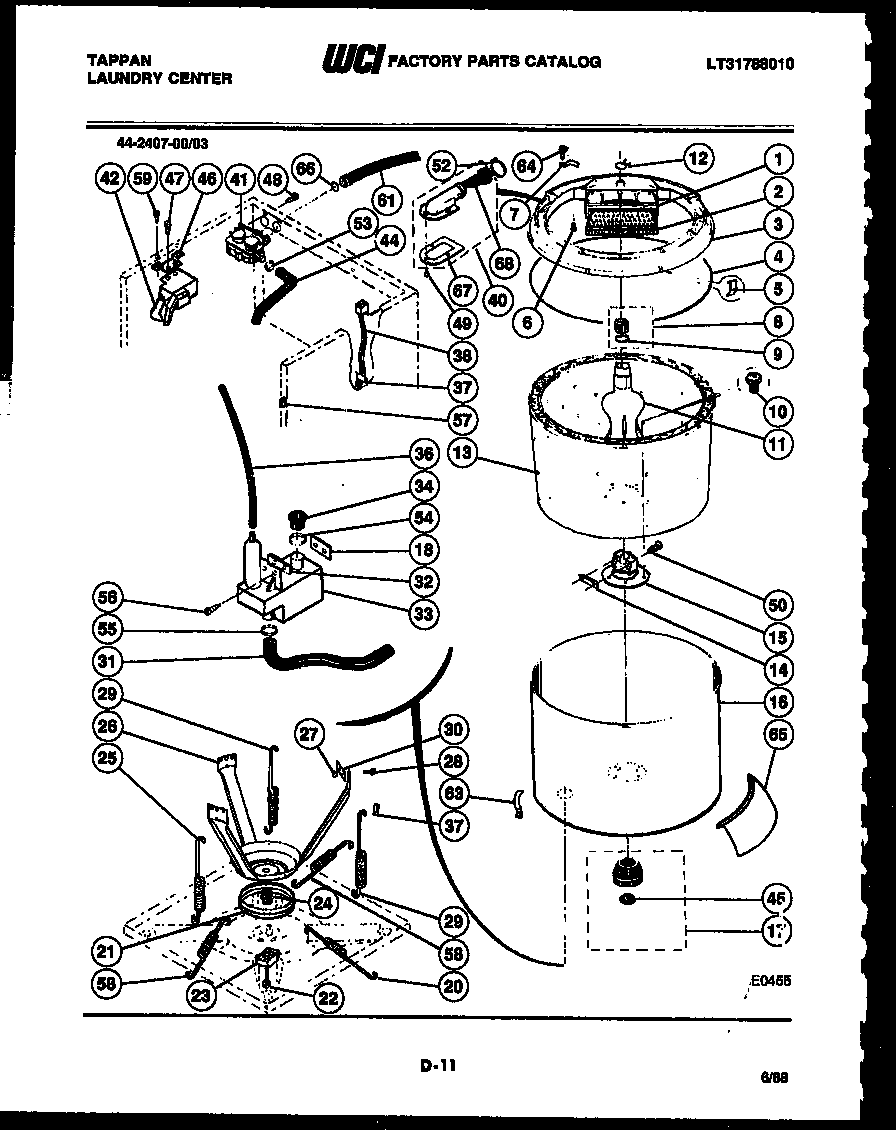

44-2407-00-03 05 – TUBS, WATER VALVE AND LID SWITCH

44-2407-00-03 05 – TUBS, WATER VALVE AND LID SWITCH

Written by

in

44-2407-00-03 05 – TUBS, WATER VALVE AND LID SWITCH

Products

PositionProduct
*14215WCI 3161149
*14215WCI 3161147
*14215CLIP-PRESSURE-TUBE-SHORT
*14215CLIP-PRESSURE TUBE (LONG)
*142155303283849 Frigidaire Adhesive Clear
*14215WCI 3004924
1HOUSING-LINT FILTER
2FILTER-LINT
3TUB COVER
4SEAL-TUB COVER
5WCI 3161199
6WCI 3161280
7WCI 3161281
8CAP-AGITATOR (INCL 9)
9WCI 3161200
10WCI 3161201
11WCI 3161123
12WCI 3161282
13WCI 3161124
14137107000 Frigidaire Plate
15WCI 3161126
16WCI 3161127
17WCI 3161464
18WCI 3161283
20SPRING-HORIZONTAL-LONG
21SNUBBER RING ASSEMBLY
22WCI 3161284
23BLOCK-SHIPPING
24NUT-EXPANSION
25SPRING-VERTICAL-SHORT
26LEG & DOME
27WCI 3161204
28SCREW (6)
29SPRING-VERTICAL-LONG
30WCI 3161134
31HOSE-PUMP/TRAP
32WCI 3161285
33WCI 3161136
34WCI 3161286
365304401845 Frigidaire Tube Pressure
37CLIP (2)
38WCI 3016475
40WATER INLET ASSEMBLY
41134190200 Frigidaire Washer Water Valve
42WCI 3161141
44WCI 3161142
455308002401 Frigidaire Washer Primary
46WCI 3161143
47SCREW (24)
48WCI 3161290
49WCI 3161291
50137539500 Frigidaire Washer Trunnion Lock Plate Bolt
52WCI 3161206
53WCI 3161207
54WCI 3161208
55WCI 3161293
56WCI 3161274
57CLIP-HARNESS
58SPRING-HORIZONTAL-SHORT
59SCREW (2)
615303912532 Frigidaire Hose Inlet 60"
63WCI 3161294
645303015671 Frigidaire Bracket Termination Screw
65SHIELD-MOTOR (PLASTIC MOTOR SHIELD AND TAPE – FABRICATE
665303161296 Frigidaire Washer-Inlet Hose (1Piece)
67WCI 3161297
68WCI 3161146
