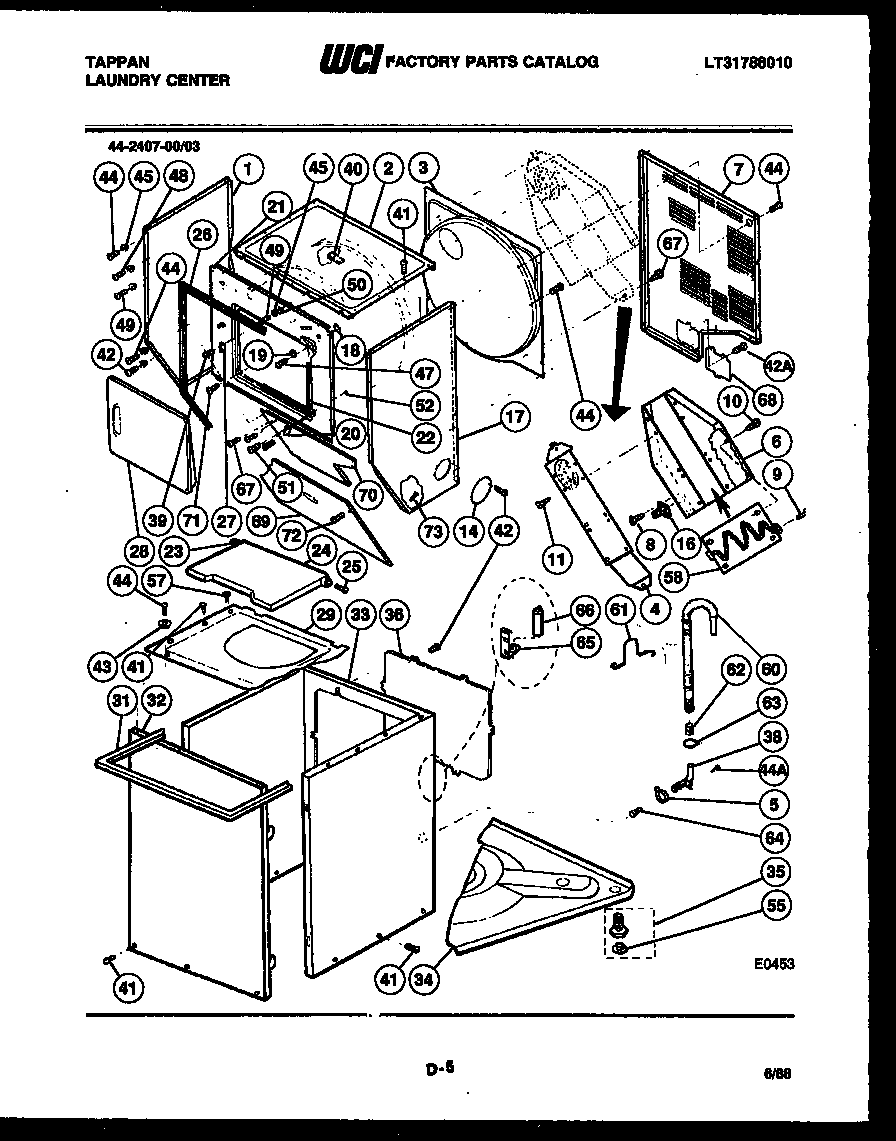

44-2407-23-03 02 – CABINET PARTS AND HEATER

Products

PositionProduct
*14203WCI 3016444
*14204WCI 3161012
*14204WCI 3161011
*14203WCI 3161057
1PANEL-LH-DRYER-ALMD
1PANEL-LH-DRYER-WHT
2PNL-TOP-DRYER-WHITE
2PNL-TOP-DRYER-ALMD
3WCI 3017111
4WCI 3161018
5CLAMP-HOSE/COUPLER
6WCI 3161019
7PANEL-VENT
9SCREW (2)
14COVER-EXHAUST-ALMD
14COVER-EXHAUST-WHITE
16WCI 3161023
17PNL-RH-DRYER-ALMD
17PNL-RH-DRYER-WHITE
18WCI 3161235
19HINGE-DOOR-TOP
20HINGE-DOOR-LOWER
21WCI 3016438
21WCI 3016436
22DOOR SEAL
24LID-WASHER-WHITE
24LID-WASHER-ALMOND
25WCI 3161236
26WCI 3161475
27WCI 3161034
28DOOR-DRYER-ALMOND
28DOOR-DRYER-WHITE
29PNL-TOP-WSHR-ALMD
29PNL-TOP-WSHR-WHITE
31WCI 3161477
32PANEL-FRNT-WSHR-WHT
32PANEL-FRNT-WSHR-ALMD
33CABINET-WSHR-ALMD
33CABINET-WSHR-WHITE
34WCI 3161044
35LEG-LEVELING ASSY (4)
36WCI 3161046
38COUPLER – DRAIN HOSE
39WCI 3161237
40WCI 3161048
42131302800 Frigidaire Drum Vane Screw
42A131168200 Frigidaire Dryer Screw
44AWCI 3161453
44SCREW (24)
45RETAINER-TRIM
48SCREW (2)
49131205100 Frigidaire Screw
50SPACER (OPTIONAL) (2)
51SCREW-HNG/FRONT PNL
51ASCREW-HINGE/LINT HSG
52WCI 3161247
55PAD-LEVELING LEG (4)
57WCI 3161185
58HEATER ASSEMBLY
60WCI 3161454
61RETAINER-DRAIN HOSE
62BUSHING-DRAIN HOSE
63WCI 3161186
63AWCI 3161250
64WCI 3161251
65BRACKET-CAPACITOR
66WCI 3161052
68COVER-TERMINAL
69PANEL-ACCESS-WHITE
69PANEL-ACCESS-ALMD
70WCI 3016443
71WCI 3161187
72WCI 3161253
73SCREW (2)
