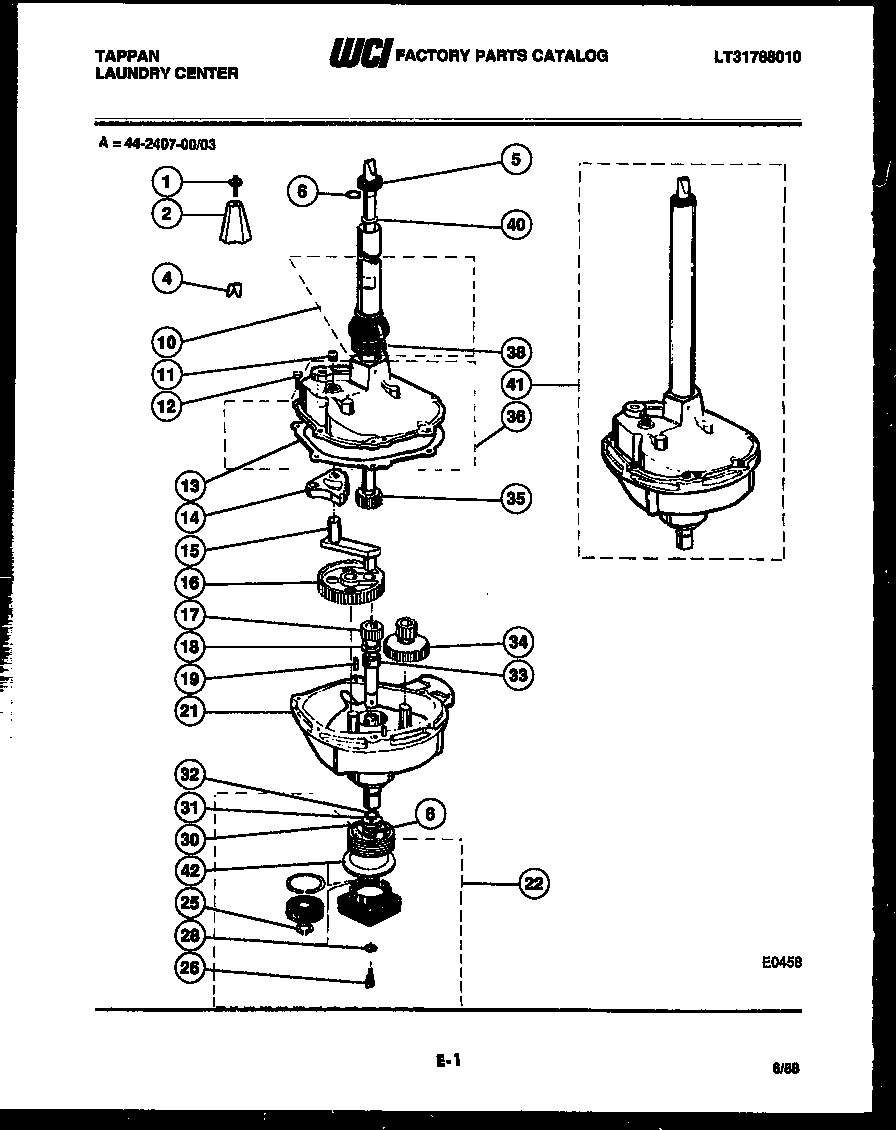

44-2407-23-03 07 – TRANSMISSION PARTS

Products

Position	Product
*14219	OIL-TRANSMISSION-1 QUART
*14219	WCI 3161181
*14219	SLEEVE-CLUTCH COIL
1	WCI 3161221
2	WCI 3161166
4	WCI 3161222
5	5303161307 Frigidaire Dryer Seal Assembly
6	WCI 3161223
10	HOUSING-BLOWER
11	PIPE PLUG
12	WCI 3161225
13	WCI 3161308
14	SECTOR GEAR
15	WCI 3161169
16	WCI 3161170
17	WCI 3161178
19	DOWEL PIN
21	LOWER HOUSING ASSEMBLY (INC 13)
22	BEARING-HOUSING/LGS SPRING PKG
25	WCI 3161309
26	WCI 3161490
28	WCI 3161228
30	WASHER-SPACER
31	THRUST WASHER
32	5303161173 Frigidaire Seal Assembly
33	LGS SPRING-SMALL
34	WCI 3161175
35	134736400 Frigidaire Gear Case
36	UPPER HOUSING ASSEMBLY-W/ GASKET
38	WCI 3161231
40	THRUST WASHER
41	TRANSMISSION COMPLETE
42	WCI 3161311
