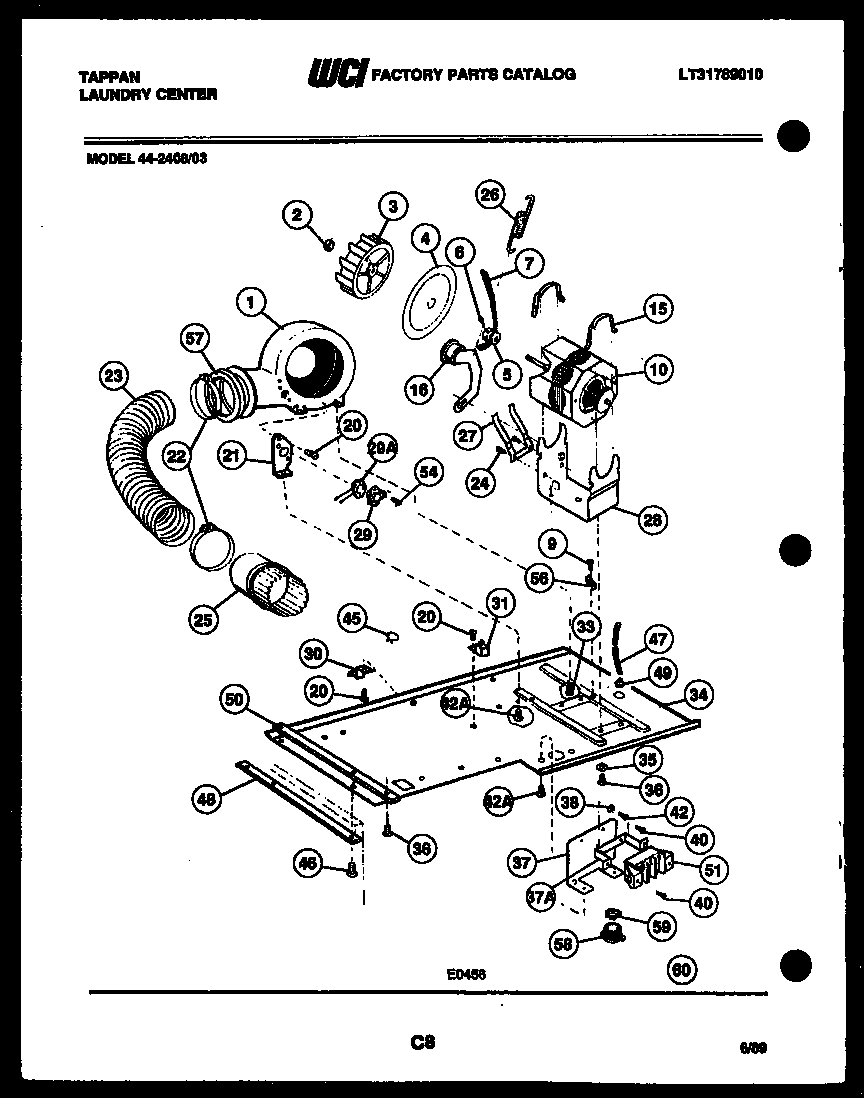

44-2408-00-03 05 – DRYER MOTOR, BLOWER AND BELT

Products

Position	Product
*24929	NYLUBE LUBRICANT
*24929	5308819002 Frigidaire Dryer 30 Amp 4'3" Cord
1	WCI 3016461
2	SPRING CLIP
3	WCI 3161096
4	PLATE-BLOWER HOUSING
5	PULLEY-MOTOR
6	WCI 3161264
7	WCI 3161099
9	SCREW (2)
10	WCI 3203091
15	WCI 3161190
16	IDLER ARM & WHEEL ASSEMBLY
20B	131168200 Frigidaire Dryer Screw
21	WCI 3016464
22	5304436333 Frigidaire C500 Gal Worm Gear 4
23	WCI 3161104
25	WCI 3016465
26	SPRING-IDLER ARM
27	WCI 3161269
28	CRADLE MOTOR
29	THERMOSTAT-CONTROL
29A	HEATER-THERMOSTAT
30	WCI 3161270
31	WCI 3161271
32	NUT (SILVER) (2)
33	131205100 Frigidaire Screw
34	DRYER BASE
35A	WCI 3161193
35	WCI 3161192
37	WCI 3161273
37A	WCI 3016467
38	WCI 3161194
40A	131302800 Frigidaire Drum Vane Screw
40	SCREW (24)
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
42A	SCREW (4)
45	WCI 3161276
46	SCREW (4)
47	5304401845 Frigidaire Tube Pressure
48	BRACE
49	CONNECTER
50	WCI 3016469
51	WCI 3116470
54	216858001 Frigidaire Refrigerator Screw
56	WCI 3161198
57	WCI 3016471
58	STRAIN RELIEF
59	WCI 3016473
60	SCREW-STRAIN RELIEF
