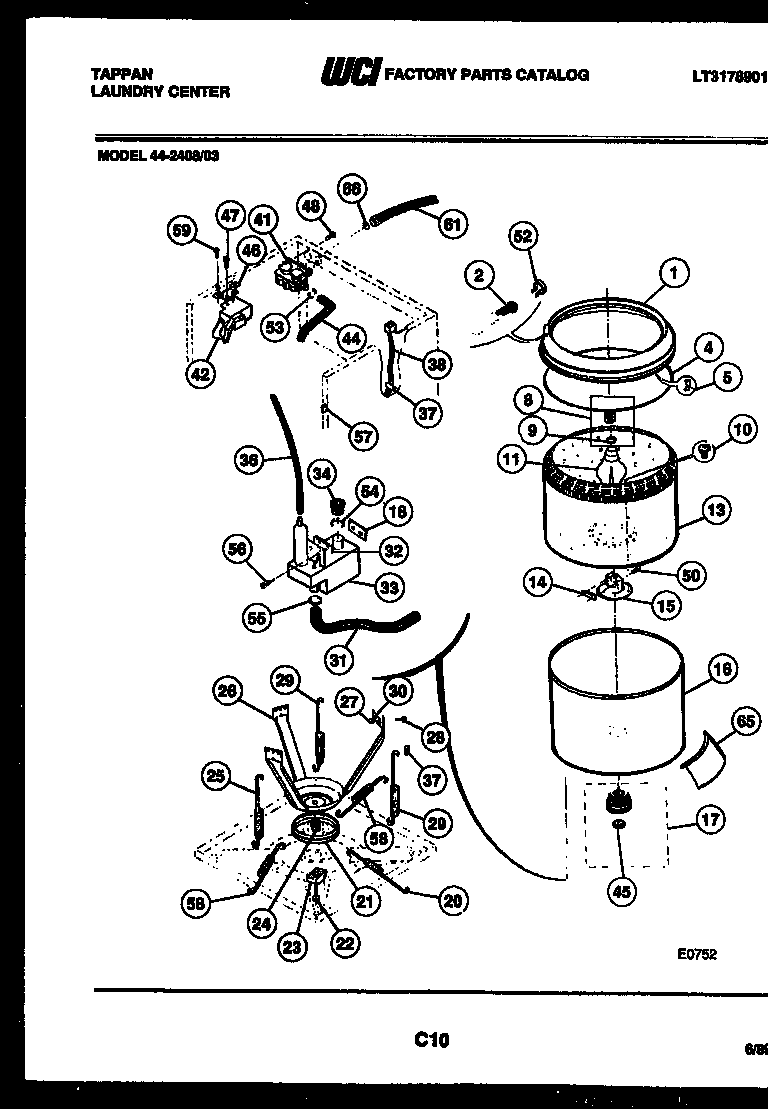

44-2408-00-03 06 – TUBS, WATER VALVE AND LID SWITCH

Products

PositionProduct
*249345303283849 Frigidaire Adhesive Clear
*24934WCI 3161147
*24934CLIP-PRESSURE TUBE (LONG)
*24934CLIP-PRESSURE-TUBE-SHORT
1WCI 3161493
2WCI 3161146
4SEAL-TUB COVER
5WCI 3161199
8CAP-AGITATOR (INCL 9)
9WCI 3161200
10WCI 3161484
11WCI 3161485
13WCI 3161486
14137107000 Frigidaire Plate
15WCI 3161126
16WCI 3161127
17WCI 3161464
18WCI 3161283
20SPRING-HORIZONTAL-LONG
21SNUBBER RING ASSEMBLY
22WCI 3161284
23BLOCK-SHIPPING
24NUT-EXPANSION
25SPRING-VERTICAL-SHORT
26LEG & DOME
27WCI 3161204
28SCREW (6)
29SPRING-VERTICAL-LONG
30WCI 3161134
31HOSE-PUMP/TRAP
32WCI 3161285
33WCI 3161136
34WCI 3161286
365304401845 Frigidaire Tube Pressure
38WCI 3017109
41134190200 Frigidaire Washer Water Valve
42WCI 3017110
44WCI 3161142
455308002401 Frigidaire Washer Primary
46WCI 3161143
47SCREW (24)
48WCI 3161290
50137539500 Frigidaire Washer Trunnion Lock Plate Bolt
52WCI 3161206
53WCI 3161207
54WCI 3161208
55WCI 3161293
56WCI 3161274
57CLIP-HARNESS
58SPRING-HORIZONTAL-SHORT
59SCREW (2)
615303912532 Frigidaire Hose Inlet 60"
65SHIELD-MOTOR (PLASTIC MOTOR SHIELD AND TAPE – FABRICATE
665303161296 Frigidaire Washer-Inlet Hose (1Piece)
