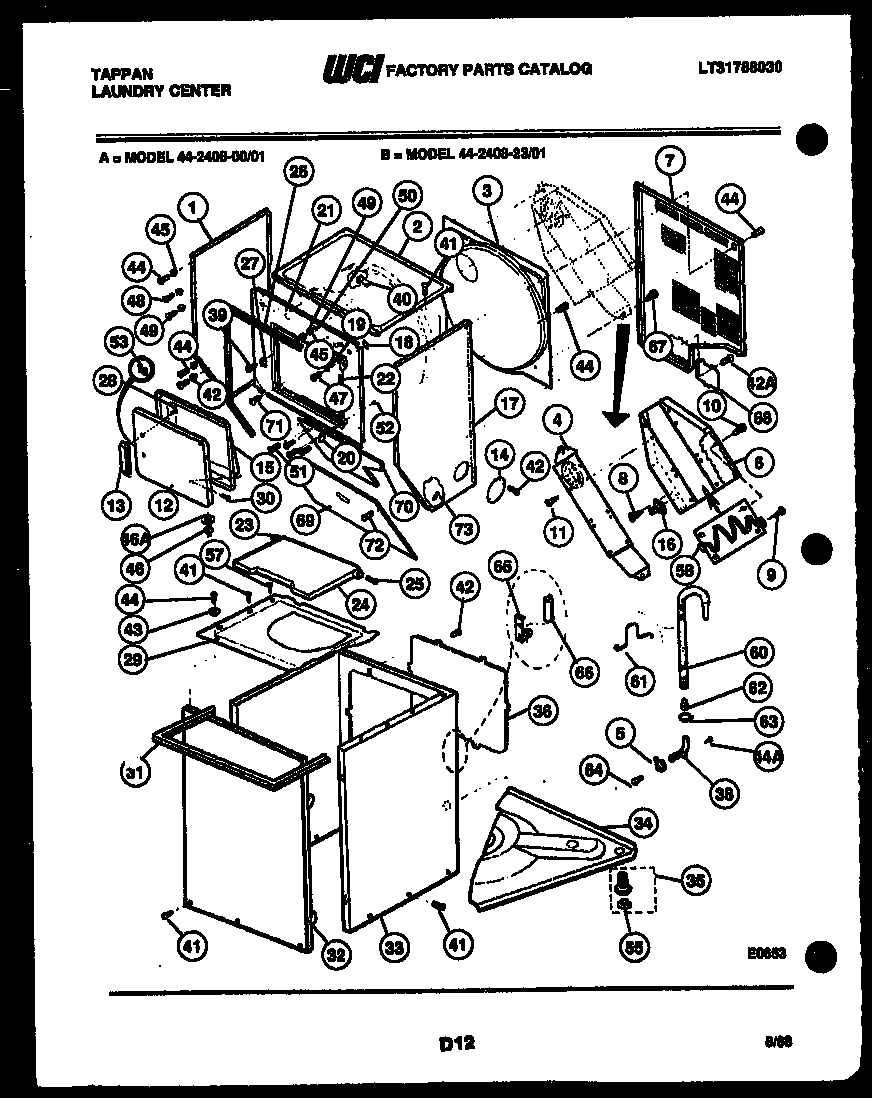

44-2408-23-01 02 – CABINET PARTS AND HEATER

Products

PositionProduct
*15833WCI 3016444
*15834WCI 3161012
*15833WCI 3161057
1PANEL-LH-DRYER-ALMD
2PNL-TOP-DRYER-ALMD
3WCI 3017111
4WCI 3161018
5CLAMP-HOSE/COUPLER
6WCI 3161019
7PANEL-VENT
9SCREW (2)
12OUTER DOOR-ALMD
13WCI 3161474
14COVER-EXHAUST-ALMD
15INNER DOOR-ALMD
16WCI 3161023
17PNL-RH-DRYER-ALMD
18WCI 3161235
19HINGE-DOOR-TOP
20HINGE-DOOR-LOWER
21WCI 3016438
22DOOR SEAL
24LLD-WASHER (ALMOND)
25WCI 3161236
26WCI 3161475
27WCI 3161476
29PNL-TOP-WASHER (ALMD)
31WCI 3161477
32PANEL-FRNT-WSHR-ALMD
33CABINET-WSHR-ALMD
34WCI 3161044
35LEG-LEVELING ASSY (4)
36WCI 3161046
38COUPLER – DRAIN HOSE
39WCI 3161237
40WCI 3161048
42131302800 Frigidaire Drum Vane Screw
42A131168200 Frigidaire Dryer Screw
44SCREW (24)
44AWCI 3161453
45RETAINER-TRIM
46WCI 3161478
46AWASHER
48SCREW (2)
49131205100 Frigidaire Screw
50SPACER (OPTIONAL) (2)
51SCREW-HNG/FRONT PNL
51ASCREW-HINGE/LINT HSG
52WCI 3161247
53WCI 3161479
55PAD-LEVELING LEG (4)
57WCI 3161185
58HEATER ASSEMBLY
60WCI 3161454
61RETAINER-DRAIN HOSE
62BUSHING-DRAIN HOSE
63WCI 3161186
63AWCI 3161250
64WCI 3161251
65BRACKET-CAPACITOR
66WCI 3161052
68COVER-TERMINAL
69PANEL-ACCESS-ALMD
70WCI 3016443
71WCI 3161187
72WCI 3161253
73SCREW (2)
