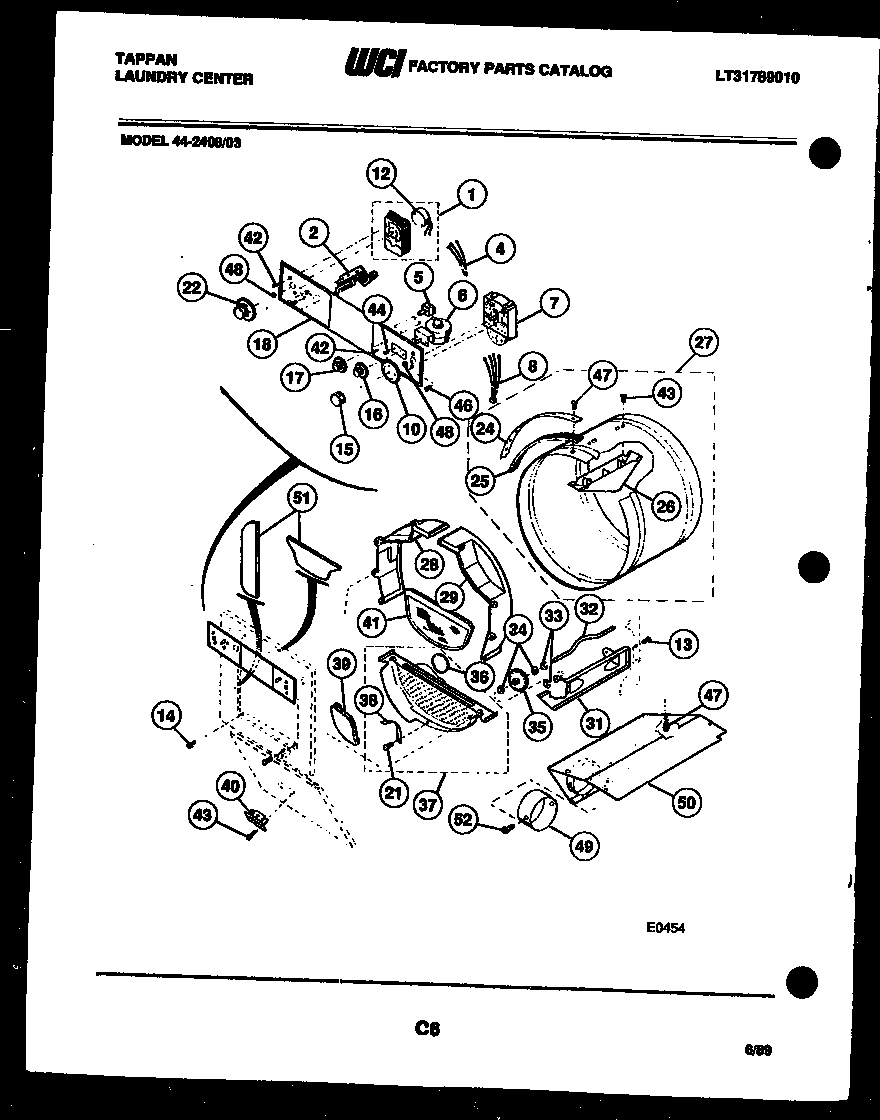

44-2408-23-03 04 – CONSOLE, CONTROL AND DRUM

Products

Position	Product
*24925	SHIELD-TIMER-WASHER
*24925	RESISTOR-SELECTOR SWITCH (3.9 K OHMS)
*24925	RESISTOR-TIMER-DRYER (4.4 K OHMS)
1	WCI 3017936
2	WCI 3017893
4	WCI 3204552
5	WCI 3017895
6	WCI 3017896
7	WCI 3017897
8	WCI 3016452
10	WCI 3017950
12	MOTOR-TIMER-DRYER
13	SCREW (24)
14	WCI 3161187
15	WCI 3017951
16	KNOB-SWITCH-PRESSURE
17	KNOB-TEMPERATURE SWITCH
18	WCI 3017952
22	KNOB & DIAL ASSY
24	BAND
25	SEAL-DRUM-FRONT
25A	WCI 3161075
26	BAFFLE-DRUM (3)
27	WCI 3004200
28	WCI 3161078
29	WCI 3161079
31	WCI 3017901
31	WCI 3017902
32	SHAFT-DRUM ROLLER (2)
33	SNAP RING (4)
34	WCI 3161256
35	ROLLER & WHEEL ASSEMBLY (4)
36	SEAL-LINT HOUSING
37	HOUSING ASSEMBLY-LINT
38	WCI 3161258
39	WCI 3161085
40	WCI 3016458
41	SCREEN-LINT
42A	CLIP (2)
42	WCI 3161259
43A	SCREW-MAGNET/PANEL (2)
43	131205100 Frigidaire Screw
46	SCREW (2)
48	WCI 8015493
49	WCI 3016459
50	WCI 3016460
51	INSULATION FRONT PANEL TOP
51A	INSULATION FRONT PANEL LH
52	131168200 Frigidaire Dryer Screw
