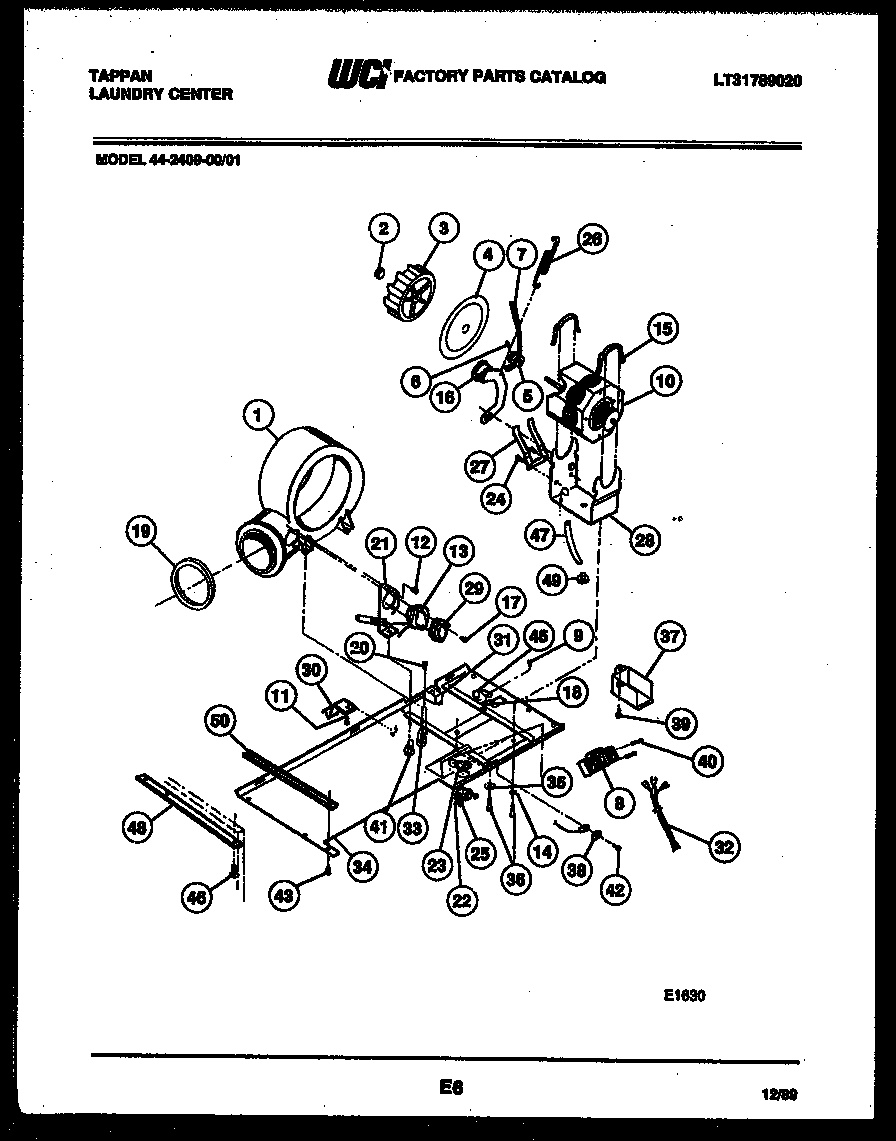

44-2409-00-01 04 – MOTOR, BLOWER AND IDLER ARM ASSEMBL

Products

Position	Product
*35110	WCI F133077-000
1	WCI 3016461
2	SPRING CLIP
3	WCI 08015787
4	WCI 00639342
5	WCI 08015796
6	WCI 08027520
7	WCI 3161099
8	WCI 3205019
9	SCREW (2)
10	WCI 3203091
12	131168200 Frigidaire Dryer Screw
13	WCI 5303206879
14	WCI 08001557
15	WCI 3161190
16	IDLER ARM & WHEEL ASSEMBLY
17	216858001 Frigidaire Refrigerator Screw
18	WCI F079171-000
19	WCI 3205021
20	WCI 08011280
21	WCI 3016464
22	STRAIN RELIEF
23	WCI 3016473
25	SCREW-STRAIN RELIEF
26	SPRING-IDLER ARM
27	WCI 08015824
28	CRADLE MOTOR
29	WCI 08015847
30	WCI 3205023
31	WCI 08004087
32	5308819002 Frigidaire Dryer 30 Amp 4'3" Cord
33	131205100 Frigidaire Screw
34	BASE-DRYER
35	WCI 08002468
37	WCI 3205025
38	WCI 08001572
39	WCI 3205020
40	WCI 3161274
41	SCREW (4)
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
45	WCI 08006557
46	WCI 08027582
47	5304401845 Frigidaire Tube Pressure
48	BRACE
49	WCI 08006559
50	WCI 3016469
