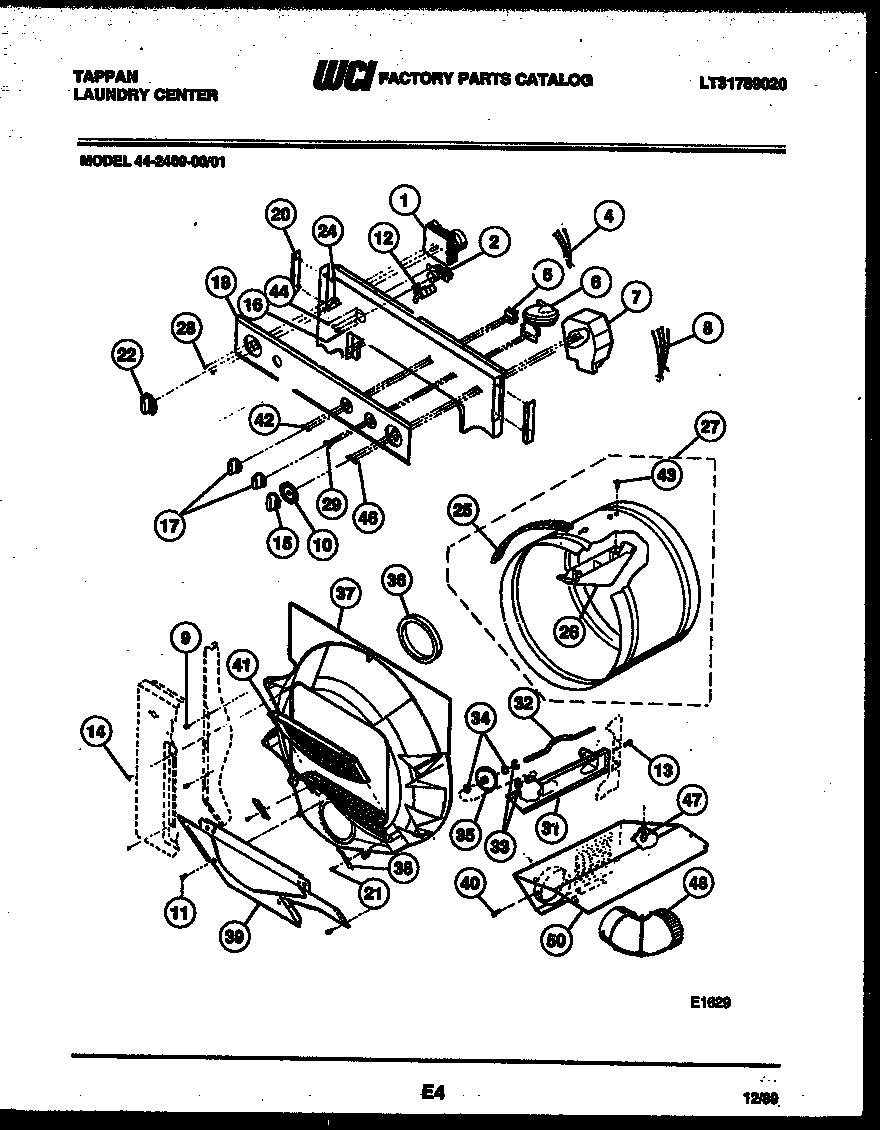

44-2409-23-01 03 – CONSOLE, CONTROL AND DRUM

Products

PositionProduct
*35106WCI F065111-001
*35105WCI 3181110
1WCI 3205944
2WCI F135006-100
4WCI 3205945
5WCI 3017895
6WCI 3205946
7WCI 3017897
8WCI 3204998
10WCI 3204999
12WCI 3205000
13WCI 08011280
14WCI 08006549
15WCI 3205947
17WCI 3205948
18TRIMPLATE
20WCI 3205006
21216858001 Frigidaire Refrigerator Screw
22KNOB & DIAL ASSY
24WCI 3205008
25WCI 3205009
26BAFFLE-DRUM (3)
27WCI 3205010
31BRACKET-DRUM ROLLER RH
31ABRACKET-DRUM ROLLER LH
32WCI 08004076
33SNAP RING (4)
34WCI 3161256
35WCI 08004077
36WCI 3205011
37WCI 3205012
38GUIDE (2)
39COVER-LINT HSG
40SCREW (2)
41WCI 3205015
42WCI 3161259
43131205100 Frigidaire Screw
44WCI 08010804
46WCI 08001544
47WCI 3205016
48WCI 3205017
50WCI 3205018
