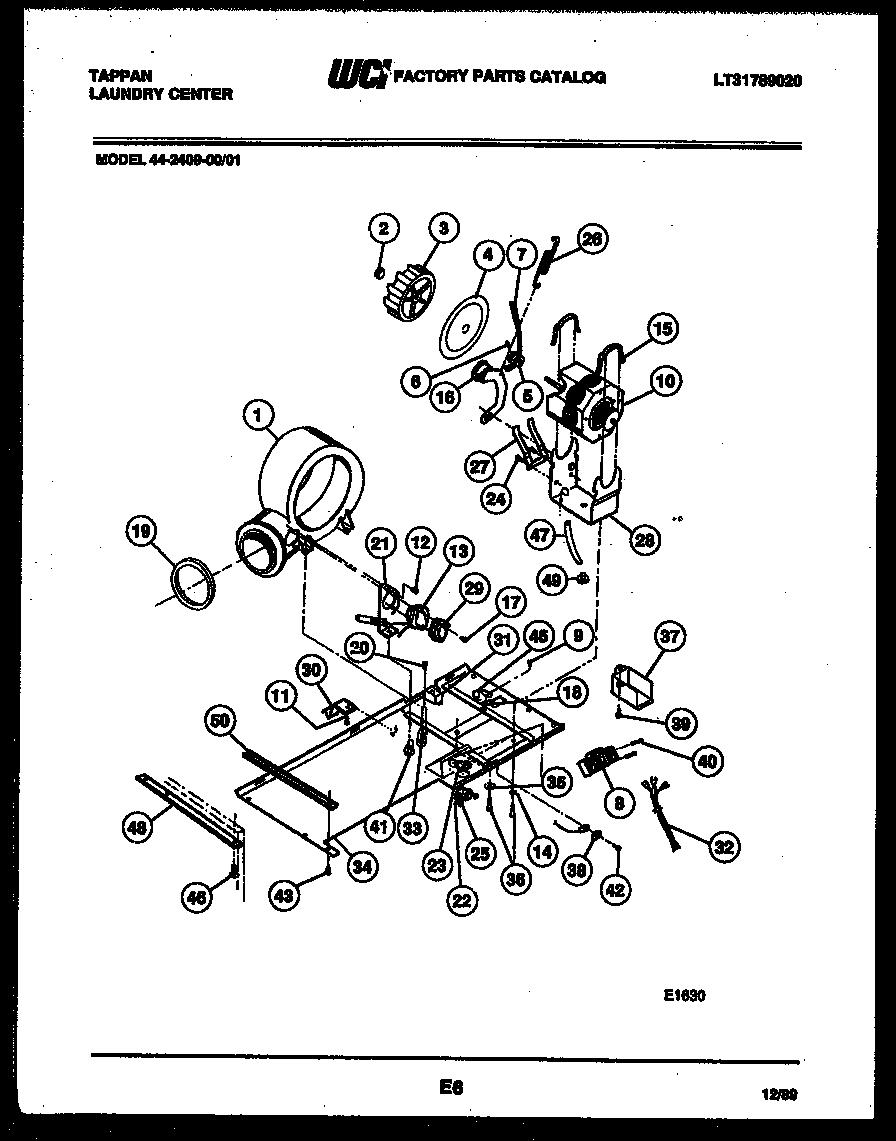

44-2409-23-01 04 – MOTOR, BLOWER AND IDLER ARM ASSEMBL

Products

PositionProduct
*35110WCI F133077-000
1WCI 3016461
2SPRING CLIP
3WCI 08015787
4WCI 00639342
5WCI 08015796
6WCI 08027520
7WCI 3161099
8WCI 3205019
9SCREW (2)
10WCI 3203091
12131168200 Frigidaire Dryer Screw
13WCI 5303206879
14WCI 08001557
15WCI 3161190
16IDLER ARM & WHEEL ASSEMBLY
17216858001 Frigidaire Refrigerator Screw
18WCI F079171-000
19WCI 3205021
20WCI 08011280
21WCI 3016464
22STRAIN RELIEF
23WCI 3016473
25SCREW-STRAIN RELIEF
26SPRING-IDLER ARM
27WCI 08015824
28CRADLE MOTOR
29WCI 08015847
30WCI 3205023
31WCI 08004087
325308819002 Frigidaire Dryer 30 Amp 4'3" Cord
33131205100 Frigidaire Screw
34BASE-DRYER
35WCI 08002468
37WCI 3205025
38WCI 08001572
39WCI 3205020
40WCI 3161274
41SCREW (4)
42134154100 Frigidaire Screw 10-32 x 0.375 Co
45WCI 08006557
46WCI 08027582
475304401845 Frigidaire Tube Pressure
48BRACE
49WCI 08006559
50WCI 3016469
