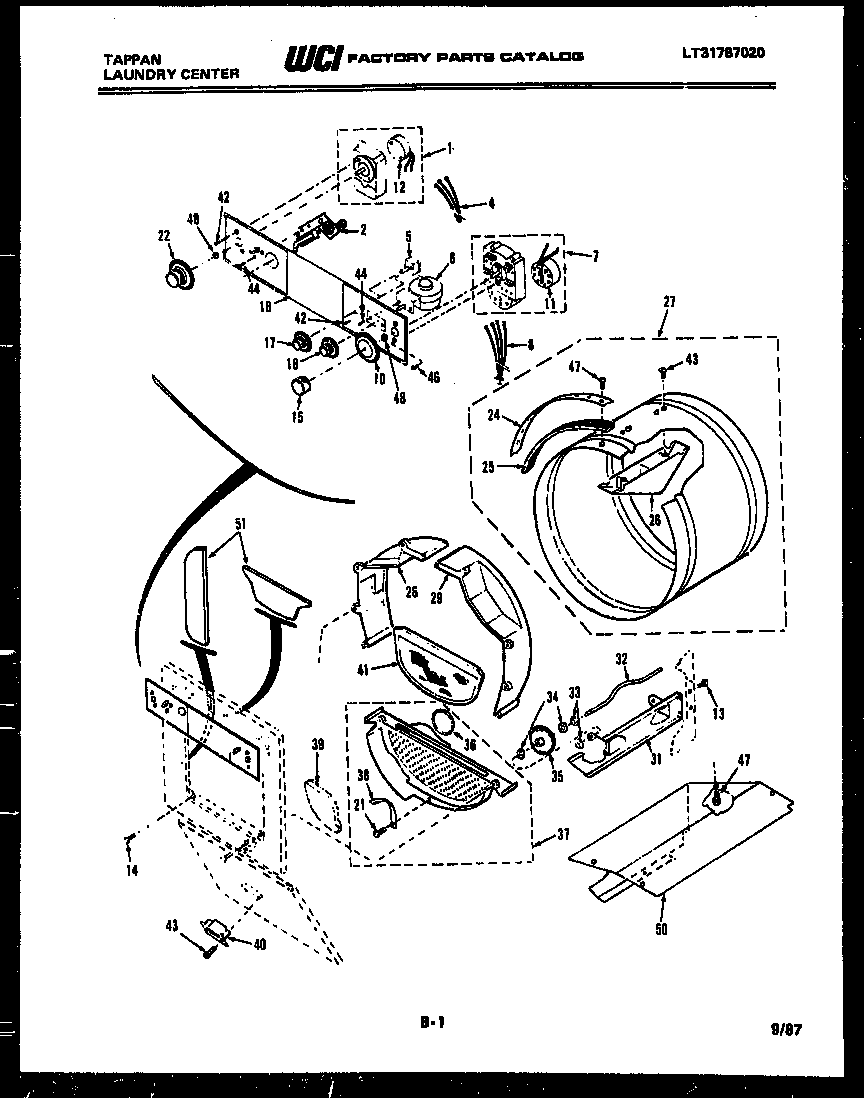

44-2417-00-01 03 – CONSOLE, CONTROLS AND DRUM

Products

Position	Product
*61546	SHIELD-TIMER-WASHER
*61547	RESISTOR-SELECTOR SWITCH (3.9 K OHMS)
*61547	RESISTOR-TIMER-DRYER (4.4 K OHMS)
1	TMR-& MTR-DRYR
2	SWITCH-START/DOOR
4	WCI 3161060
5	SWITCH-WTR TEMP
6	WCI 3161480
7	TMR & MTR-WSHR
8	HARNESS-UPPER-WASHER-MOTOR
10	DIAL-INDICATOR
11	MOTOR-TIMER-WSHR
12	MOTOR-TIMER-DRYER
13	SCREW (24)
14	WCI 3161187
15	KNOB-WSHR TMR
16	KNOB-SWITCH-PRESSURE
17	KNOB-TEMPERATURE SWITCH
18	WCI 3161071
22	KNOB & DIAL ASSY
24	BAND
25A	WCI 3161075
25	SEAL-DRUM-FRONT
26	BAFFLE-DRUM (3)
27	WCI 3161077
28	WCI 3161078
29	WCI 3161079
31	BRACKET-DRUM ROLLER RH
31A	BRACKET-DRUM ROLLER LH
32	SHAFT-DRUM ROLLER (2)
33	SNAP RING (4)
34	WCI 3161256
35	ROLLER & WHEEL ASSEMBLY (4)
36	SEAL-LINT HOUSING
37	HOUSING ASSEMBLY-LINT
38	WCI 3161258
39	WCI 3161085
40	MAGNET ASSY-WHTE
41	SCREEN-LINT
42A	SCREW (2)
42	WCI 3161259
43	131205100 Frigidaire Screw
43A	SCREW-MAGNET/PANEL (2)
44	131243800 Frigidaire Screw
46	WCI 3161185
47	WCI 316123
48	SPACER-TMR-WSHR
48	WCI 3161481
50	WCI 3161089
51A	INSULATION FRONT PANEL LH
51	INSULATION FRONT PANEL TOP
