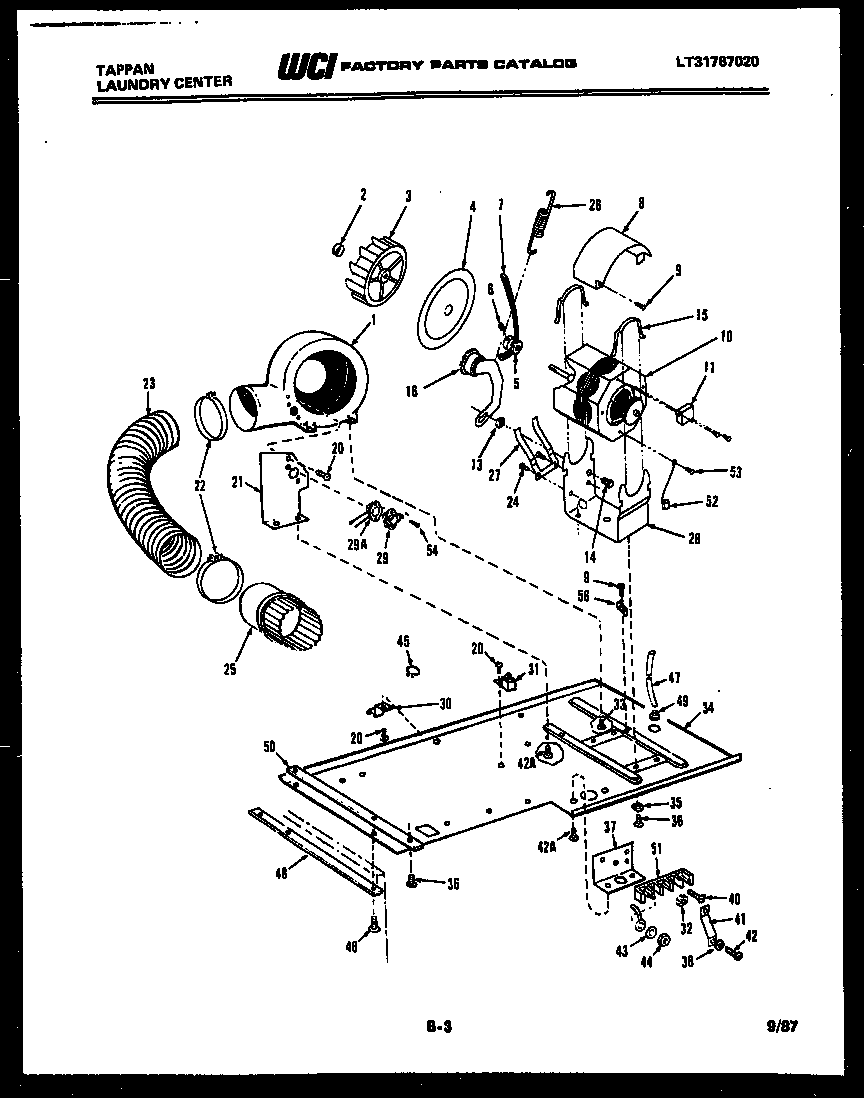

44-2417-23-01 04 – DRYER MOTOR, BLOWER AND BELT

Products

Position	Product
*61576	NYLUBE LUBRICANT
*61576	5308819002 Frigidaire Dryer 30 Amp 4'3" Cord
1	WCI 3161095
2	SPRING CLIP
3	WCI 3161096
4	PLATE-BLOWER HOUSING
5	PULLEY-MOTOR
6	WCI 3161264
7	WCI 3161099
8	WCI 3161482
9	SCREW (2)
10	DRYER MOTOR & SWITCH ASSEMBLY
11	SWITCH-MOTOR (GE)
13	WCI 3161265
14	WCI 3161189
15	WCI 3161190
16	IDLER ARM & WHEEL ASSEMBLY
20	SCREW (24)
21	BRKT-THERMO MTG
22	5304436333 Frigidaire C500 Gal Worm Gear 4
23	WCI 3161104
25	WCI 3161105
26	SPRING-IDLER ARM
27	WCI 3161269
28	MOTOR CRADLE
29	THERMOSTAT-CONTROL
29A	HEATER-THERMOSTAT
30	WCI 3161270
31	WCI 3161271
32	NUT (SILVER) (2)
33	131205100 Frigidaire Screw
34	DRYER BASE
35A	WCI 3161193
35	WCI 3161192
36	SCREW (4)
37	WCI 3161273
38	WCI 3161194
40	WCI 3161274
41	GROUND STRAP
42A	SCREW (4)
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
43	WASHER (BRASS) (3)
44	NUT (BRASS) (4)
45	WCI 3161276
46	WCI 3161277
47	5304401845 Frigidaire Tube Pressure
48	BRACE (2)
49	CONNECTER
50	PLATE (2)
51	5304409888 Frigidaire Oven Terminal Block with Hardware
52	WCI 3161278
53	WCI 3161279
54	SCREW (2)
56	WCI 3161198
