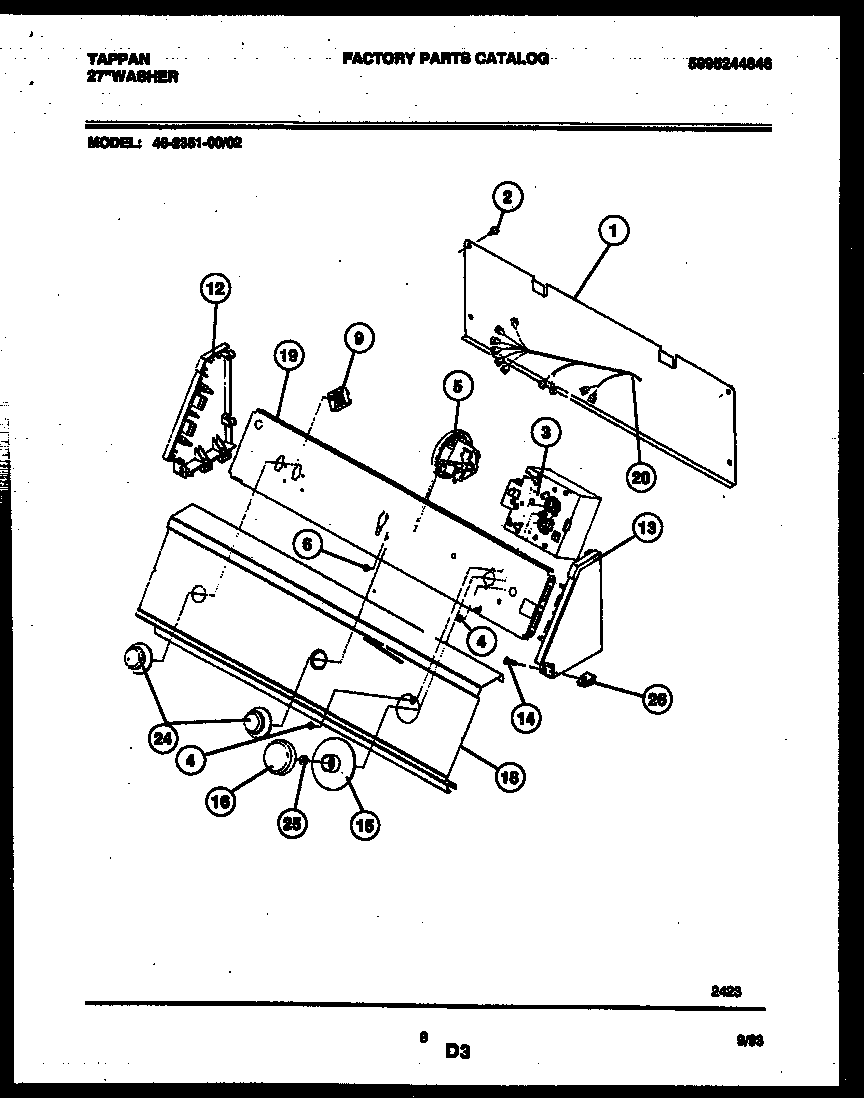

46-2351-00-02 05 – CONSOLE AND CONTROL PARTS

46-2351-00-02 05 – CONSOLE AND CONTROL PARTS

Written by

in

46-2351-00-02 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*90162SCREW
*90161131243800 Frigidaire Screw
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 5303271759
4SCREW (2)
5WCI 131047500
6131168200 Frigidaire Dryer Screw
9WCI 131047000
12WCI 5303291344
13WCI 5303291352
14WCI 5303289526
15WCI 131030500
16WCI 131030400
18WCI 131049300
19BRACKET CONTROLS
20WCI 131165600
24WCI 131032500
25Spacer,washer ,timer shaft
26CLIP
