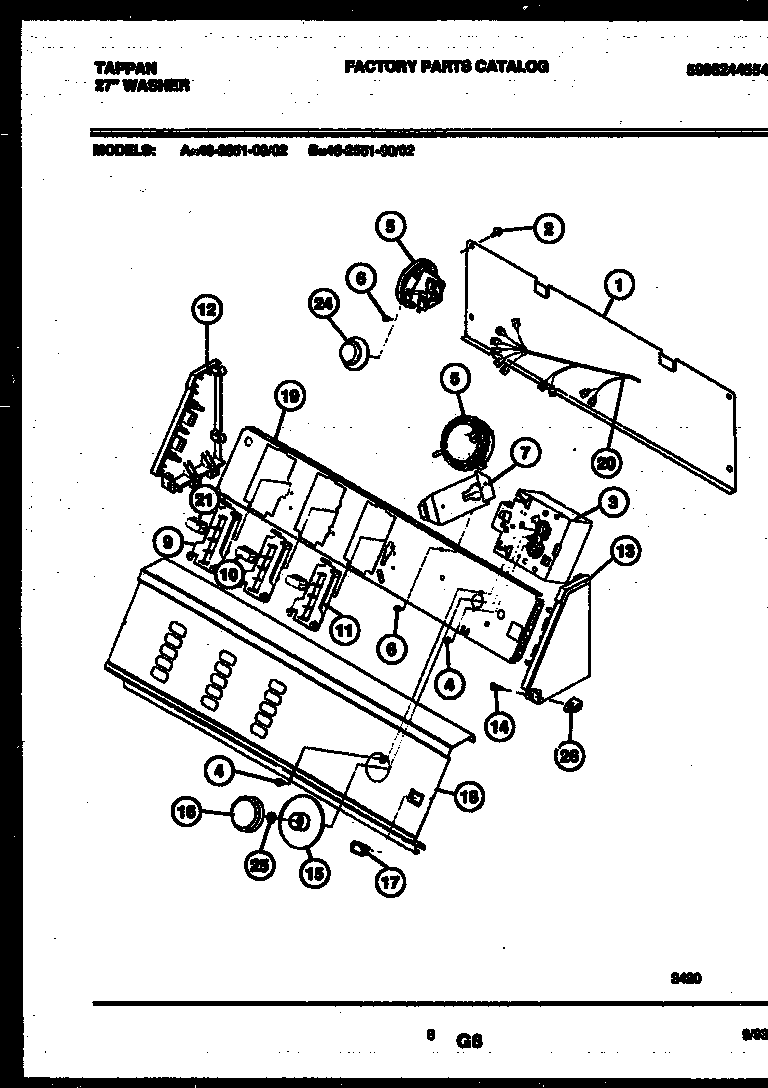

46-2551-00-02 05 – CONSOLE AND CONTROL PARTS

46-2551-00-02 05 – CONSOLE AND CONTROL PARTS

Written by

in

46-2551-00-02 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*89782SCREW
*89781131243800 Frigidaire Screw
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 5303271769
4SCREW (2)
5WCI 131047700
6131168200 Frigidaire Dryer Screw
7WCI 5303291342
9WCI 131047600
10WCI 131118100
12WCI 5303291344
13WCI 5303291352
14WCI 5303289526
15WCI 131030500
16WCI 131030400
18WCI 131050800
19WCI 131157805
20WCI 131165700
21PUSHBUTTON (4)
24WCI 131032500
25Spacer,washer ,timer shaft
26CLIP
