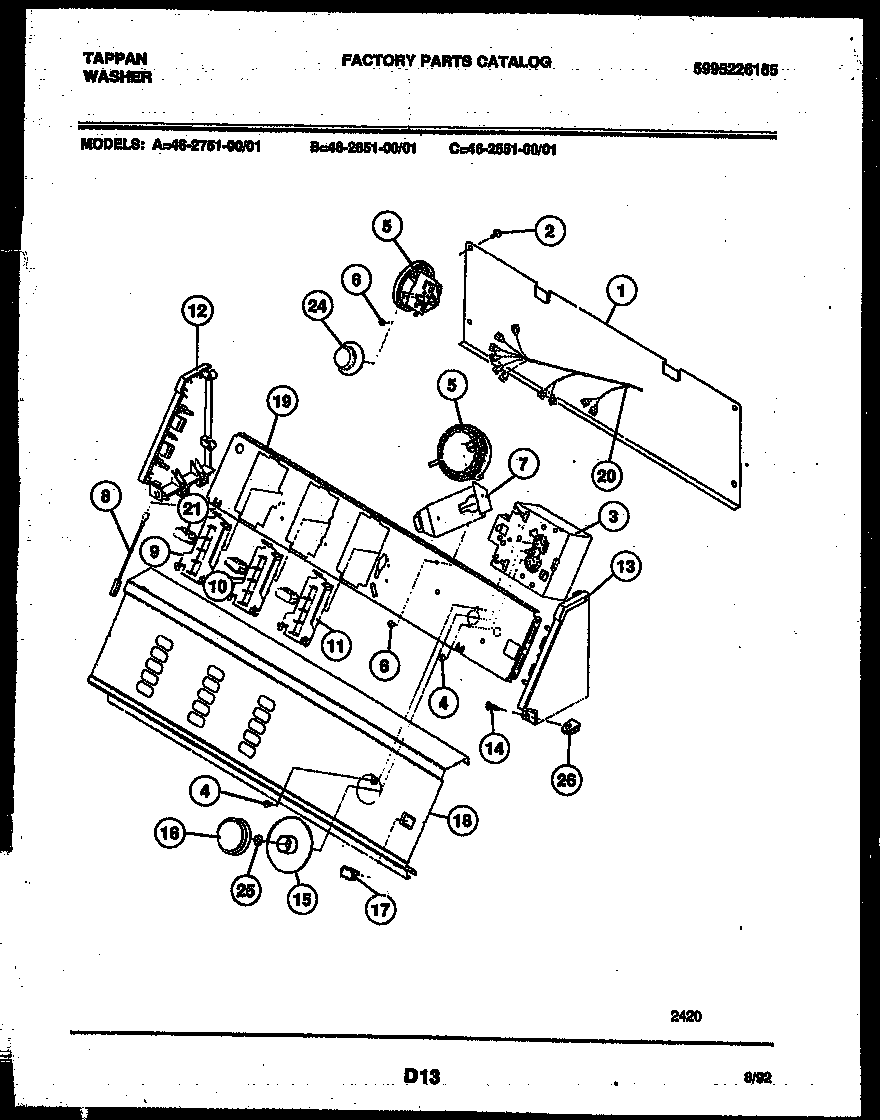

46-2751-00-01 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*76766	131243800 Frigidaire Screw
*76766	SCREW
1	COVER-BACK
2	131205100 Frigidaire Screw
3	WCI 5303271772
4	SCREW (2)
5	WCI 5303291341
6	5303015671 Frigidaire Bracket Termination Screw
7	WCI 5303291342
8	WCI 131062204
9	WCI 131048600
10	WCI 131047800
11	WCI 131047900
12	WCI 5303291343
13	WCI 5303291351
14	WCI 3205820
15	WCI 131030501
16	WCI 131030401
17	WCI 5303291408
18	WCI 131051800
19	WCI 5303291354
20	WCI 131060300
21	PUSHBUTTON (4)
25	Spacer,washer ,timer shaft
26	CLIP
