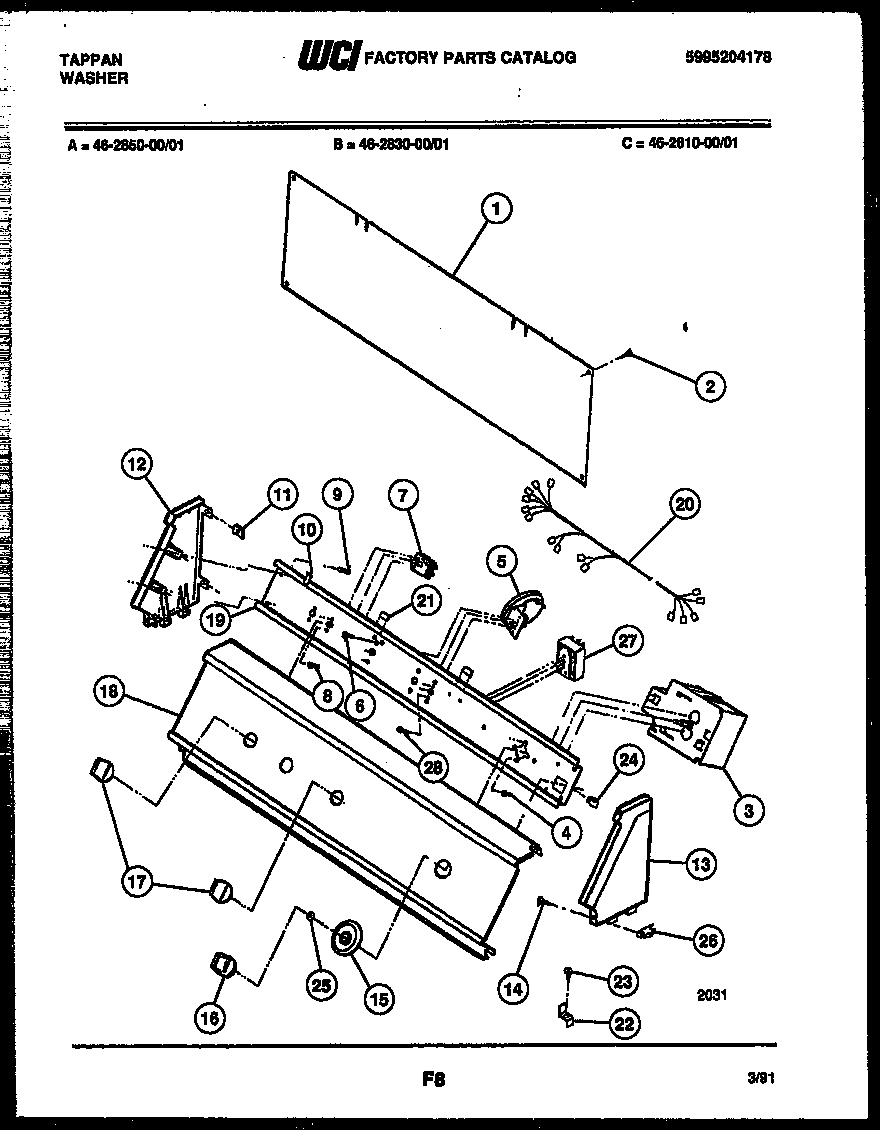

46-2830-00-01 05 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
2	WCI 5303105671
3	WCI 5303271771
4	SCREW (2)
5	WCI 5303210964
6	131168200 Frigidaire Dryer Screw
7	WCI 5303210132
8	WCI 3161259
9	5303015671 Frigidaire Bracket Termination Screw
10	WCI 3281200
11	CLIP (8)
12	WCI 3205979
13	WCI 3205978
14	SCREW (2)
15	WCI 5303210966
16	WCI 5303210967
17	WCI 5303281198
18	WCI 5303211285
19	WCI 5303210137
20	WCI 5303212628
21	PAD (2)
22	WCI 5379171000
23	131243800 Frigidaire Screw
24	WCI F142313-000
25	Spacer,washer ,timer shaft
26	CLIP
