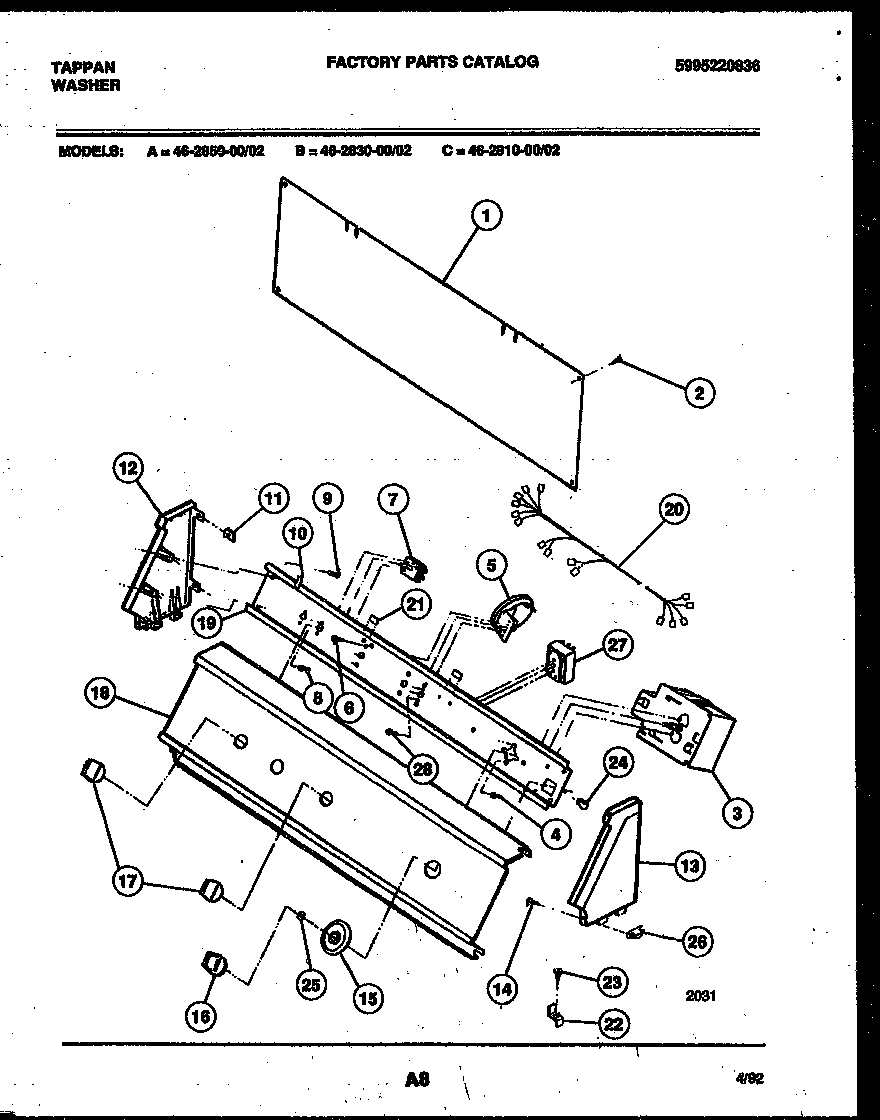

46-2830-23-02 05 – CONSOLE AND CONTROL PARTS

46-2830-23-02 05 – CONSOLE AND CONTROL PARTS

Written by

in

46-2830-23-02 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
3WCI 5303271765
4SCREW (2)
5WCI 5303210964
6131168200 Frigidaire Dryer Screw
7WCI 5303210132
95303015671 Frigidaire Bracket Termination Screw
10WCI 3281200
11CLIP (8)
12WCI 3205979
13WCI 3205978
14SCREW (2)
15WCI 5303210966
16WCI 5303210967
17WCI 5303281198
18WCI 5303211284
19WCI 5303210137
20WCI 5303212623
21PAD (2)
22WCI 5379171000
23131243800 Frigidaire Screw
24WCI 5303285493
25Spacer,washer ,timer shaft
26CLIP
27WCI 5303211019
28WCI 3161259
