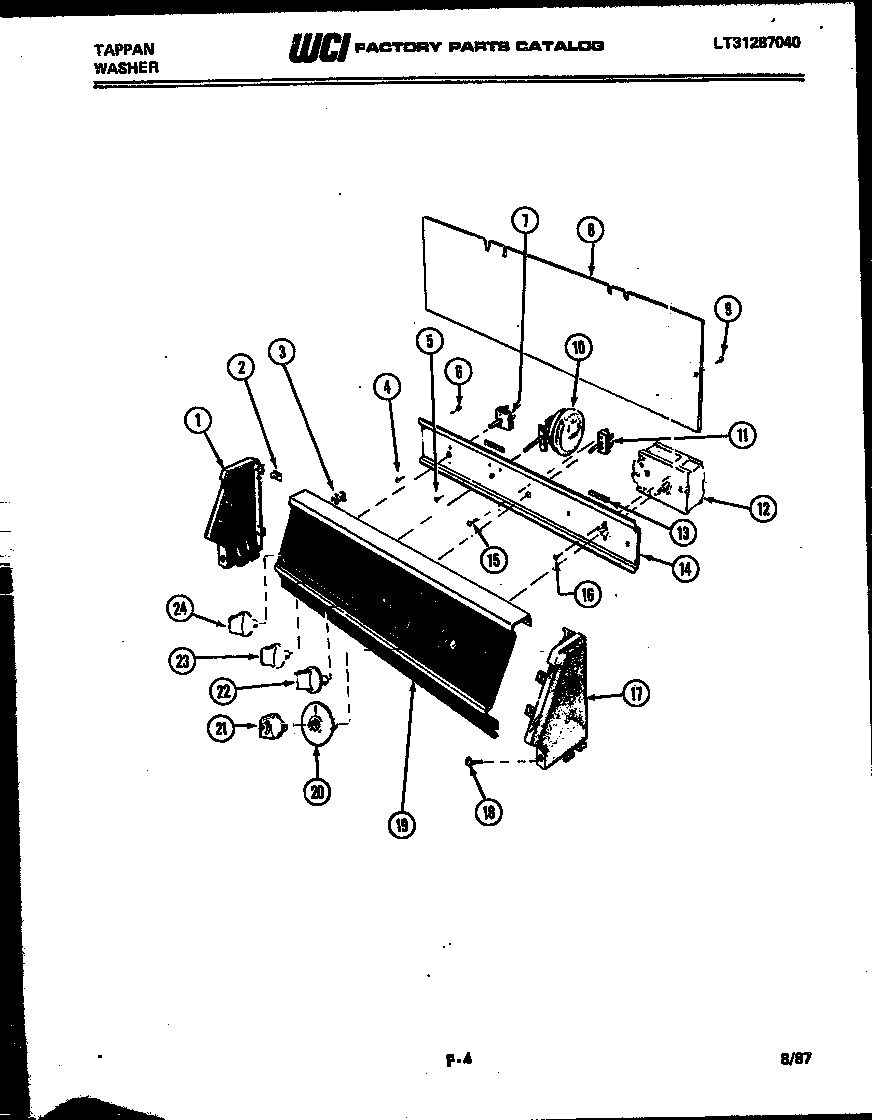

46-2837-23-02 02 – CONSOLE AND CONTROL PARTS

46-2837-23-02 02 – CONSOLE AND CONTROL PARTS

Written by

in

46-2837-23-02 02 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	WCI 3281189
2	WCI 3281199
3	WCI 3281200
4	SCREW
7	WCI 3161317
8	COVER-BACK
9	SCREW (2)
10	WCI 3161318
12	WCI 3161320
13	WCI 3281201
14	WCI 3281202
16	SCREW (2)
17	WCI 3281191
18	SCREW (2)
19	WCI 3161315
20	WCI 3161313
21	WCI 3161312
24	KNOB, TEMP SW
