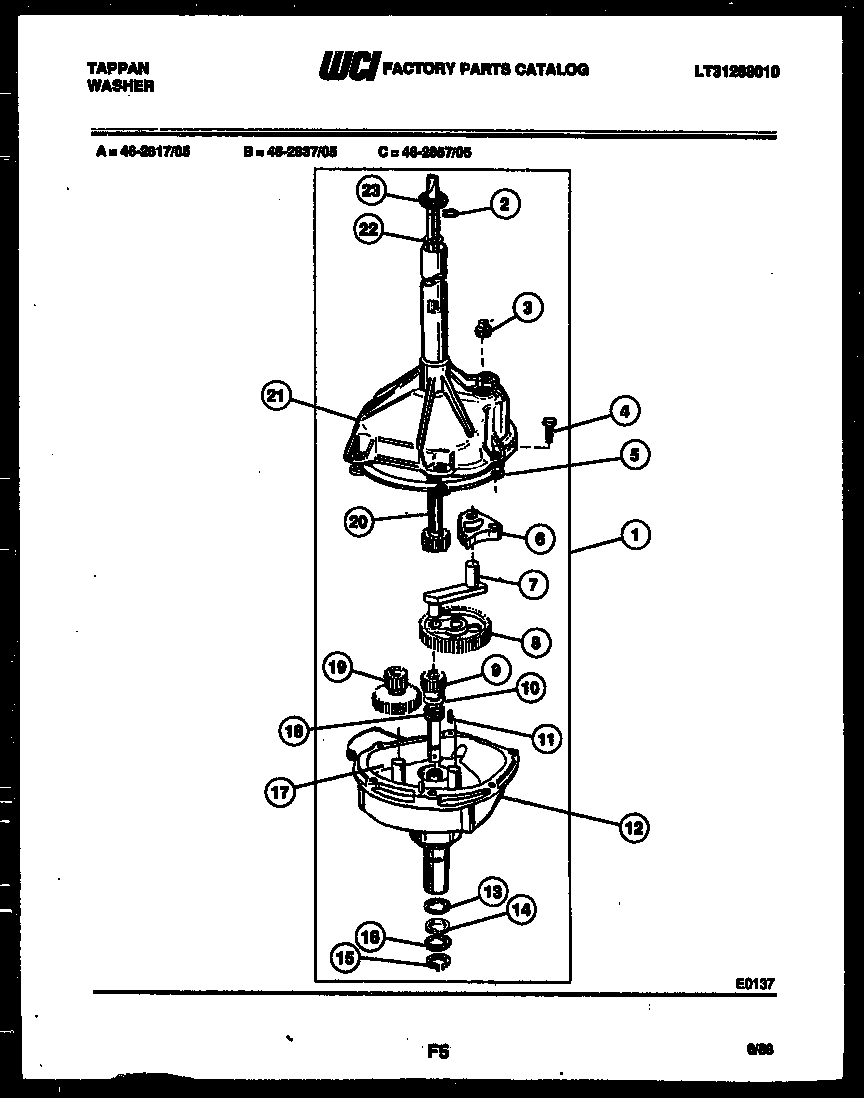

46-2837-23-05 07 – TRANSMISSION PARTS

Products

Position	Product
1	134735700 Frigidaire Transmission Assembly
3	PIPE PLUG
4	WCI 3161225
5	WCI 3161308
6	SECTOR GEAR
7	WCI 3161169
8	WCI 3161170
9	WCI 3161178
11	DOWEL PIN
12	LOWER HOUSING ASSEMBLY (INC 13)
13	5303161173 Frigidaire Seal Assembly
14	THRUST WASHER
15	WCI 3161223
16	WASHER-SPACER
17	OIL-TRANSMISSION-1 QUART
18	LGS SPRING-SMALL
19	WCI 3161175
20	WCI 3161437
21	WCI 3161436
22	THRUST WASHER
23	5303161307 Frigidaire Dryer Seal Assembly
