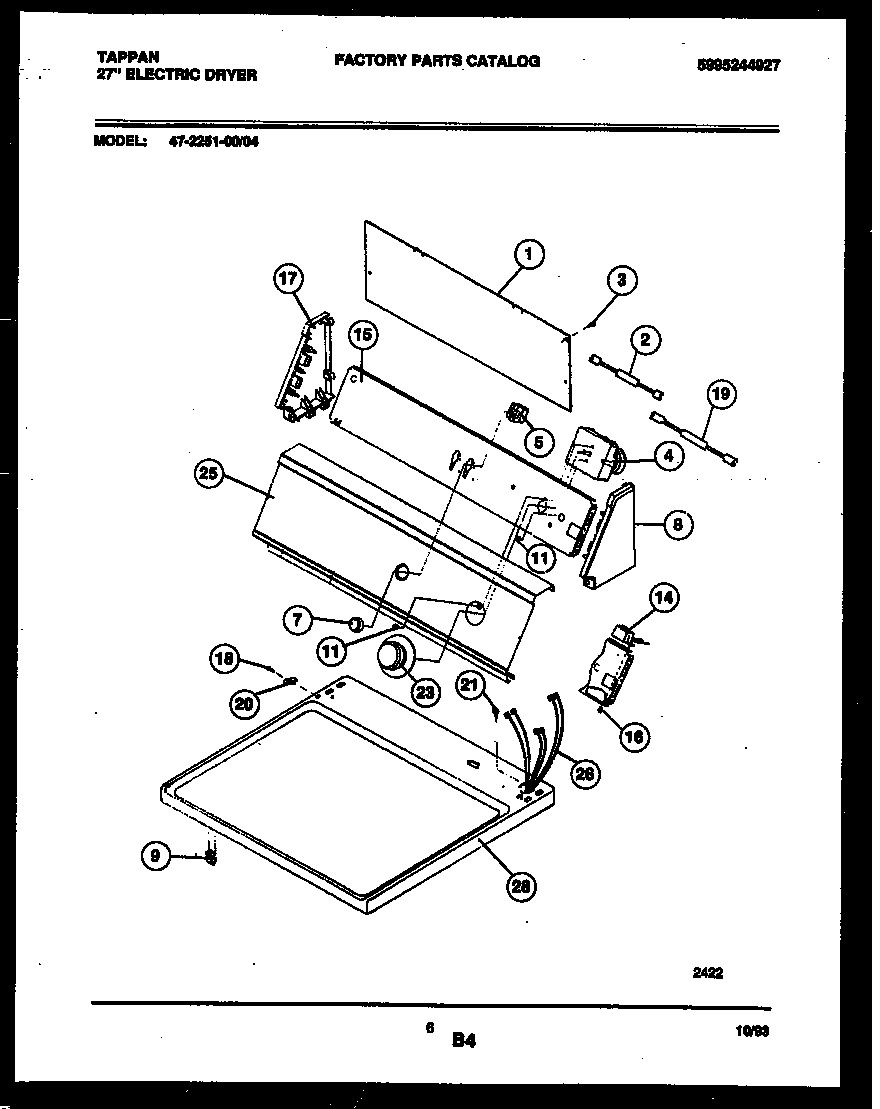

47-2251-23-04 04 – CONSOLE AND CONTROL PARTS

47-2251-23-04 04 – CONSOLE AND CONTROL PARTS

Written by

in

47-2251-23-04 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
2RESISTOR-POWER, 4.4K
3131205100 Frigidaire Screw
4131062300 Frigidaire Timer
5WCI 131048000
7KNOB-START SWITCH, BLACK
8WCI 5303291352
93205821 Frigidaire Clip
11218359202 Frigidaire Refrigerator Screw
14WCI 5303210285
15BRACKET CONTROLS
165303015671 Frigidaire Bracket Termination Screw
17WCI 5303291344
18WCI 5303289526
19RESISTOR, 3.0K
20CLIP-CONSOLE MTG
21131243800 Frigidaire Screw
23KNOB-TIMER
25WCI 131103900
26WCI 131112300
28WCI 131130304
