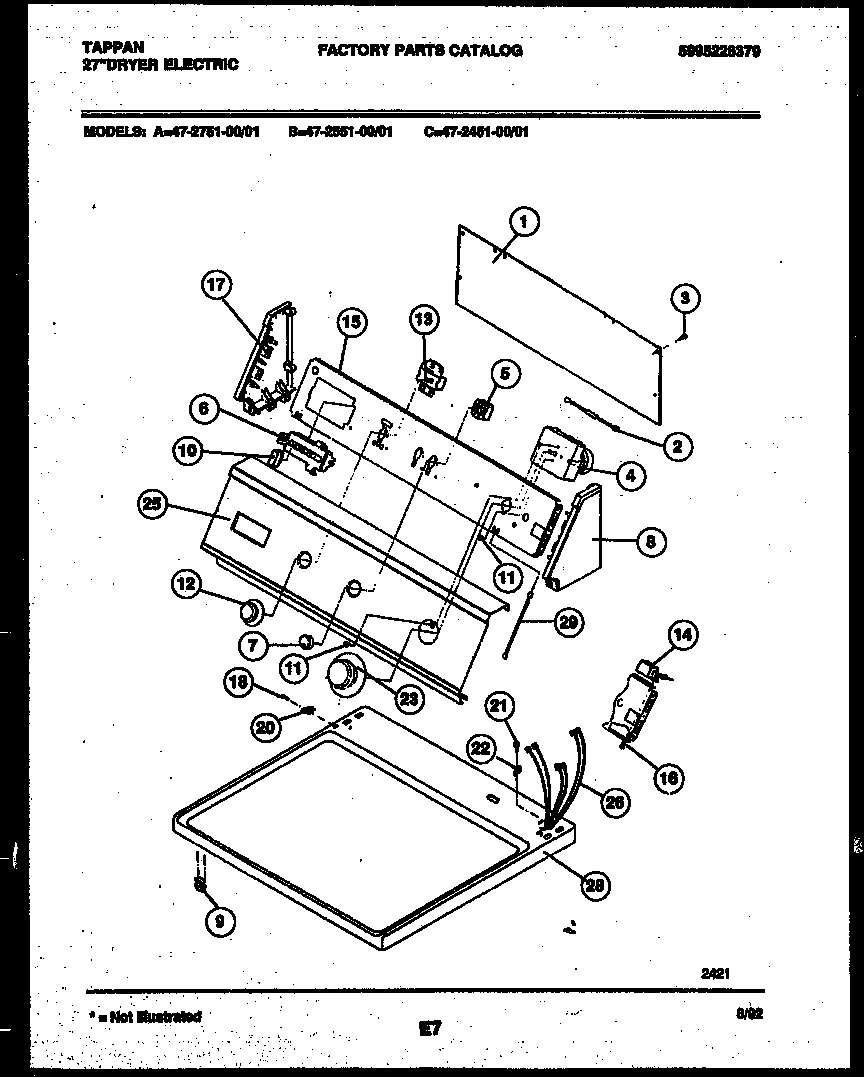

47-2451-00-01 04 – CONSOLE AND CONTROL PARTS

47-2451-00-01 04 – CONSOLE AND CONTROL PARTS

Written by

in

47-2451-00-01 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
2RESISTOR
3131205100 Frigidaire Screw
4WCI 131062600
5WCI 131048000
6WCI 131048200
7WCI 131032900
8WCI 5303291352
93205821 Frigidaire Clip
10PUSHBUTTON (4)
11218359202 Frigidaire Refrigerator Screw
12WCI 131032500
13WCI 131048300
15WCI 5303291355
17WCI 5303291344
18WCI 5303289526
20CLIP
21131243800 Frigidaire Screw
22WCI 5379171000
23WCI 131030800
25WCI 131058700
26WCI 131005000
28PANEL-TOP-WHITE
29WCI 3201385
