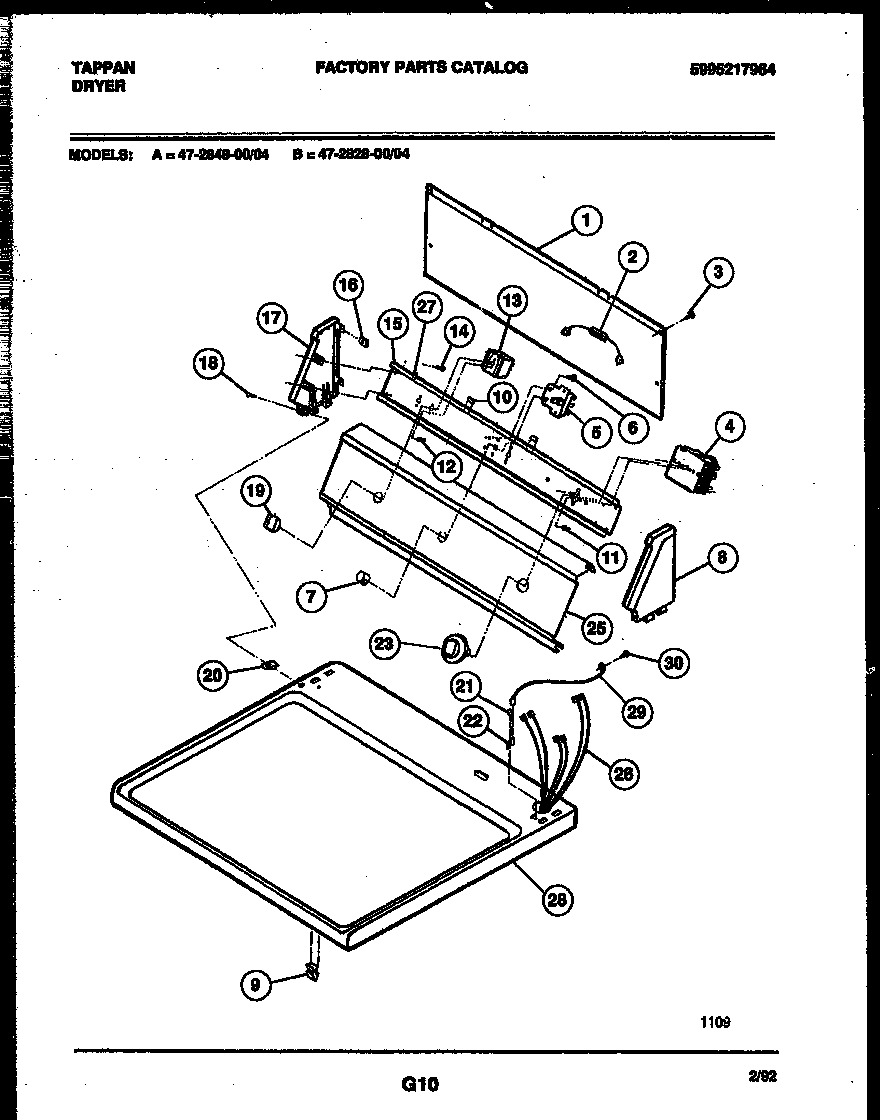

47-2828-00-04 04 – CONSOLE AND CONTROL PARTS

47-2828-00-04 04 – CONSOLE AND CONTROL PARTS

Written by

in

47-2828-00-04 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
3SCREW
4WCI 5303283994
5SWITCH – START
6WCI 08001544
7WCI 3201220
8WCI 3205978
93205821 Frigidaire Clip
10PAD (2)
11218359202 Frigidaire Refrigerator Screw
12WCI 3281101
14SCREW (2)
15WCI 3205841
16WCI 08014350
17WCI 3205979
18SCREW (2)
20WCI 3281192
21131243800 Frigidaire Screw
22WCI 3161198
23WCI 3205843
25WCI 3205981
26WCI 5303270870
26A5303303590 Frigidaire Dryer 4.0" Cable Tie
27WCI 3281200
28PANEL-TOP-WHITE
29WCI 3201308
30SCREW (2)
