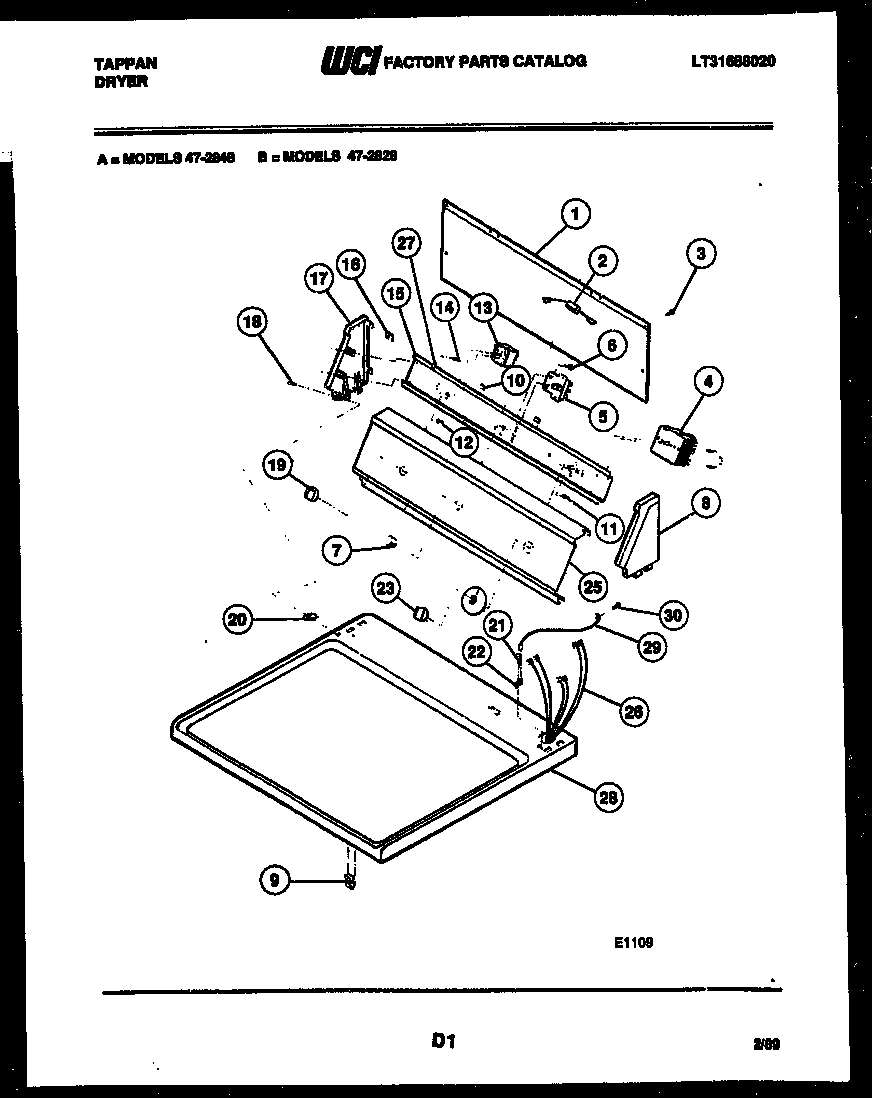

47-2828-23-01 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
2RESISTOR
3SCREW
4WCI 3281184
5SWITCH – START
6WCI 08001544
7WCI 3201220
8WCI 3281191
9SPRING CATCH
10PAD
11SCREW (2)
12WCI 3281101
13SWITCH-SELECTOR
14SCREW (2)
15BRACKET-MOUNTING
16WCI 08014350
17WCI 3281189
18WCI 32811023
19KNOB, TEMP SW
20WCI 3281192
21131243800 Frigidaire Screw
22WCI 3161198
23WCI 3281195
25WCI 3281196
26A5303303590 Frigidaire Dryer 4.0" Cable Tie
26WCI 3201307
27CLIP-GROUND
28PANEL-TOP ALMD
28PANEL-TOP WHITE
29WCI 3201308
30SCREW (2)
