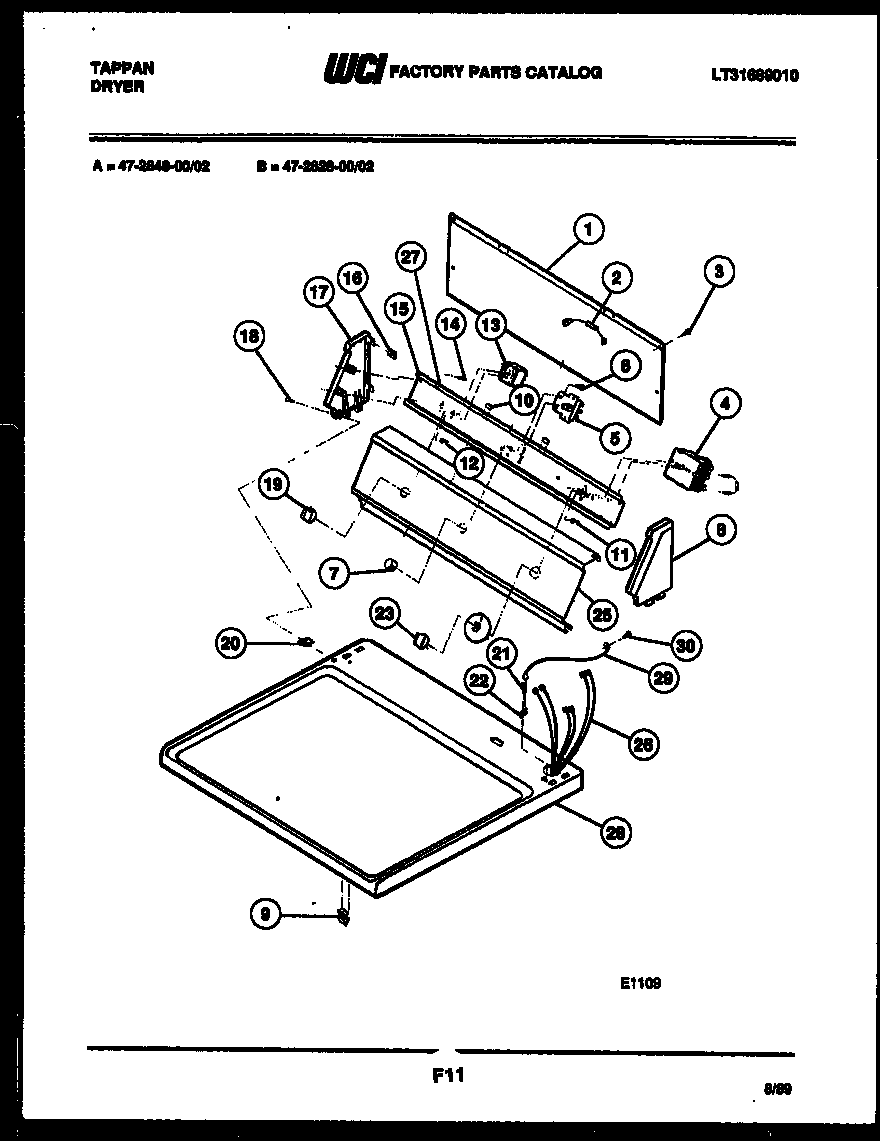

47-2828-23-02 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	BACK COVER
2	RESISTOR
3	SCREW
4	WCI Q000630113
5	SWITCH – START
6	WCI 08001544
7	WCI 3201220
8	WCI 3205978
9	3205821 Frigidaire Clip
10	PAD
11	SCREW (2)
12	WCI 3281101
13	SWITCH-SELECTOR
14	SCREW (2)
15	WCI 3205841
16	WCI 08014350
17	WCI 3205979
18	SCREW (2)
19	KNOB, TEMP SW
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI 3161198
23	WCI 3205843
25	WCI 3205980
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
27	CLIP-GROUND
28	PANEL TOP-WHITE
28	PANEL-TOP ALMD
29	WCI 3201308
30	SCREW (2)
