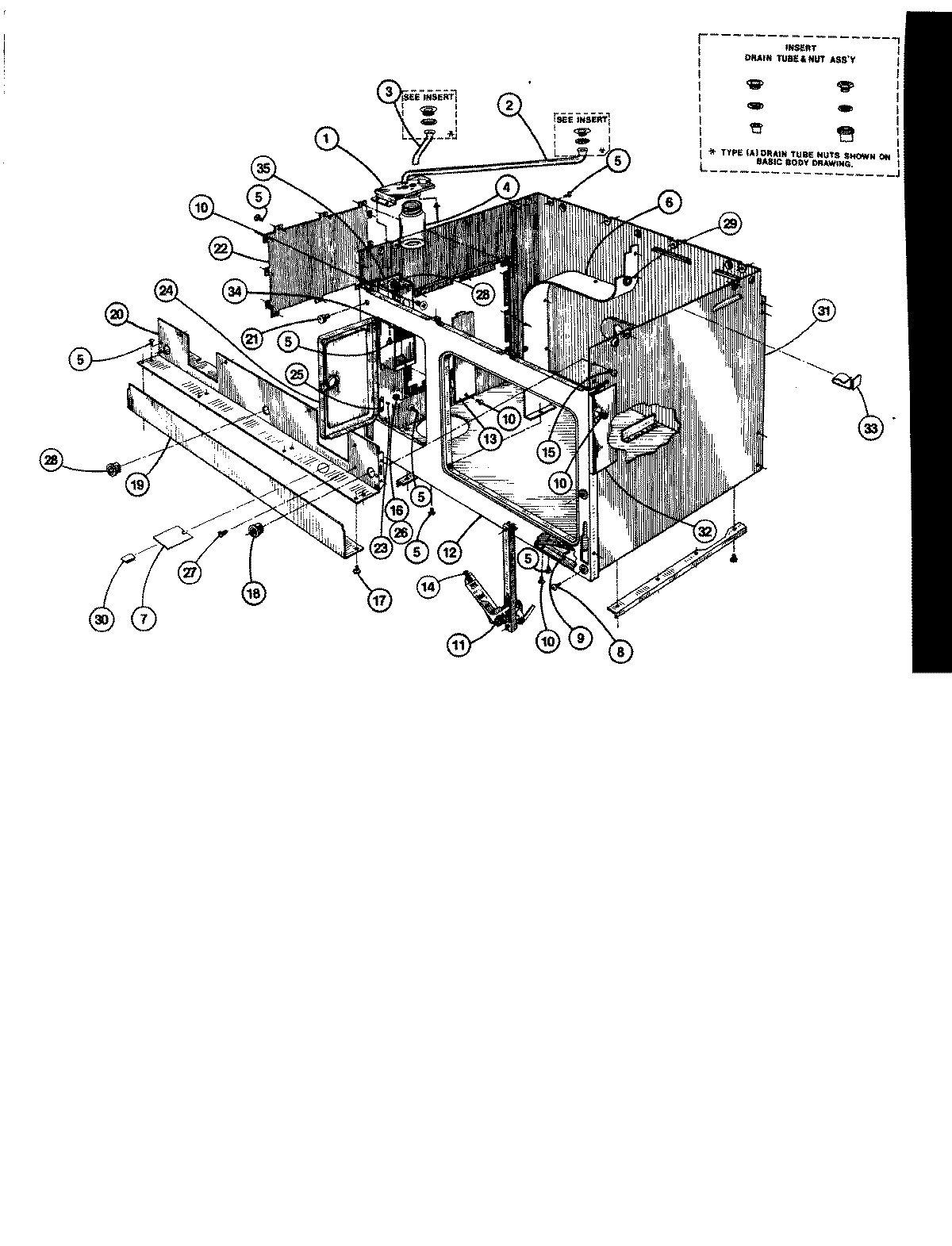

4760 01 – BASIC BODY

Products

Position	Product
1	JAR LID BRACKET ASSEMBLY
2	DRAIN TUBE ASSEMBLY
3	DRAIN TUBE (LEFT)
3	DRAIN TUBE NUT
3	O-RING
4	WPY707869 Whirlpool Drain Jar
5	SCREW
6	DIVIDER WALL
7	COVER
8	SCREW
9	FRONT SUPPORT
10	WP90767 Whirlpool Screw
11	NEW HINGE
12	FRONT CLOSURE
13	BOX COVER
14	SCREW 8A
15	SCREW
16	CATCH, DOOR
18	BUSHING
19	FEATURE PANEL ASSEMBLY
20	NO LONGER AVAILABLE
21	BUMPER, BUTTON
22	MOTOR ACCESS COVER
23	SCREW
24	NO LONGER AVAILABLE
25	TINNERMAN
26	NUT
27	WP71001171 Whirlpool Screw
28	BUSHING
29	GROMMET
30	J TINNERMAN
31	UNIT WRAP
31	SUPPORT RAIL
31	SCREW
32	SIDE TRIM
35	WIRING GROMMET
36	SUPPORT RAIL
