4760 04 – OVEN

Products

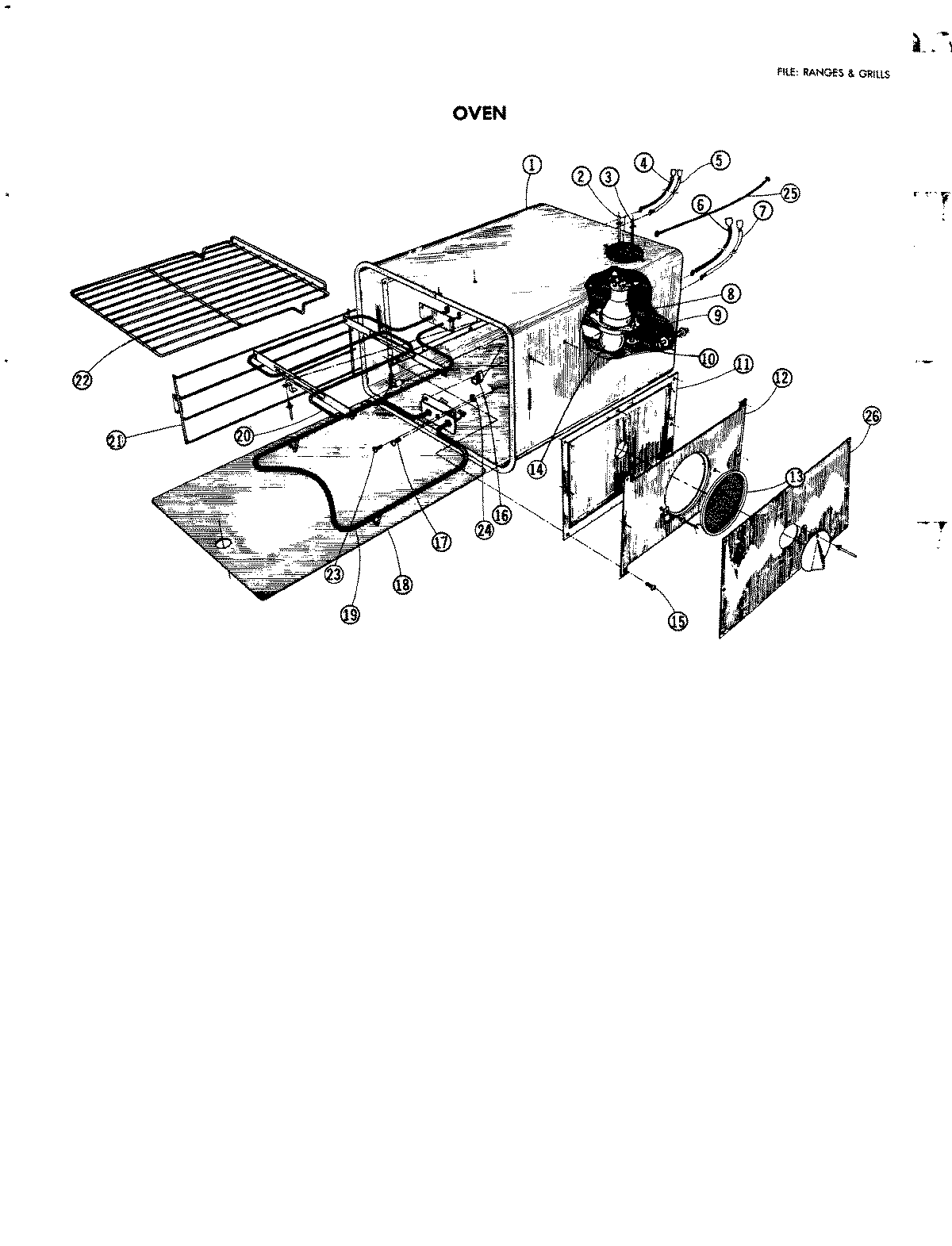

PositionProduct
1NUT, TEE
1SPACER
1OVEN ASSEMBLY
1OVEN BOLT
1SUPPORT BRACKET
2WIRE, WHITE
3WIRE, BLACK
4WIRE, RED
5WIRE, YELLOW
6WIRE, BROWN
7WIRE, BLUE
8RECEPTACLE, LIGHT
97101P345-60 Whirlpool M Screw Assembly
10WASHER
10BRACKET
11BLOWER HOUSING ASSEMBLY
11SPLITTER
12WP210720 Whirlpool Rivet
12CONTROL PANEL ASSEMBLY
12WASHER (TEFLON)
12FILTER RETAINER CLIP
13CONVECTIVE FILTER
14RANGE ONLY 40W 120V APPL BULB
15SCREW
16WP7112P004-60 Whirlpool Thermal Clip
17WP179051 Whirlpool Screw
18OVEN BOTTOM
19WP715269 Whirlpool Bake Element
20ELEMENT, BROIL
21RACK SUPPORT
22OVEN RACK
23SCREW
24M0282005 Whirlpool Nut
25WIRE, GREEN
26INSULATION WRAP
26INSULATION BACK
