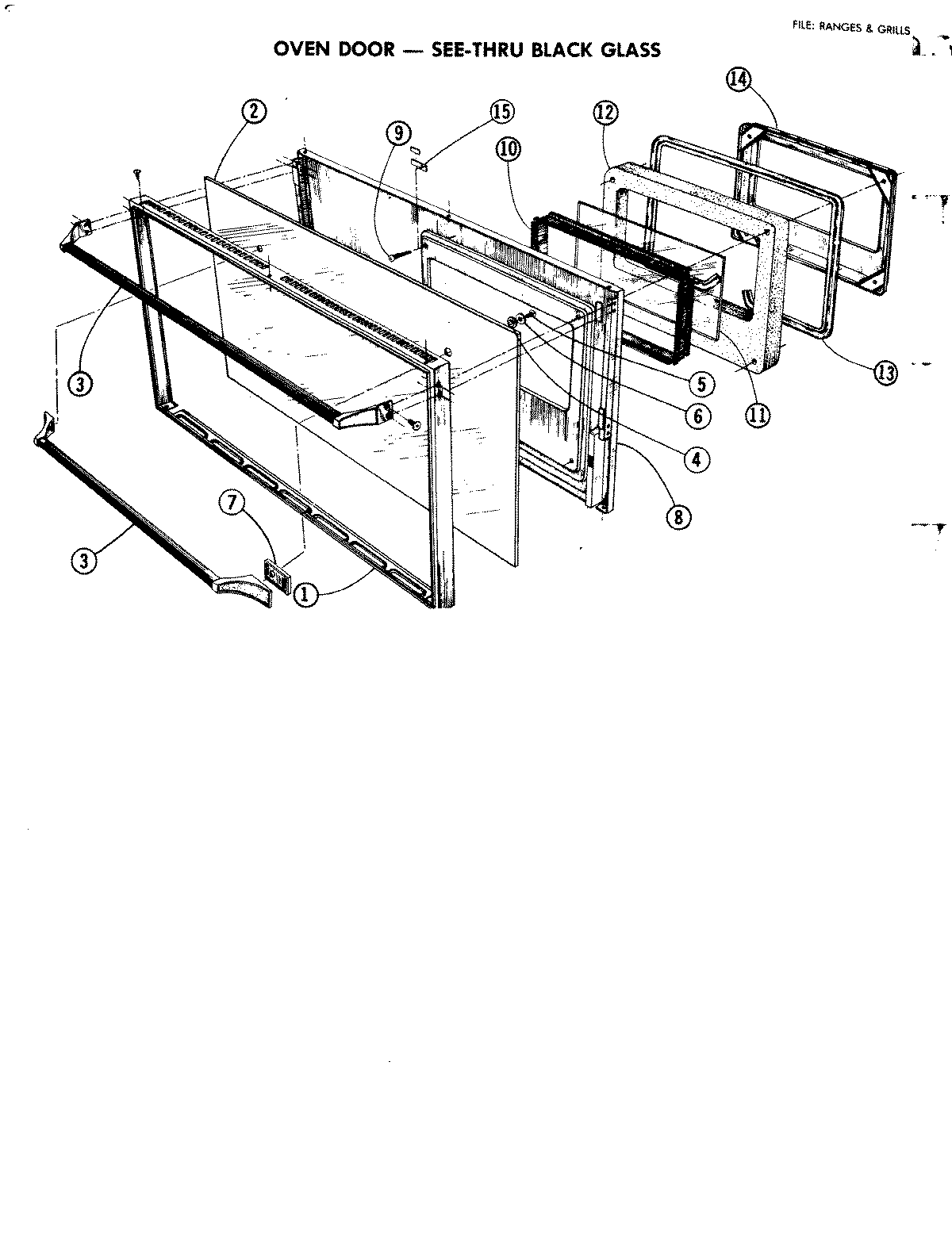

4760 05 – OVEN DOOR (SEE THRU BLACK GLASS)

Written by

Products

Position	Product
1	SCREW
1	FRAME, OVEN DOOR
1	SCREW
2	OUTER GLASS
3	DOOR HANDLE
7	NOT REQUIRED PART OR SEE NOTE
8	PAD, SPACER
8	OVEN DOOR LINER
9	SCREW
10	GLASS SPACER
11	INNER GLASS
12	DOOR INSULATION KIT
13	OVEN DOOR SEAL
14	WP486255 Whirlpool Air Conditioner Nut
15	BRACKET
